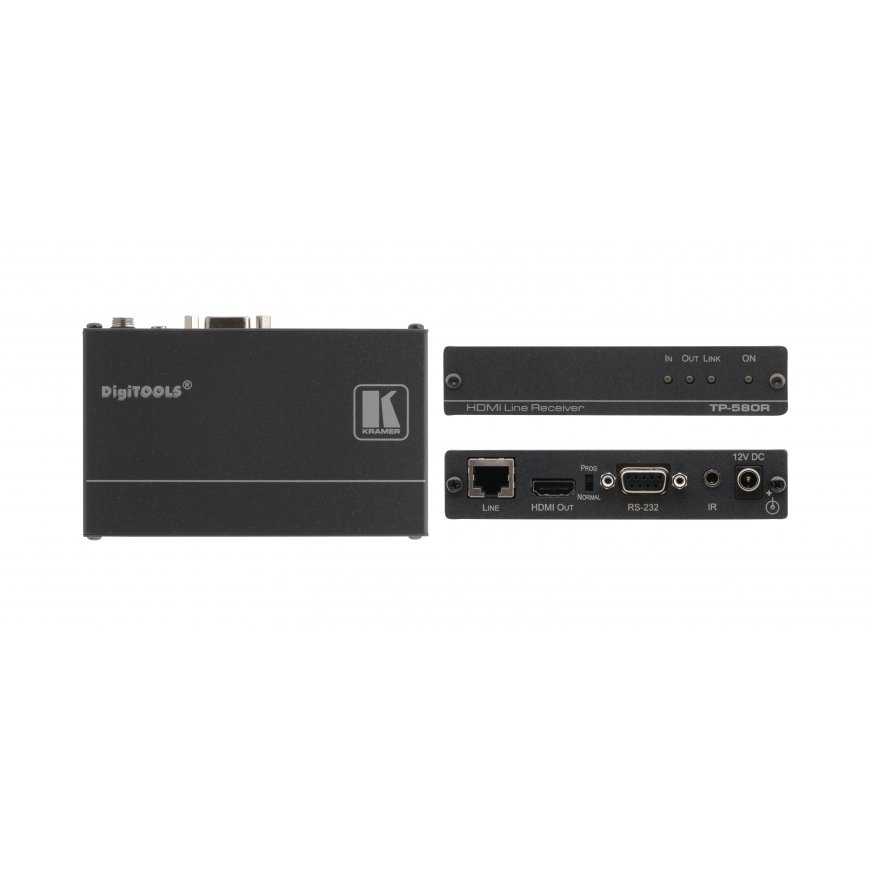

Kramer Electronics TP-580R AV receiver Black
262.27 €
Monthly payment from 7,65 €
3306185 50-80022090
7291063051693
Goods will arrive at the Tallinn warehouse on 22.09.26
You are interested in this product?
All about the product
The TP−580R is a high−performance, HDBaseT twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. The TP−580R receives an HDBaseT twisted pair signal from the TP−580T and converts it back into HDMI, RS−232 and IR signals.- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT™ Technology.
- HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K & 4K Support.
- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
- System Range - Up to 70m (230ft).
- Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
- Indicators - Status LEDs for input, output, link and power.
- Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
Outputs | |
| Number of HDMI outputs | 1 |
Ports & interfaces | |
| DC-in jack | Yes |
Technical details | |
| Product colour | Black |
| Audio input | 1 |
| Type | AV receiver |
Power | |
| AC input voltage | 12 V |
Weight & dimensions | |
| Weight | 600 g |
Other features | |
| Dimensions (WxDxH) | 188 x 114 x 24 mm |
| Audio system | Multichannel |
Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
