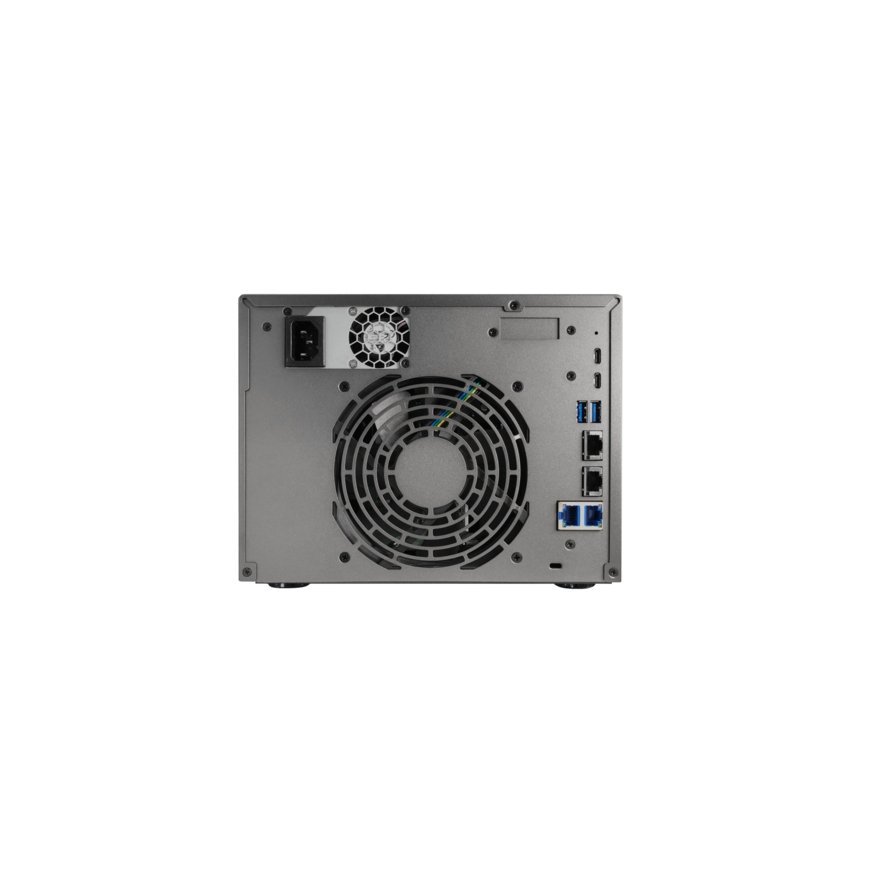

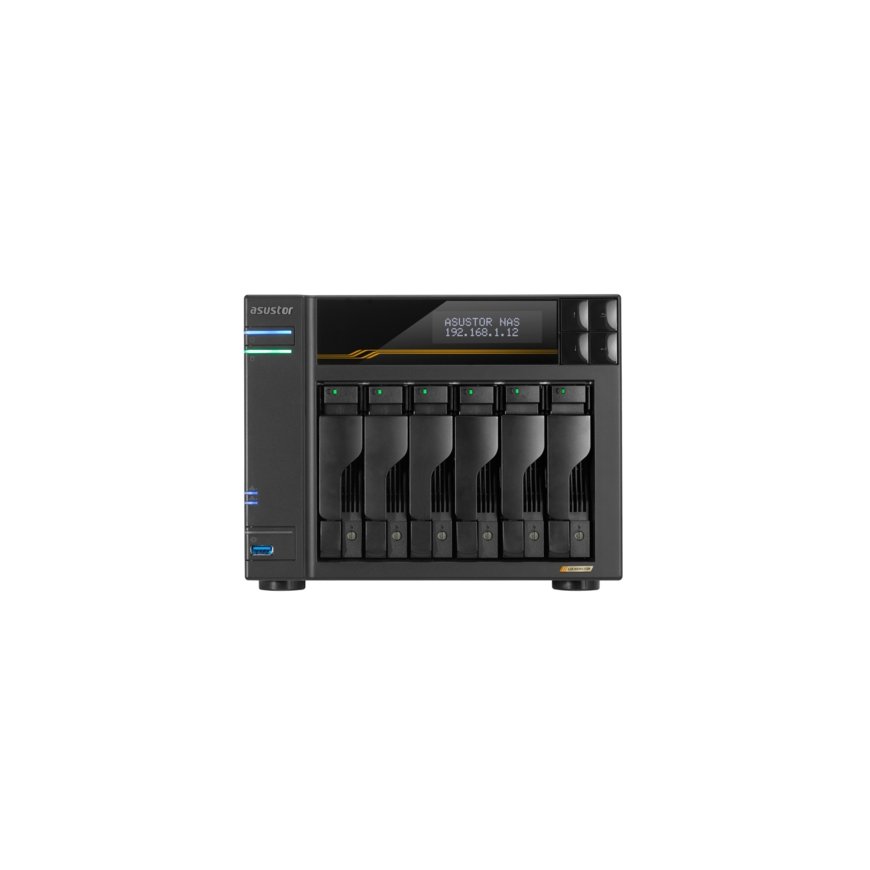

Asustor LOCKERSTOR 6 Gen3 (AS6806T) NAS Desktop AMD Ryzen V3C14 16 GB DDR5 ADM Black
2 099,00 €
1 899.00 €
Monthly payment from 49,80 €
3284312 AS6806T
4710474831562
Shipping 13-14 b.d.
You are interested in this product?
All about the product
Speeds keep Ryzen and Ryzen!The Lockerstor Gen3 series is ASUSTOR’s fastest NAS ever! The combination of AMD’s Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.
Ryzen Up to the Challenge!
AMD’s Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.
Server-grade ECC memory
ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.
PCI Express 4.0 Brings Doubled Performance
The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs. These newly upgraded M.2 slots now support the PCI Express 4.0 bus which doubles the performance over PCI Express 3.0. ADM supports both caching and storage for faster random I/O performance done your way.
USB4 is More Than Just Storage
The Lockerstor Gen3 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever.
When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.
The Hottest NAS Ever is also the Coolest
With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.
Features
| Operating system installed | ADM |
| Product colour | Black |
| Display type | LCD |
| Processor frequency | 2.3 GHz |
| Processor family | AMD Ryzen |
| Processor model | V3C14 |
| Processor cores | 4 |
| USB port | Yes |
| Weight | 4.4 kg |
| Width | 233 mm |
| Depth | 230 mm |
| Height | 185.5 mm |
| Type | NAS |
| Internal memory | 16 GB |
| Internal memory type | DDR5 |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Cooling type | Active |
| Windows operating systems supported | Windows 10; Windows 11 |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 100; 1000; 2500; 10000 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 45 W |
| Built-in display | Yes |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Noise level | 18.1 dB |
| Number of storage drives supported | 6 |
| Operating system version | 5.0 Onwards |
| Supported network protocols | CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| Linux operating systems supported | Yes |
| Flash memory | 8000 MB |
| Processor manufacturer | AMD |
| Processor boost frequency | 3.8 GHz |
| Memory slots | 2 |
| Chassis type | Desktop |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Storage drive sizes supported | 2.5; 3.5; M.2 |
| Supported storage drive types | HDD & SSD |
| Web-based management | Yes |
| Jumbo frames support | Yes |
| Access Control List (ACL) | Yes |
| Dynamic DNS (DDNS) | Yes |
| Power consumption (sleep) | 2.3 W |
| Server operating systems supported | Windows Server 2016; Windows Server 2019; Windows Server 2022 |
| RAID levels | 0; 1; 5; 6; 10 |
| Wake-on-LAN ready | Yes |
| Supported file systems | exFAT; NTFS; ext4; HFS+; BTRFS |
| iSCSI support | Yes |
| RAID support | Yes |
| Storage drive interface | Serial ATA; M.2 |
| Storage drives installed | No |
| Installed storage drive type | No |
| Device class | Home & Home Office |
| Backup function | Yes |
| Power supply location | External |
| Number of M.2 (M & B) slots | 4 |
| Maximum RAM supported | 64 GB |
| Power supply unit (PSU) capacity | 250 W |
