Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat
62.72 €
Monthly payment from 2,52 €
3234435 WL30-265BL1
8717371443900
Shipping 3-7 b.d.
You are interested in this product?
All about the product

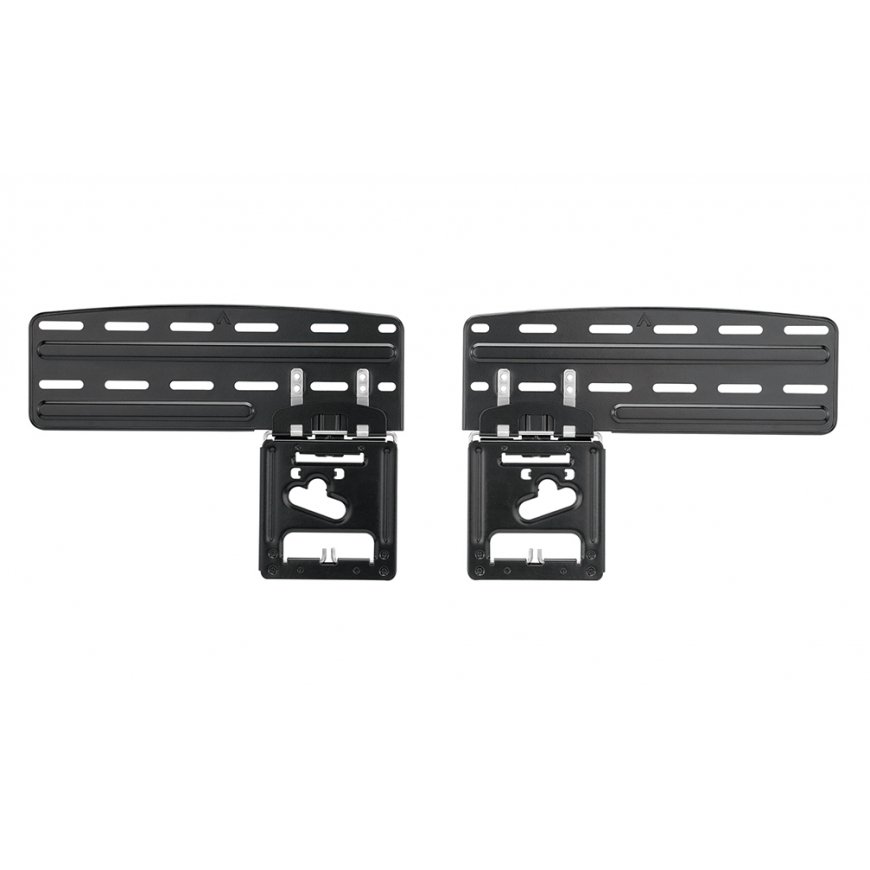

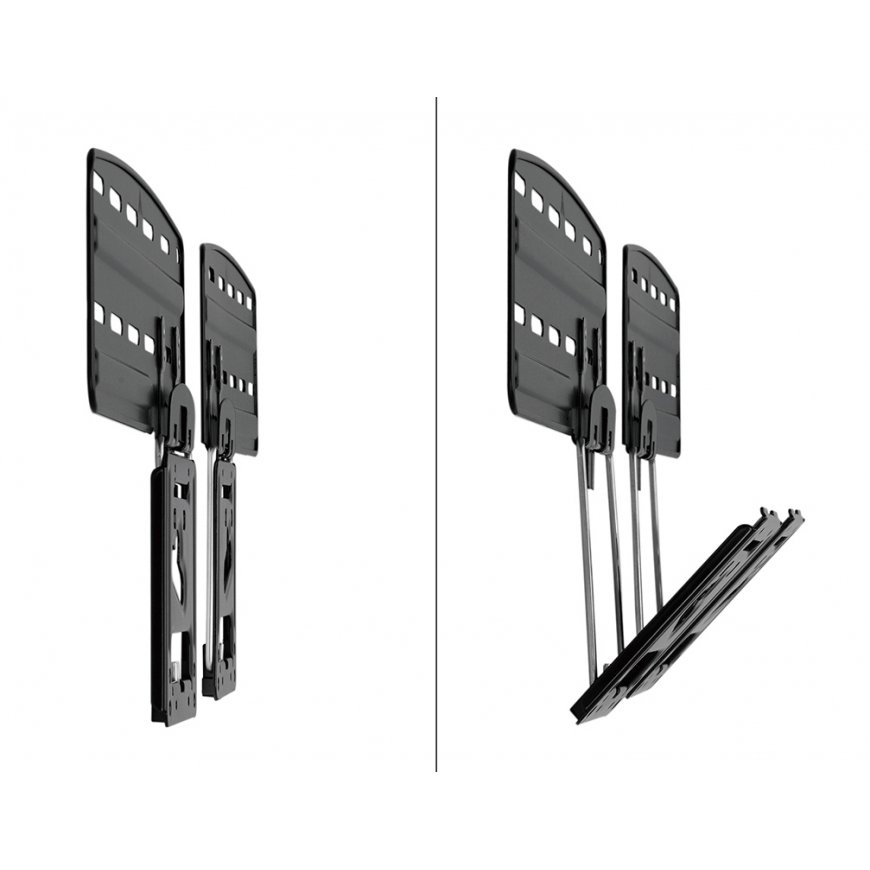

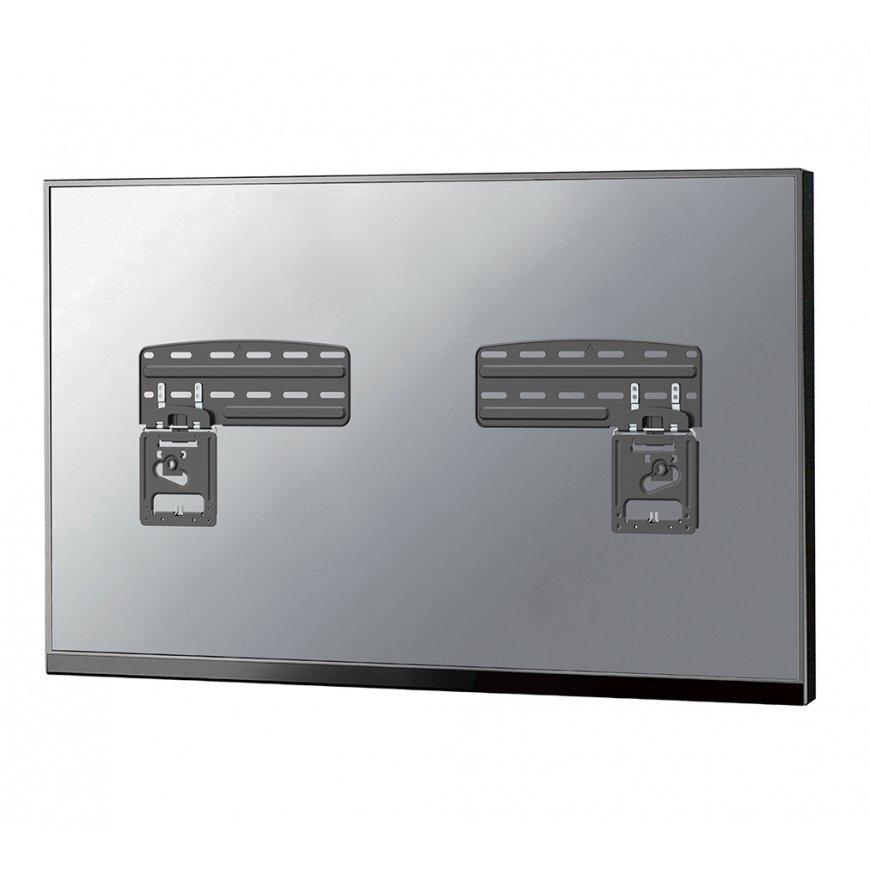

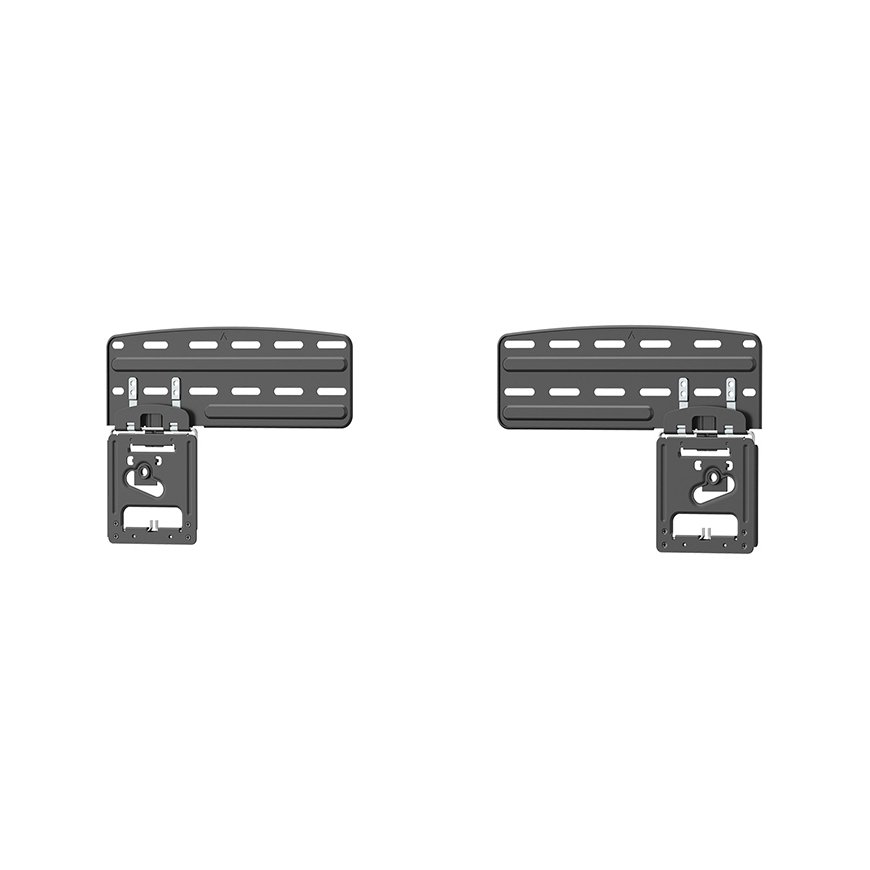

The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.
* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:
2025 Samsung models
- 43-85": QN1EF, QN70F,QN85F, QN84F, QN90F
2024 Samsung models
-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC, QN95D/C, QN90D/C, QN85D/C
2023 Samsung models
-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
-\t50-85": The Frame (2021-2023)
2022 Samsung models
-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B
2021 Samsung models
-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
NOT compatible with Samsung models
-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C
-\tCrystal UHD CU7000
For detailed compatibility, please refer to the online manual.
Features | |
| Maximum weight capacity | 60 kg |
| Panel mounting interface | 200 x 200, 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 600 x 400, 200 x 100, 200 x 300, 200 x 400, 600 x 200, 600 x 300, 800 x 400, 800 x 600, 1000 x 600, 700 x 400, 300 x 100, 400 x 600, 600 x 600, 800 x 800, 440 x 400, 1000 x 400, 1000 x 800, 900 x 600, 350 x 350, 500 x 400, 500 x 500, 600 x 500, 300 x 900, 460 x 640, 800 x 450, 800 x 500, 680 x 300, 800 x 200, 200 x 150, 1200 x 600, 1000 x 700, 1200 x 800, 1400 x 800, 1600 x 600, 1500 x 900, 1200 x 900, 1500 x 600, 150 x 200 |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.16 m (85") |
| Number of displays supported | 1 |
| Minimum VESA mount | 150 x 100 mm |
| Maximum VESA mount | 1200 x 800 mm |
| Mounting type | Wall |
| Cable management | No |
| Product colour | Black |
| Housing material | Steel |
| Compatible products | - 43-85": Crystal UHD Signage Displays QMC, QBC, QHC , 2023 Samsung , - 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000 , - 50-85": The Frame (2021-2023), 2022 Samsung , - 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B , 2021 Samsung , - 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000) |
Mounting | |
| Maximum weight capacity (per display) | 60 kg |
Ergonomics | |
| Distance to the wall (max) | 7.5 cm |
| Type | Fixed |
Packaging data | |
| Package weight | 1.6 kg |
| Package depth | 63 mm |
| Package height | 363 mm |
| Package width | 162 mm |
Weight & dimensions | |
| Weight | 1.2 kg |
| Width | 640 mm |
| Depth | 7.5 mm |
| Height | 236 mm |
| Depth (max) | 7.5 mm |
Technical details | |
| Country of origin | China |
| Warranty period | 5 year(s) |
Logistics data | |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 380 mm |
| Master (outer) case gross weight | 16.5 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case net weight | 12 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 243 pc(s) |
