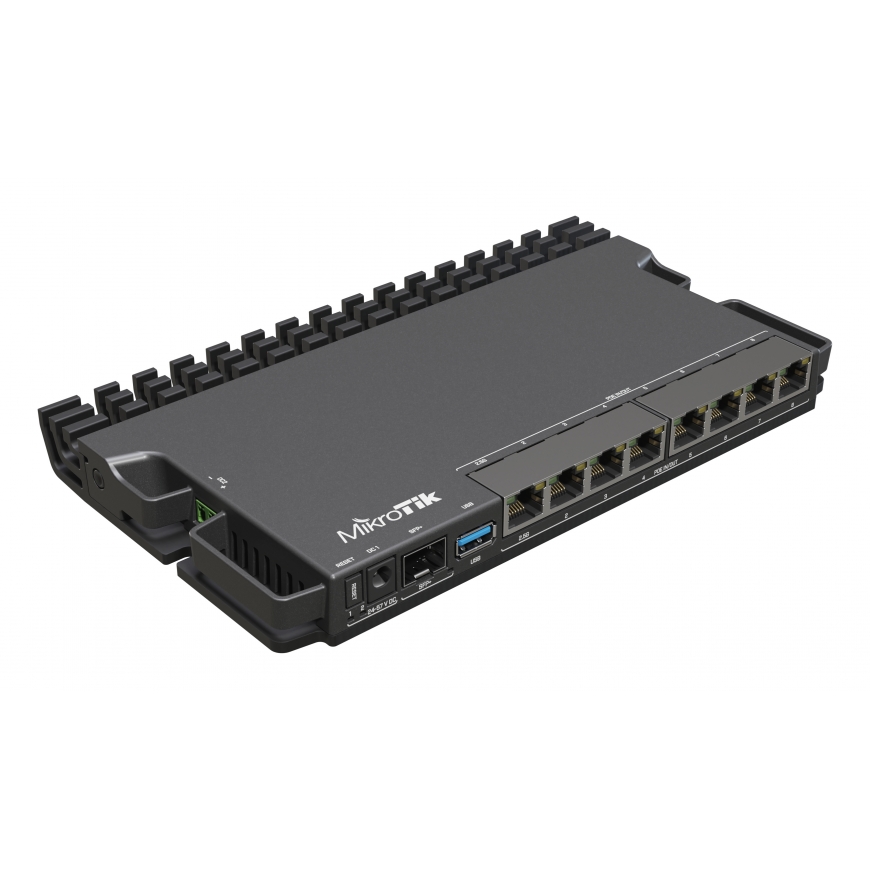

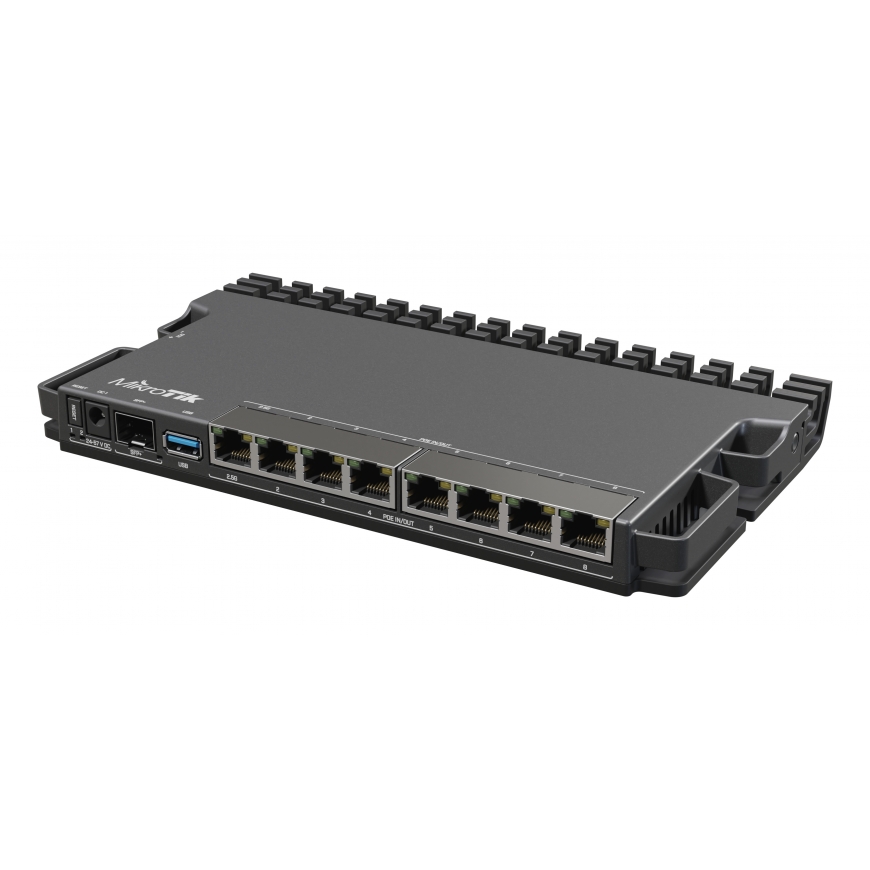

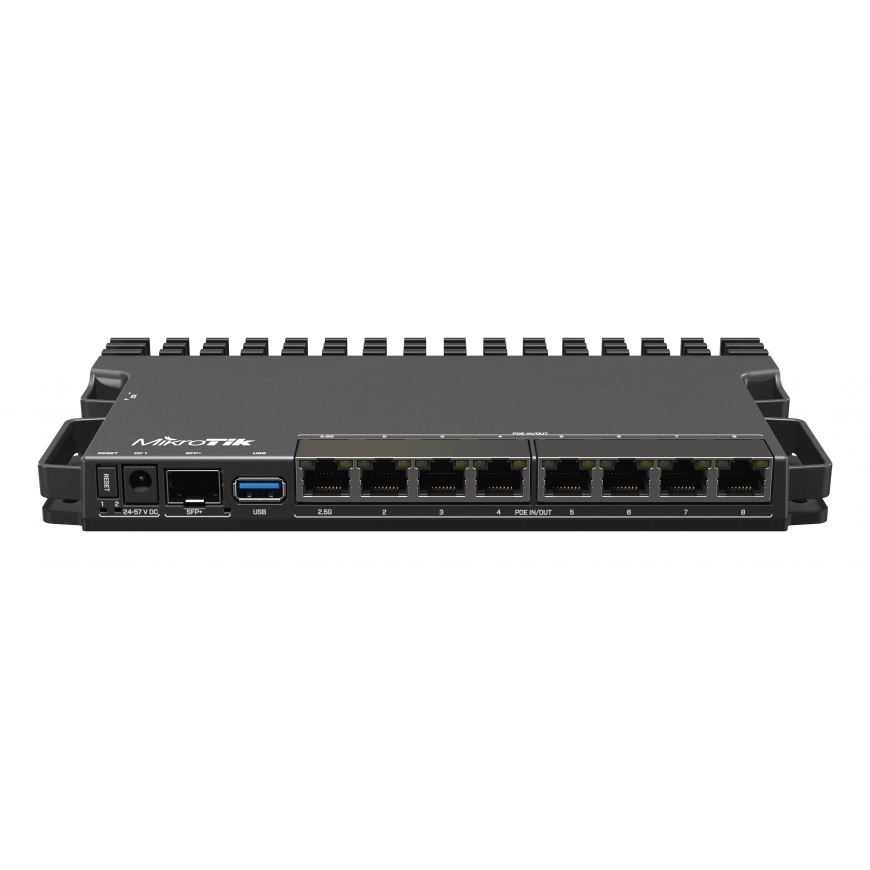

Mikrotik RB5009UG+S+IN wired router 2.5 Gigabit Ethernet Black
193,02 €
Monthly payment from 5.87 €
3210436 RB5009UG+S+IN
1117224007148, 4752224007148
2026-07-13
You are interested in this product?
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
WAN connection | |
| Ethernet WAN | Yes |
Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10, 100, 1000 |
Mobile network | |
| Mobile network generation | Not supported |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design | |
| Product colour | Black |
Features | |
| Mean time between failures (MTBF) | 200000 h |
Power | |
| Power source type | DC |
| Power consumption (typical) | 20 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
Other features | |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Certificates | |
| Certification | CE, EAC, ROHS |
Technical details | |
| Compliance certificates | RoHS |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
