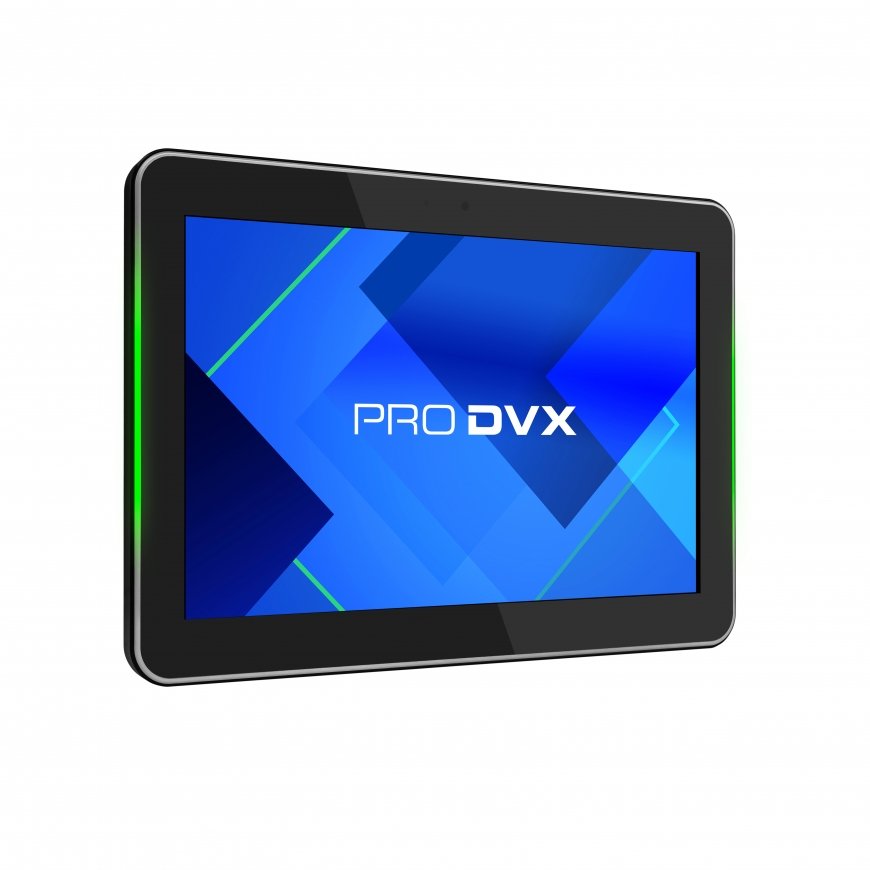

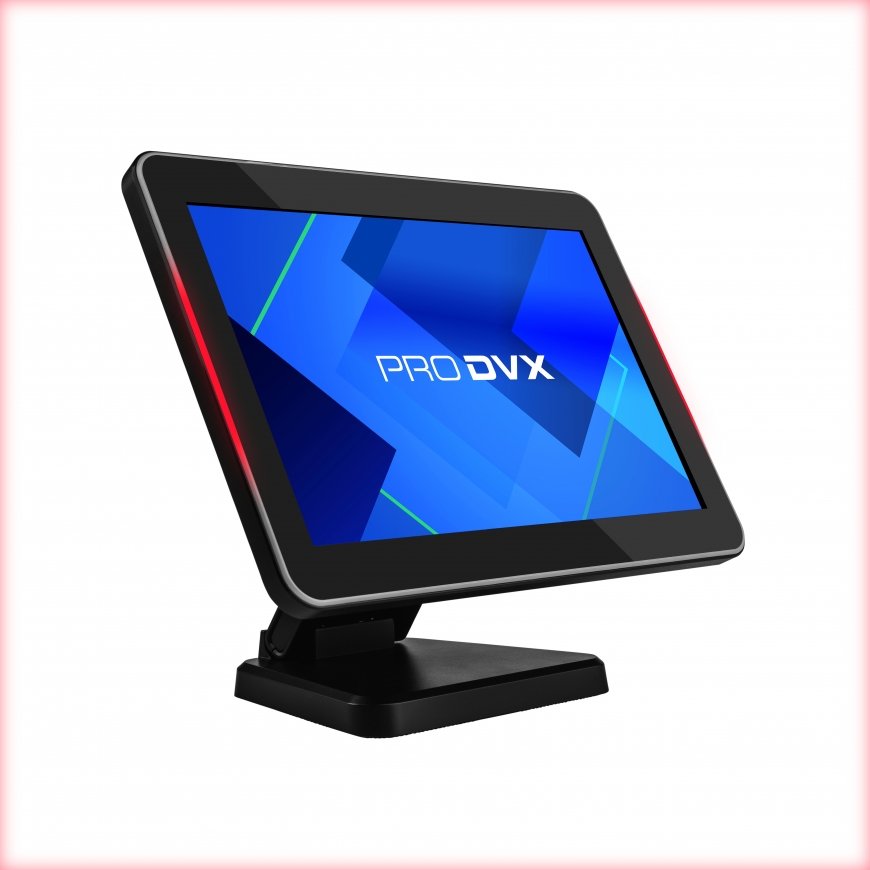

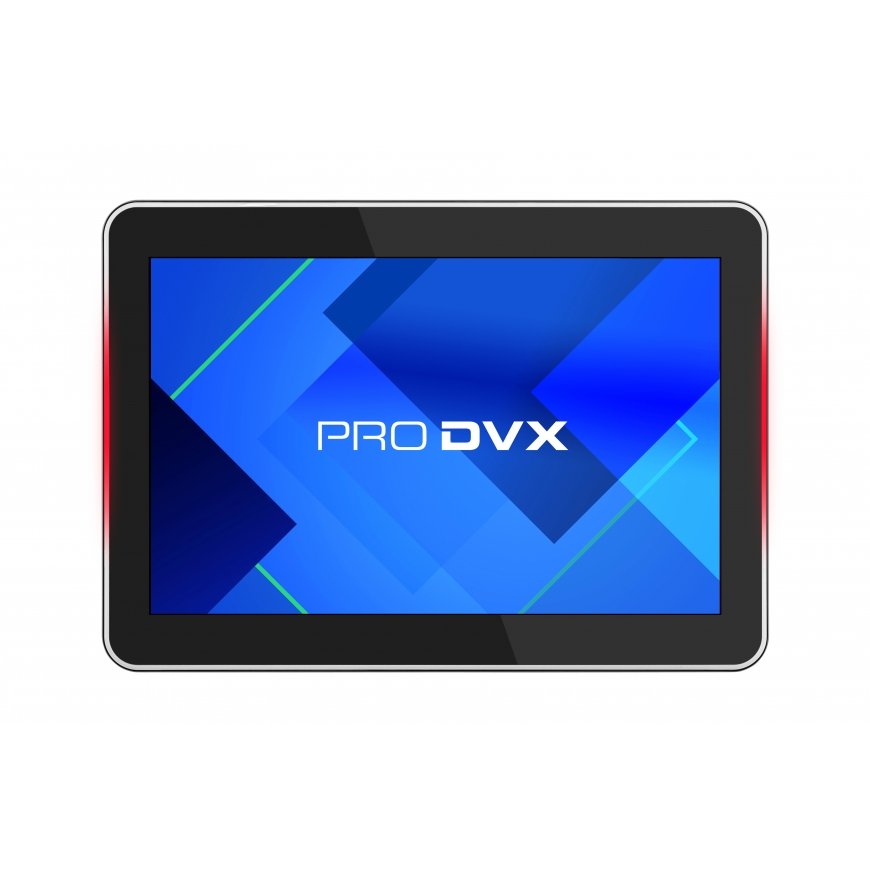

ProDVX APPC-10XPL-R23
629.00 €
Monthly payment from 17,10 €
3204265 5010620
2000001317532
Shipping 3-7 b.d.
You are interested in this product?
All about the product
The APPC-10XPL-R23 is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a 2-sided full RGB LED bar for efficient signalling. The APPC-10XPL-R23 ensures superior performance and next-level user experience.Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the anti-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience.
The APPC-10XPL-R23 is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
Features
| Display diagonal | 25.6 cm (10.1") |
| HD type | HD |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
| Operating system installed | Android 12 |
| Number of speakers | 2 |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Width (without stand) | 255.3 mm |
| Depth (without stand) | 26.7 mm |
| Height (without stand) | 181 mm |
| Touchscreen | Yes |
| Processor frequency | 2 GHz |
| Processor family | Rockchip |
| Processor model | RK3568 |
| Processor cores | 4 |
| Compatible memory cards | SD |
| Wi-Fi standards | 802.11a; 802.11b; 802.11g; Wi-Fi 4 (802.11n); Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Weight | 650 g |
| Cables included | No |
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Backlight | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10; 100; 1000 |
| Card reader integrated | Yes |
| Housing material | ABS synthetics |
| Product type | All-in-One tablet PC |
| Built-in speaker(s) | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Wall mountable | Yes |
| Storage relative humidity (H-H) | 0 - 90% |
| Display brightness | 500 cd/m² |
| Backlight type | Edge LED |
| Anti-glare screen | Yes |
| Processor manufacturer | Rockchip |
| Total storage capacity | 16 GB |
| Storage media | eMMC |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | ARM Mali-G52 2EE MC2 |
| Panel type | IPS |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Built-in camera | No |
| Display surface | Matt |
| HDMI output ports quantity | 1 |
| Audio output | Yes |
| AC adapter output voltage | 12 V |
| Touch technology | Multi-touch |
| Micro-USB ports quantity | 1 |
| Multi-touch | Yes |
| On-board GPU manufacturer | ARM |
| Compliance certificates | CE; RoHS; REACH; Federal Communications Commission (FCC); UKCA |
