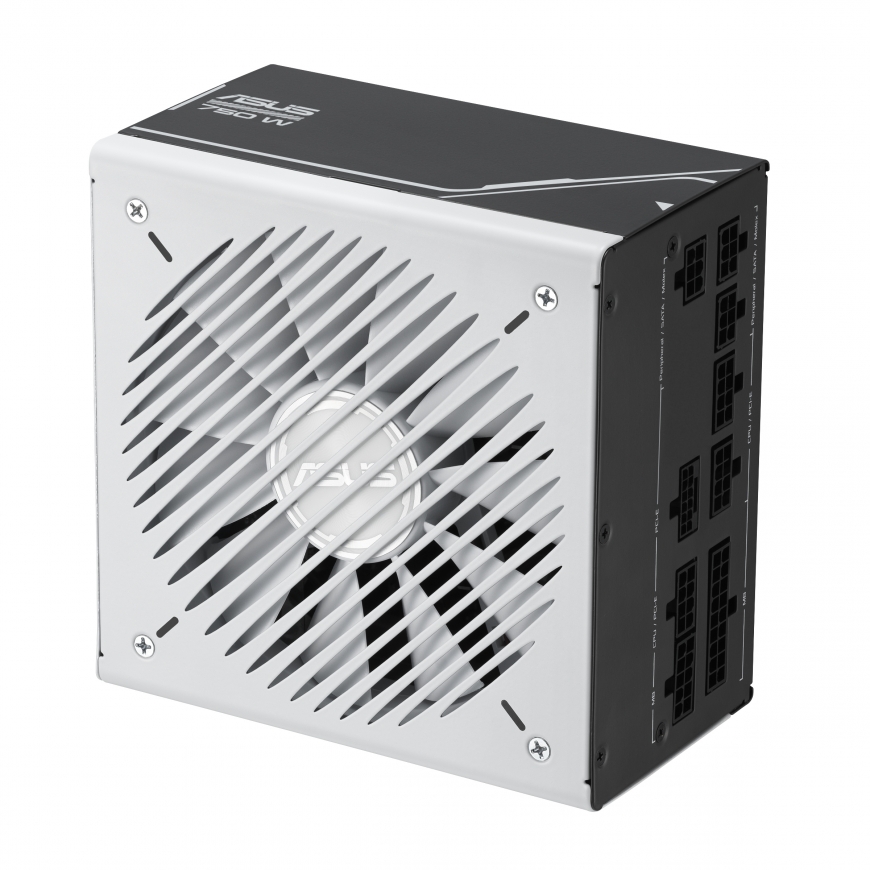

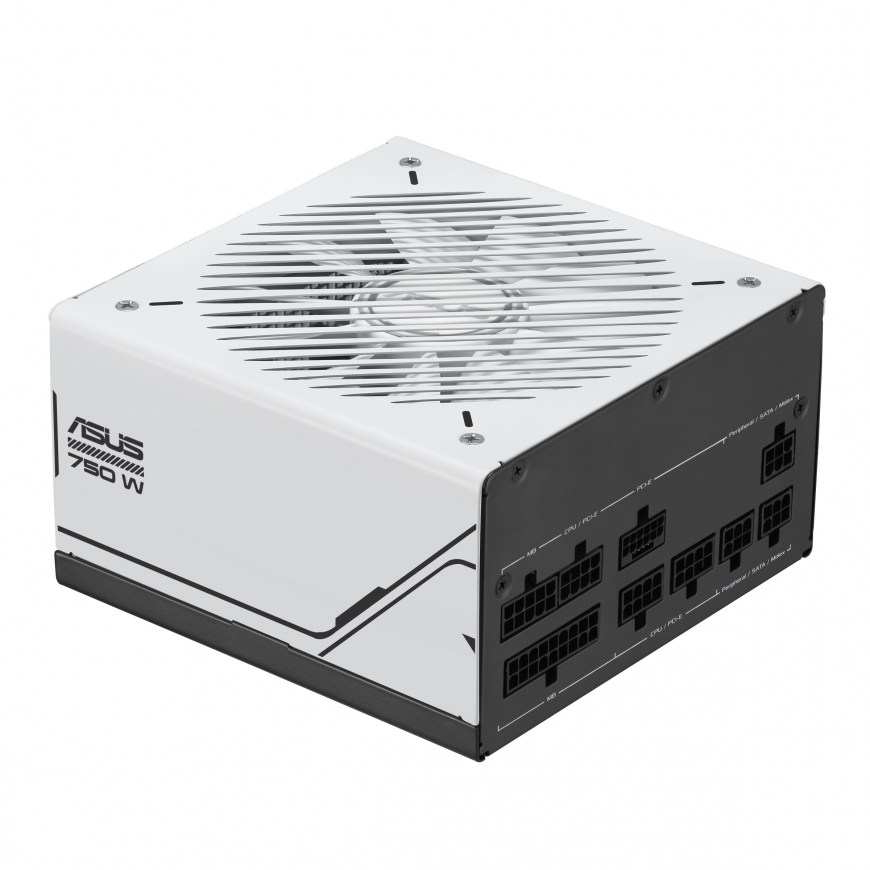

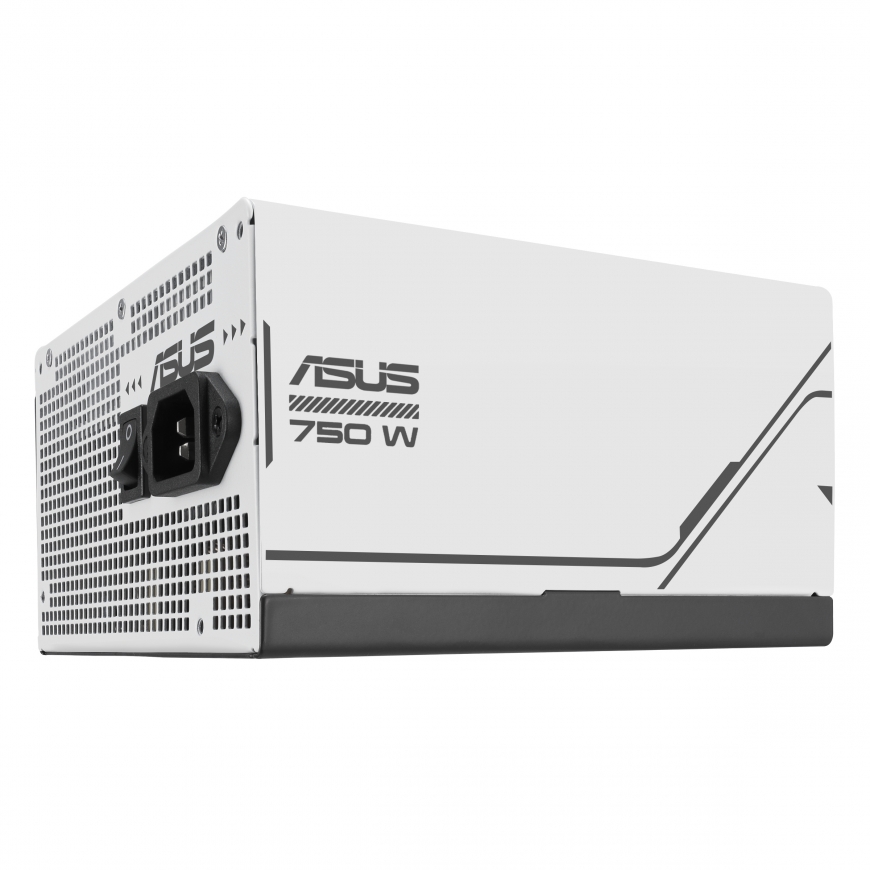

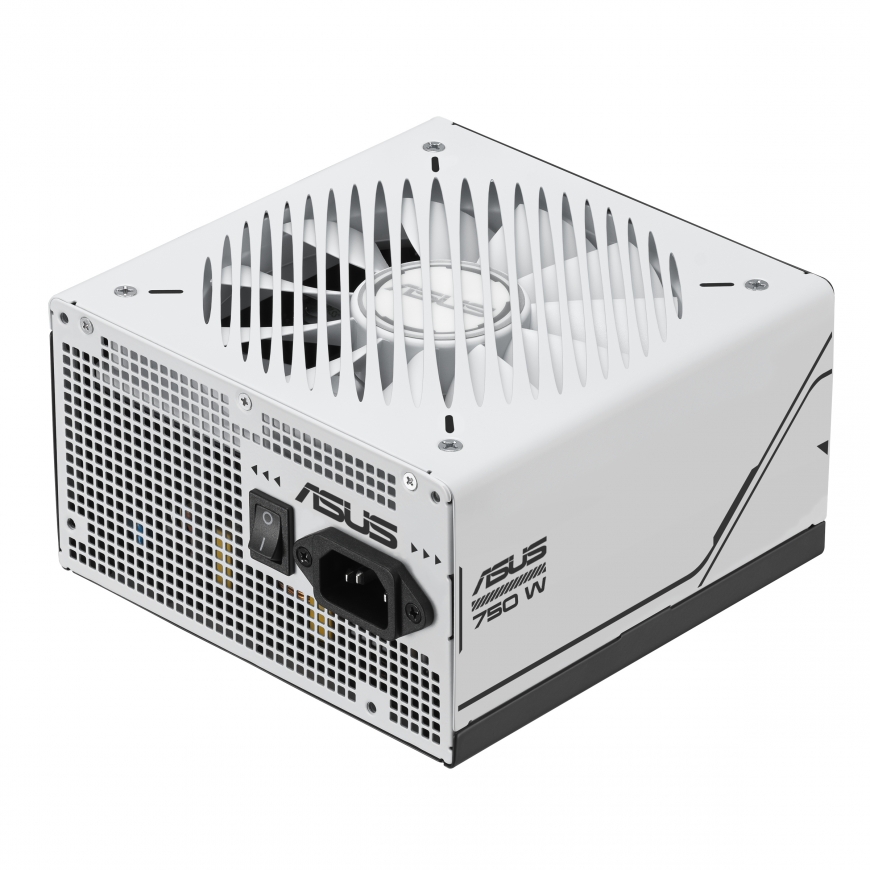

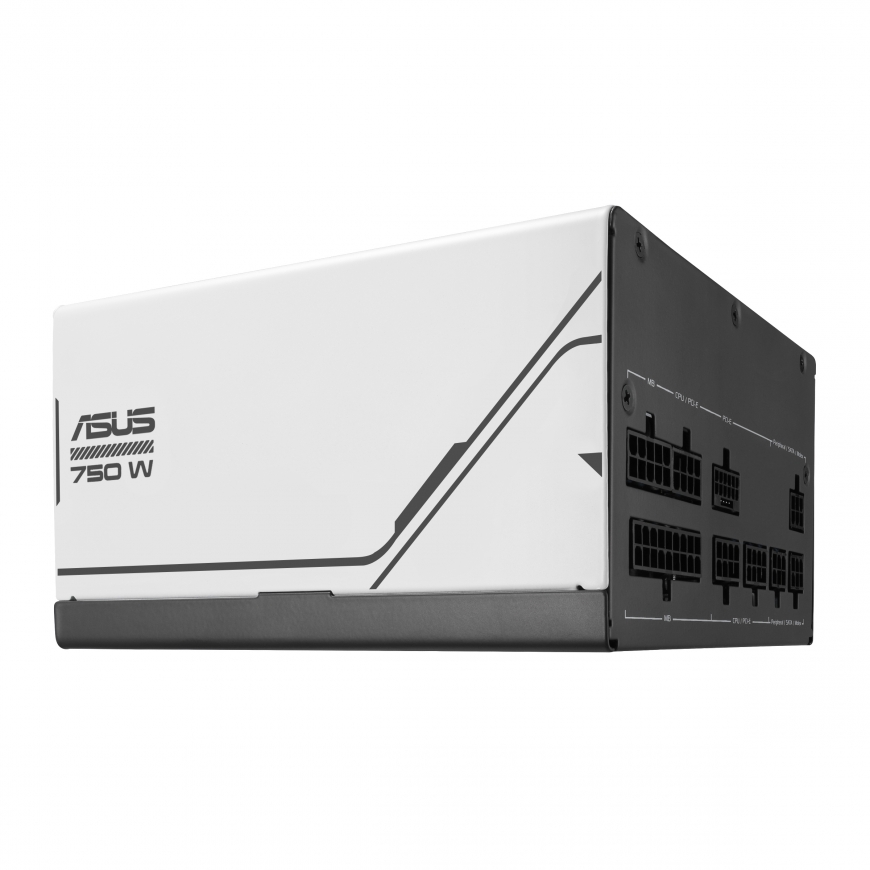

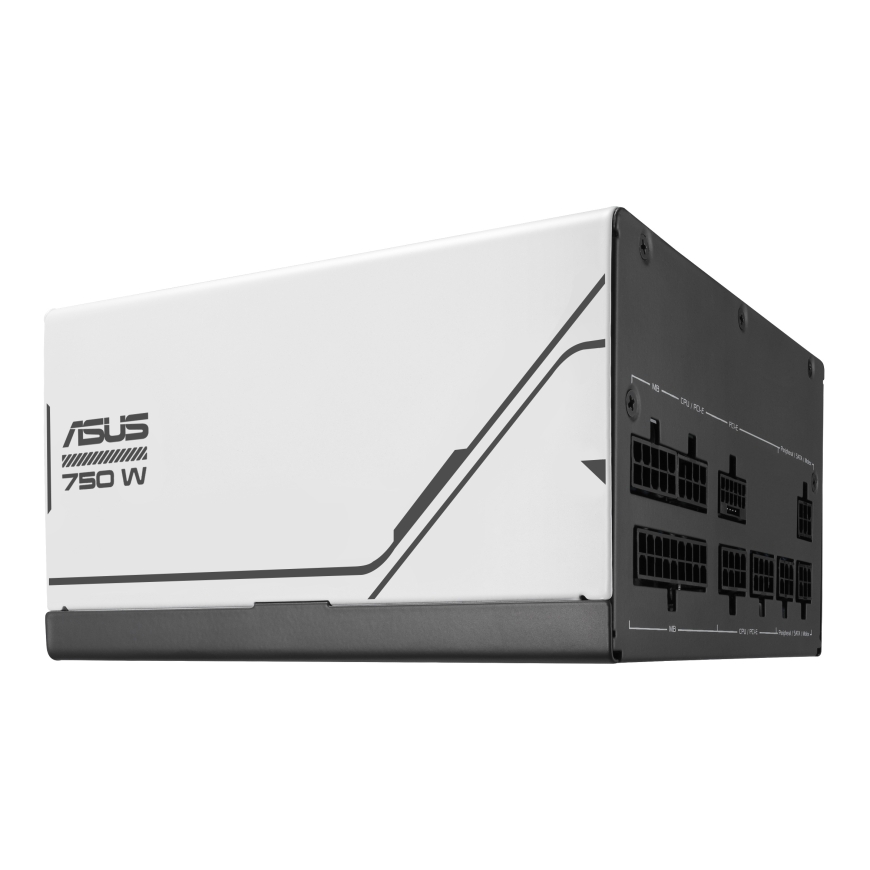

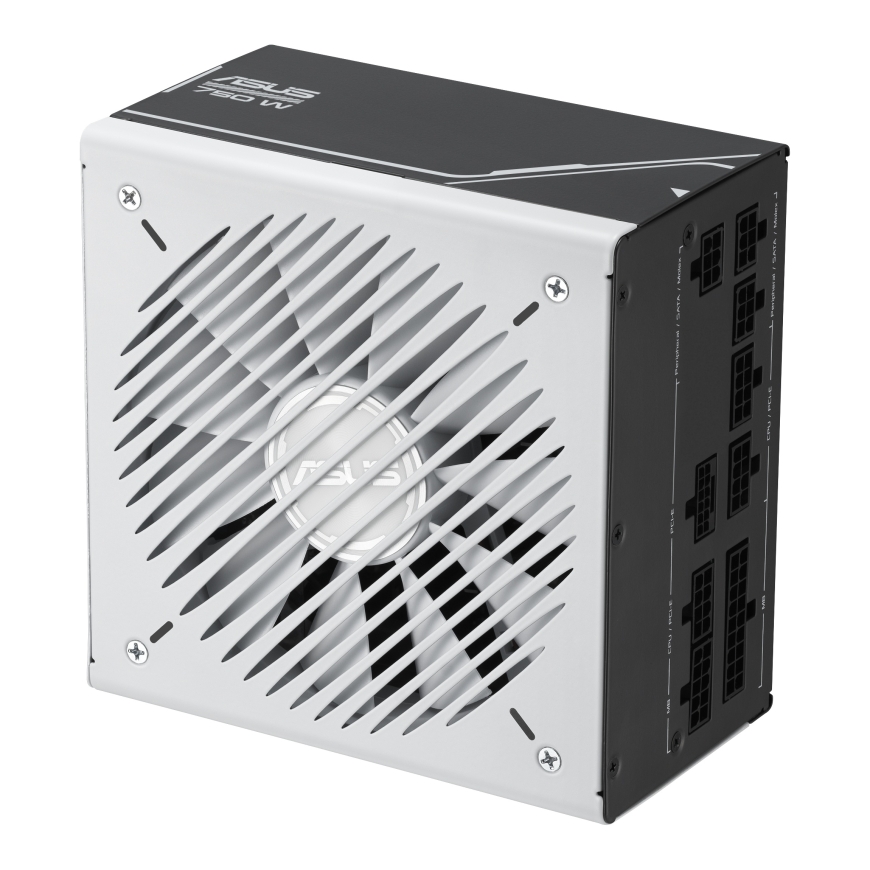

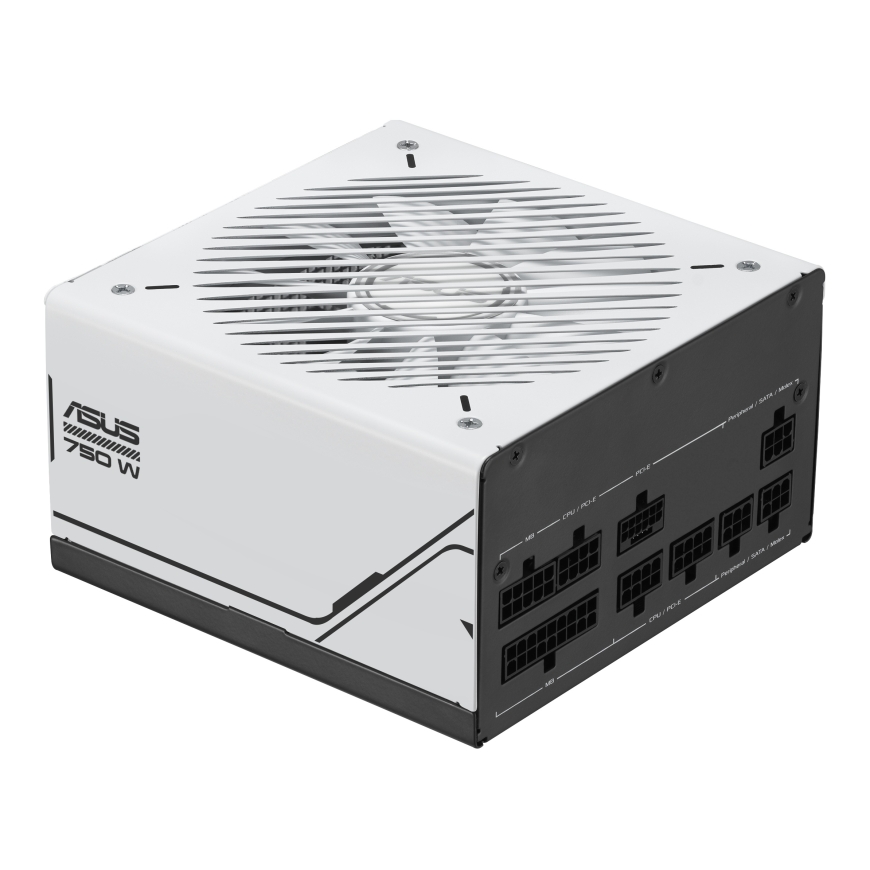

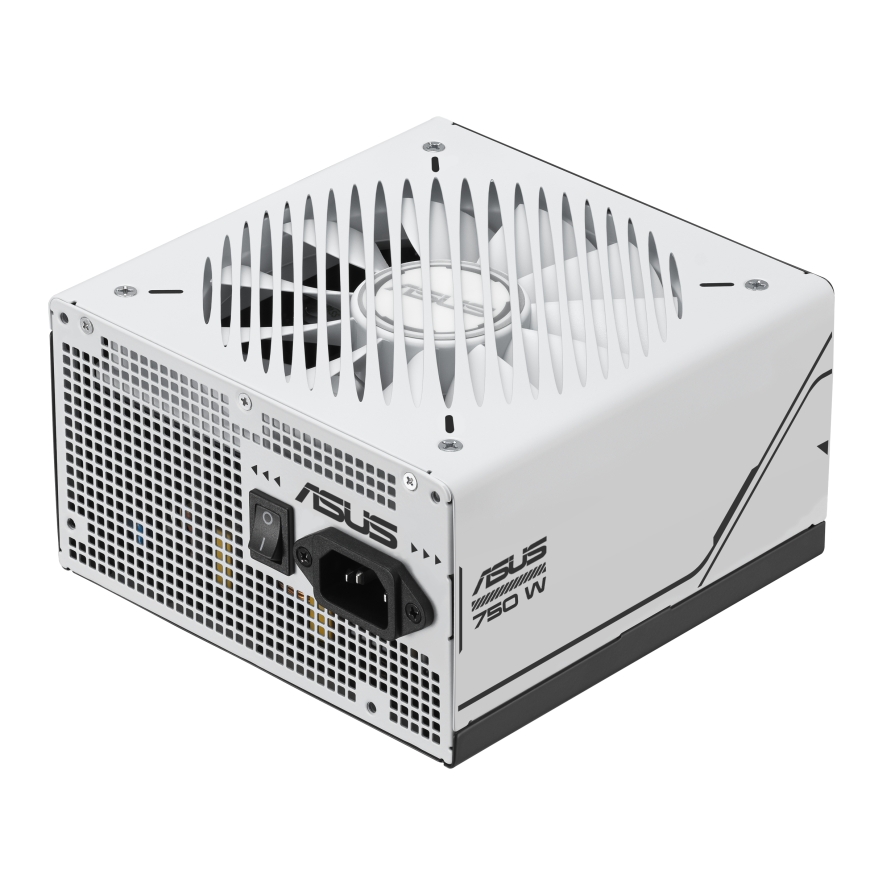

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White
88,99 €
Monthly payment from 3.19 €
3201904 90YE00U1-B0NA00
4711387192962, 0197105192966, 0197105193031
2026-07-16
You are interested in this product?
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Dual Ball Fan Bearings
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.
80 Plus Gold Certification
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Choose Your Style
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
8-year Warranty
We're so sure about the reliability of the ASUS Prime 750W Gold that we back it with an 8-year warranty.
Power | |
| Efficiency | 92% |
| Power protection features | Overload, Over voltage, Overheating, Short circuit, Under voltage, Overcharge |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 120000 h |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Ball bearing |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black, White |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (8-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 400, 120 |
| Peripheral (Molex) power cable length | 400, 150 |
| CPU power cable length | 65 cm |
| PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
| Weight | 1.47 kg |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.88 kg |
| Package type | Box |
| Package height | 144 mm |
| Package width | 346 mm |
| Package depth | 208 mm |
Packaging content | |
| Cables included | AC, SATA, CPU, PCIe, Peripheral (Molex) |
