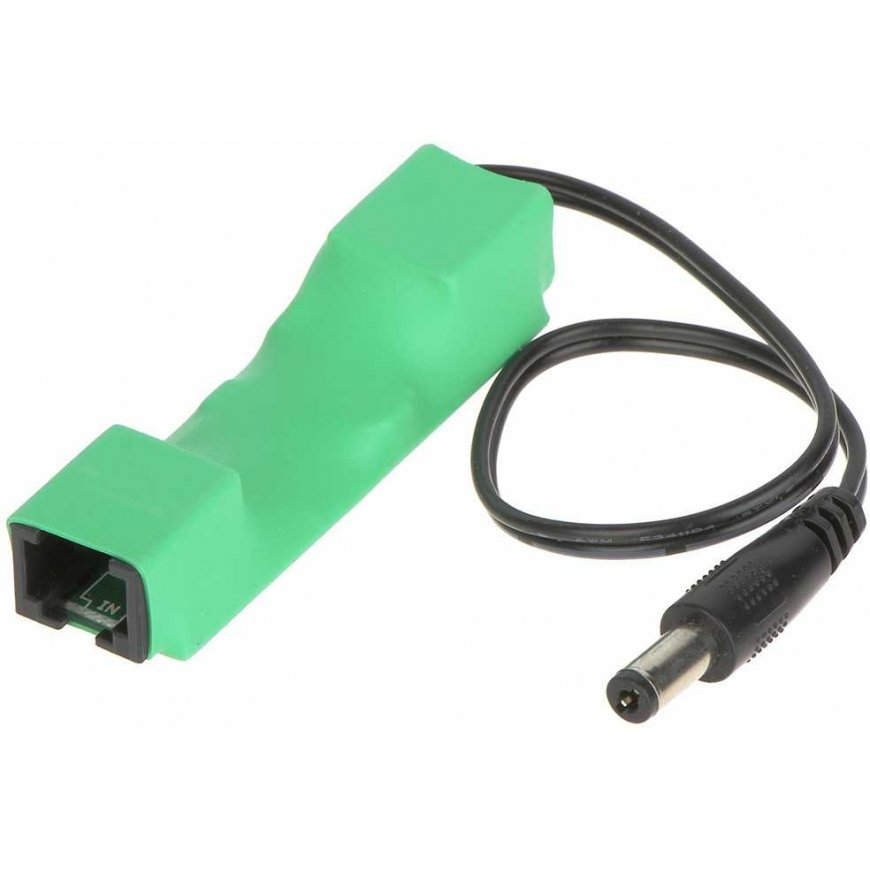

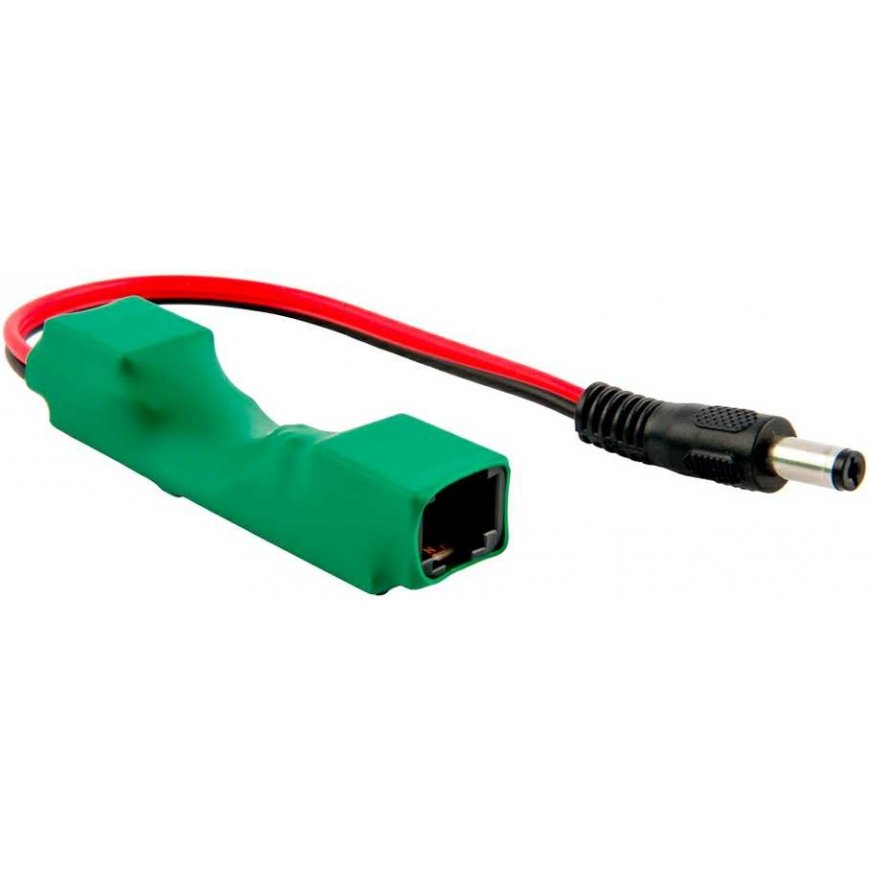

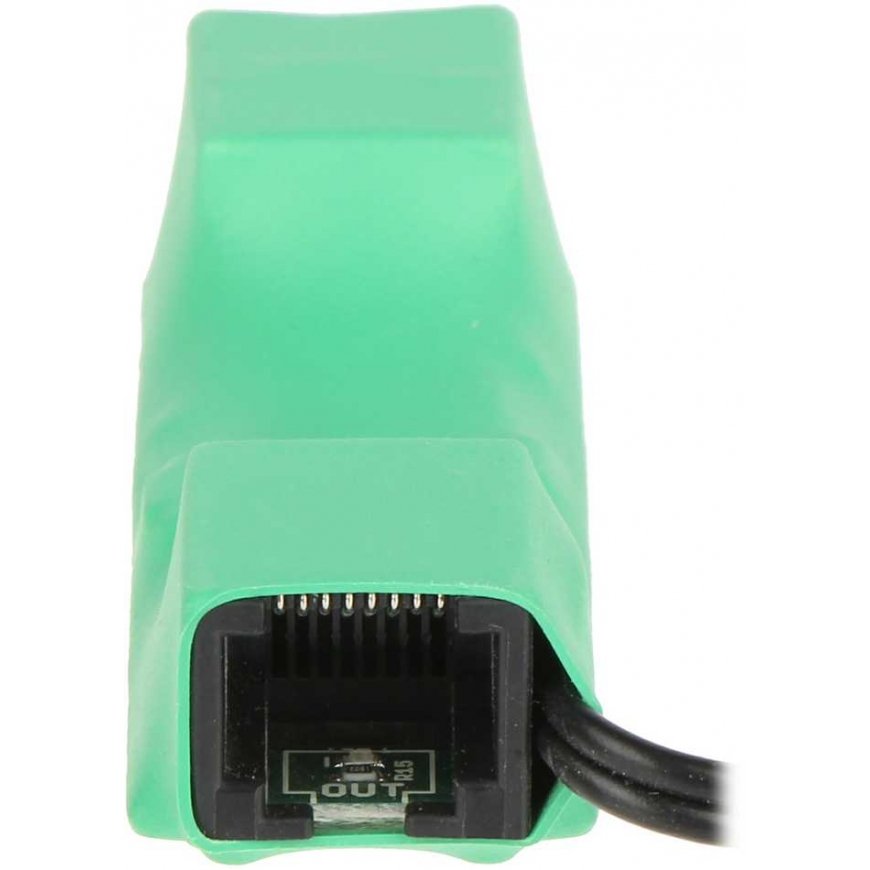

POWER ADAPTER POE ASDC-05-050-HS ATTE
39,00 €
Monthly payment from 1.90 €
3197916 ASDC-05-050-HS
5902143690115
Shipping 1-14 b.d.
You are interested in this product?
The adapter PoE ASDC-05-050-HS is powered from the line PoE 48V and reduces the voltage to 5V at the output 2.1 / 5.5 mm.
The main use of adapters is for IP cameras or other devices that do not have PoE power supply according to the standard.
The device can be powered by PoE 802.3af / PoE 802.3at or PoE PASSIVE switch.
| Output power : | max. 5 W |

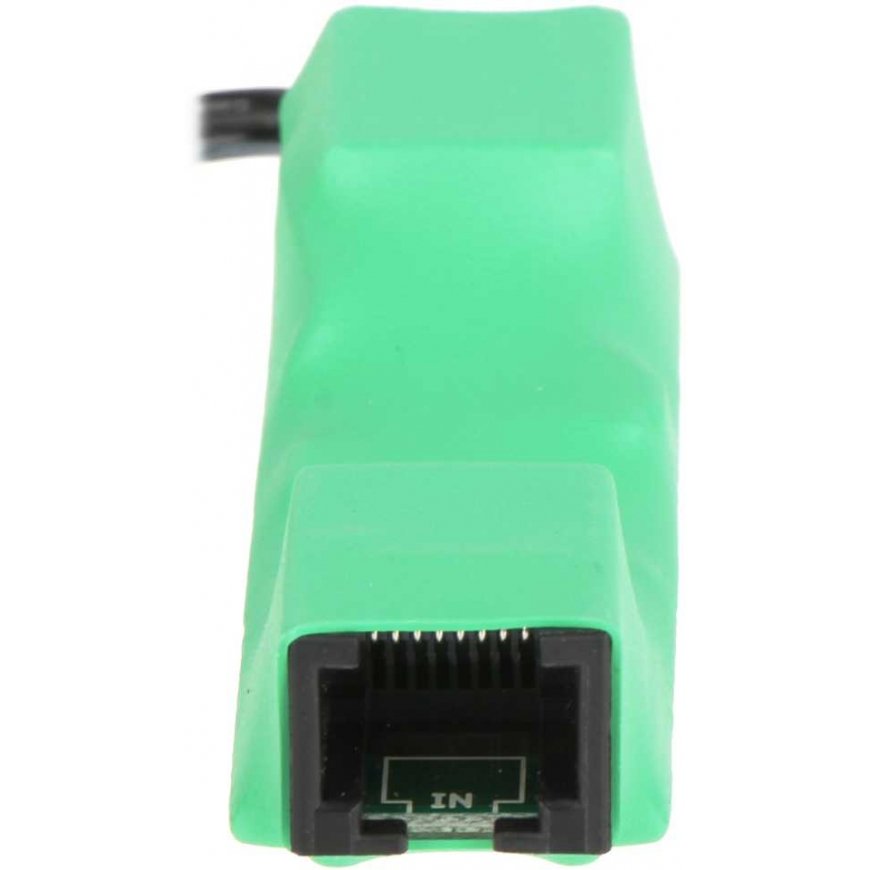

| Number of inputs : | 1 pc. RJ-45 |
| Input voltage : | 35 ... 56 V DC - PoE |

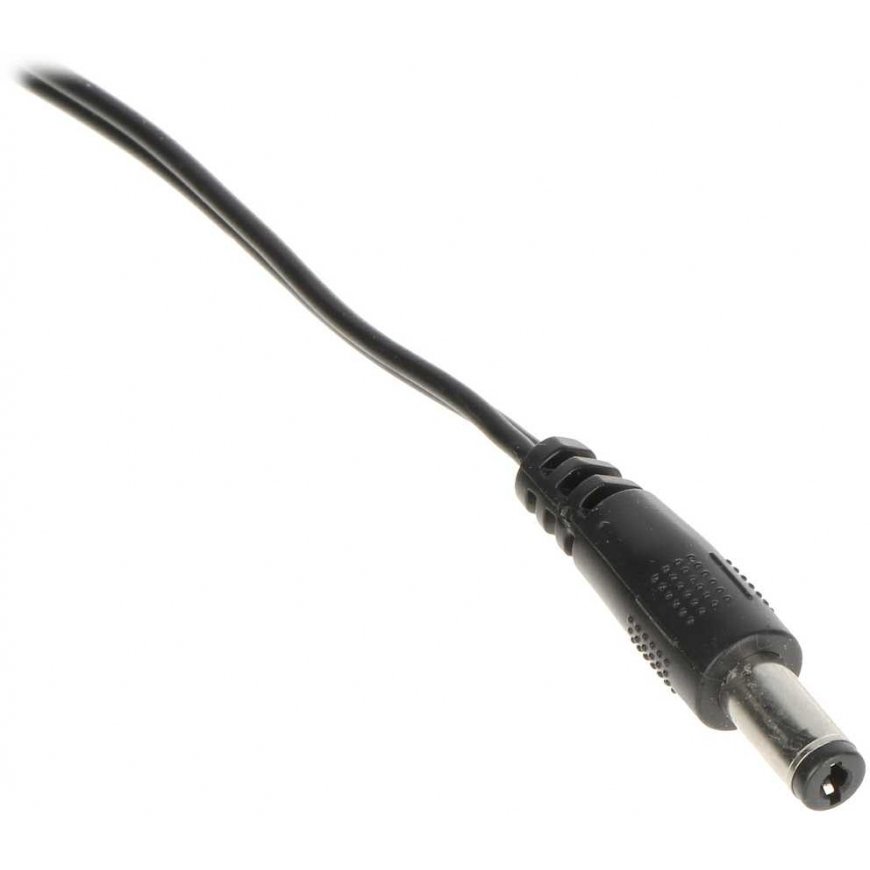

| Output voltage : | 5 V DC - 2.1/5.5 mm plug on the cable |
| Signal diodes : | Signaling of the presence of output voltage |
| Main features : | Output current: 1 A Sealing class : IP20 |
| Protective measures : | - |
| Body : | Plastic |
| Color : | Green |
| Working temperature : | -25 °C ... 50 °C |
| Weight : | 0.02 kg |
| Dimensions : | 75 x 21 x 17 mm |
| Manufacturer / Brand : | ATTE |
| Warranty : | 3 years |
