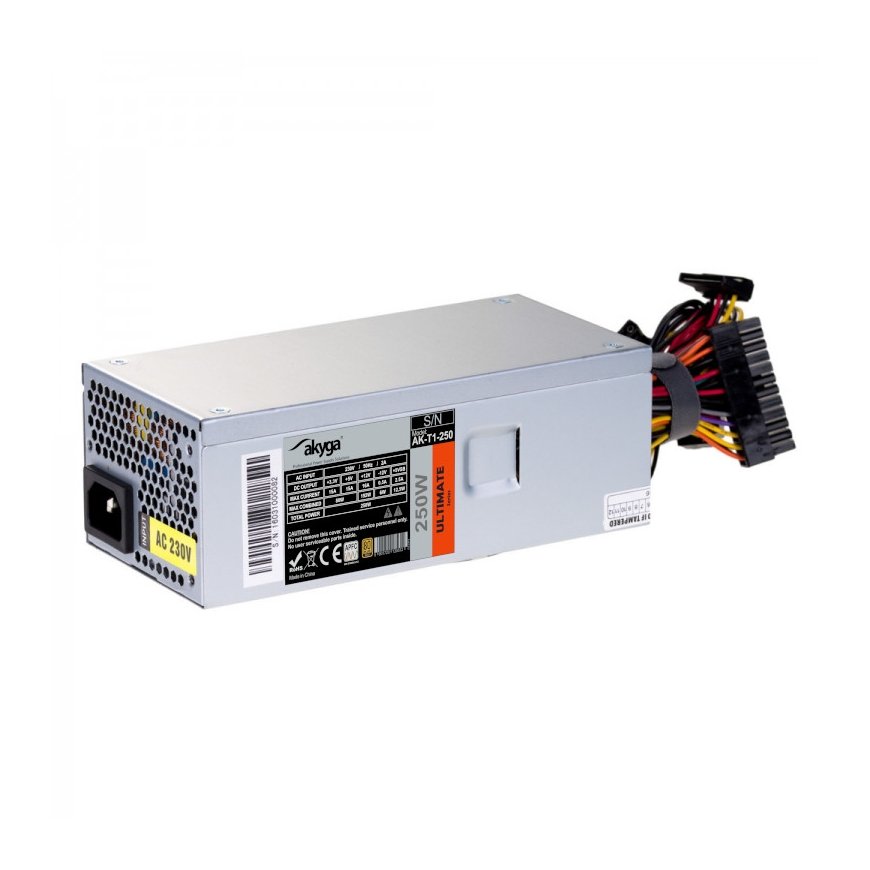

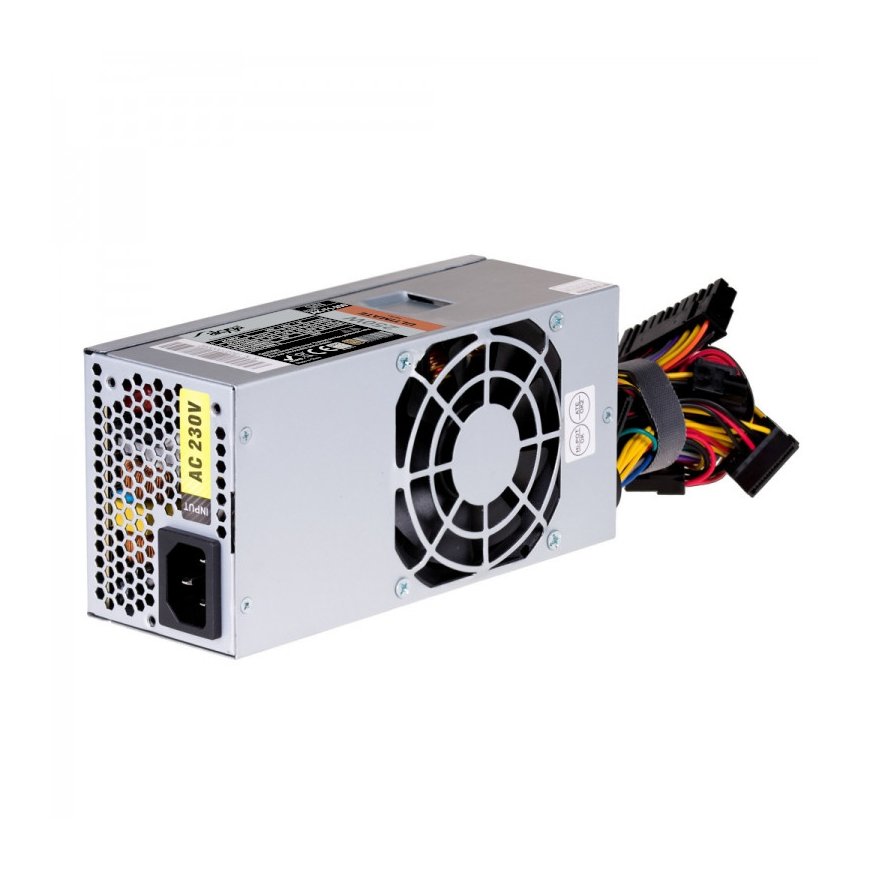

Akyga AK-T1-250 TFX power supply unit 250 W 24-pin ATX LFX Stainless steel
41.83 €
Monthly payment from 1,98 €
3176603 AK-T1-250
5901720135612
Shipping 1-2 b.d.
You are interested in this product?
All about the product

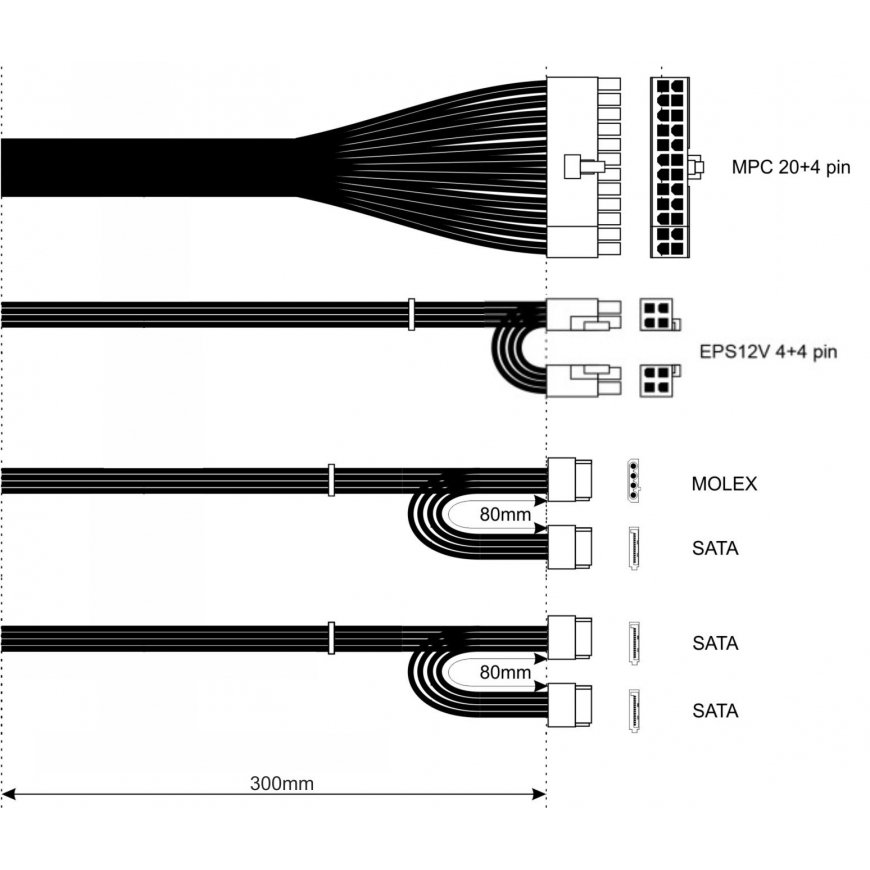

The Akyga AK-T1-250 TFX power supply 250W is an advanced, compact power adapter dedicated to mini and media PC systems. It supports all the latest construction standards, ensuring high performance and stability.The power supply features a 4-pin connector, MOLEX connector, 3 x SATA connector and universal 24-pin motherboard connector. A guarantee of high efficiency is the 80 PLUS® compatibility which ensures that at least 80% of energy provided by the power supply is received by computer’s components and a maximum of 20% of energy is lost in the form of heat. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer. Effective cooling is provided by efficient, silent fan of 8 cm diameter. The power supply is ideal for small and medium-sized cases thanks to optimized 36 cm long set of cables. Product is made of durable galvanized steel.
An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. The TFX AK-T1-250 power supply is a high quality product that meets the current requirements and corresponds to modern standards.
Power | |
| Efficiency | 80% |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 192 W |
| Combined power (+5V) | 80 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 80 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 16 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 15 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 250 W |
Performance | |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | LFX |
| Compatible products | Cable IEC C13 |
Design | |
| Product colour | Stainless steel |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Cooling type | Active |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
Weight & dimensions | |
| Weight | 836.4 g |
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
Packaging data | |
| Package weight | 846.4 g |
| Manual | Yes |
| Package height | 68 mm |
| Package width | 110 mm |
| Package depth | 252 mm |
Packaging content | |
| Cables included | AC |
Certificates | |
| Certification | OVP, OCP, OPP, OTP, SCP, UVP, CE, RoHS, REACH |
