Eaton 5P650IRNG2 uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 520 W 4 AC outlet(s)
852.00 €
Monthly payment from 22,84 €
3168923 5P650IRNG2
3553340710384, 0743172042903, 5052183209621, 5054444004013, 5054533252998, 7431720429032
Shipping 2-3 b.d.
You are interested in this product?
All about the product
Eaton 5P650IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 520 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BISFeatures
| Product colour | Black; Silver |
| Display type | LCD |
| USB port | Yes |
| Form factor | Rackmount |
| Weight | 8.68 kg |
| Width | 438 mm |
| Depth | 361 mm |
| Height | 43.2 mm |
| Cables included | USB cable |
| Certification | CE; UKCA; cTUVus; KCC; IEC/EN 62040-1; IEC/EN 62040-2; IEC/EN 62040-3; UL 1778; Cm; Ukr; BIS; CSA-C22.2 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Battery technology | Sealed Lead Acid (VRLA) |
| Quick installation guide | Yes |
| Battery voltage | 6 V |
| Battery capacity | 9 Ah |
| Power factor | 0.8 |
| Efficiency | 97% |
| Noise level | 35 dB |
| AC outlets quantity | 4 AC outlet(s) |
| USB port type | USB Type-B |
| Operating altitude | 0 - 3000 m |
| Output power | 520 W |
| Number of battery cells | 2 |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Heat dissipation | 461 BTU/h |
| Serial interface | Yes |
| UPS topology | Line-Interactive |
| Output power capacity | 0.65 kVA |
| Waveform | Sine |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 47/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Typical backup time at half load | 7 min |
| Hot-swap battery | Yes |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Rack mount kit | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS; Low Voltage Directive (LVD); Electromagnetic Compatibility (EMC) |

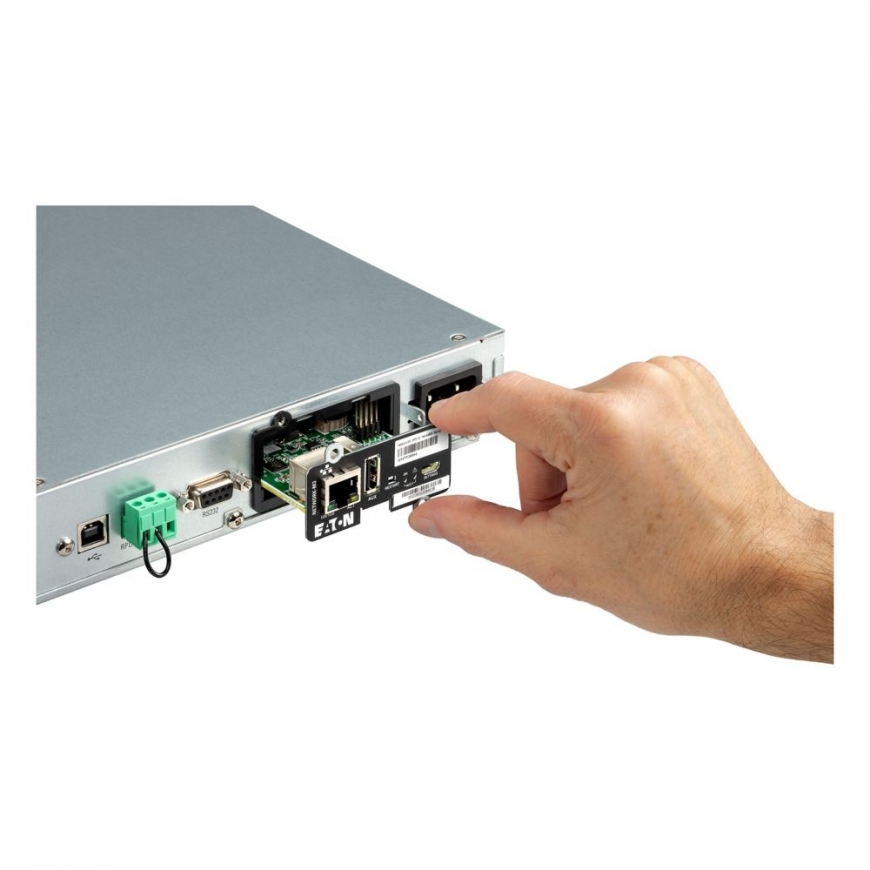

| Network card slot | Yes |
Ports & interfaces | |
| USB port | Yes |
| RS-232 ports | 1 |
Design | |
| Product colour | Black, Silver |
| Display type | LCD |
Features | |
| Heat dissipation | 461 BTU/h |
Power | |
| Battery voltage | 6 V |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions | |
| Width | 438 mm |
| Depth | 361 mm |
| Height | 43.2 mm |
| Weight | 8.68 kg |
Other features | |
| Input frequency | 47/70 Hz |
| Form factor | Rackmount |
Certificates | |
| Certification | CE, UKCA, cTUVus, KCC, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, Cm, Ukr, BIS, CSA-C22.2 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Technical details | |
| Compliance certificates | RoHS, Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC) |
Packaging content | |
| Cables included | USB cable |
| Quick installation guide | Yes |
Battery | |
| Number of battery cells | 2 |
