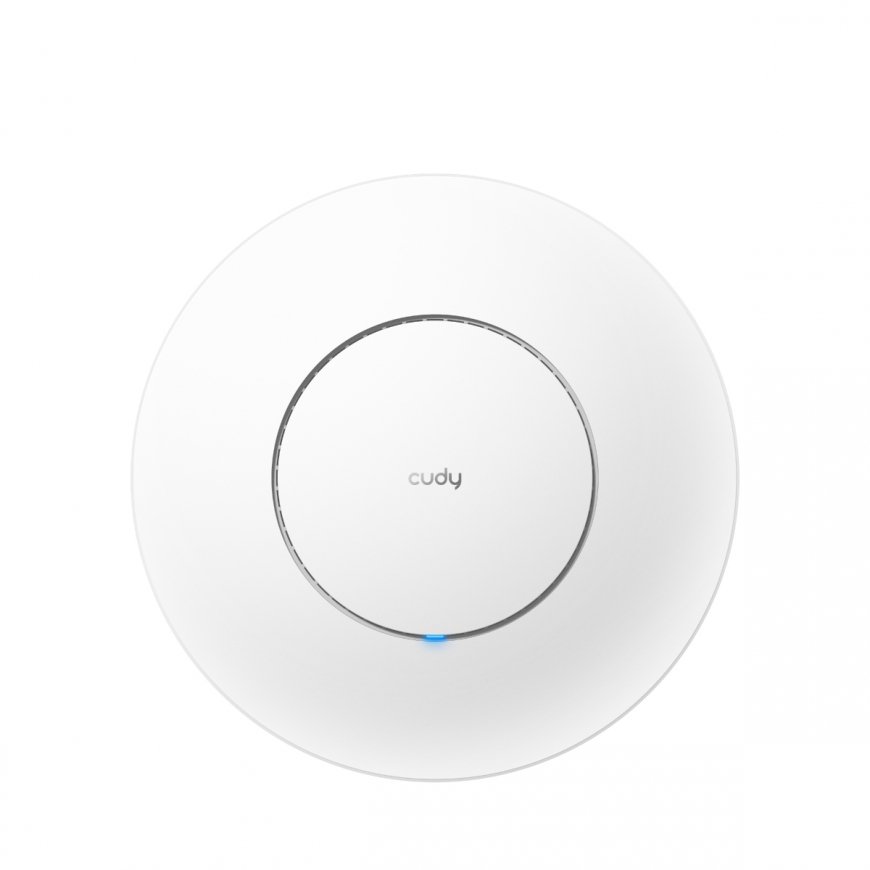

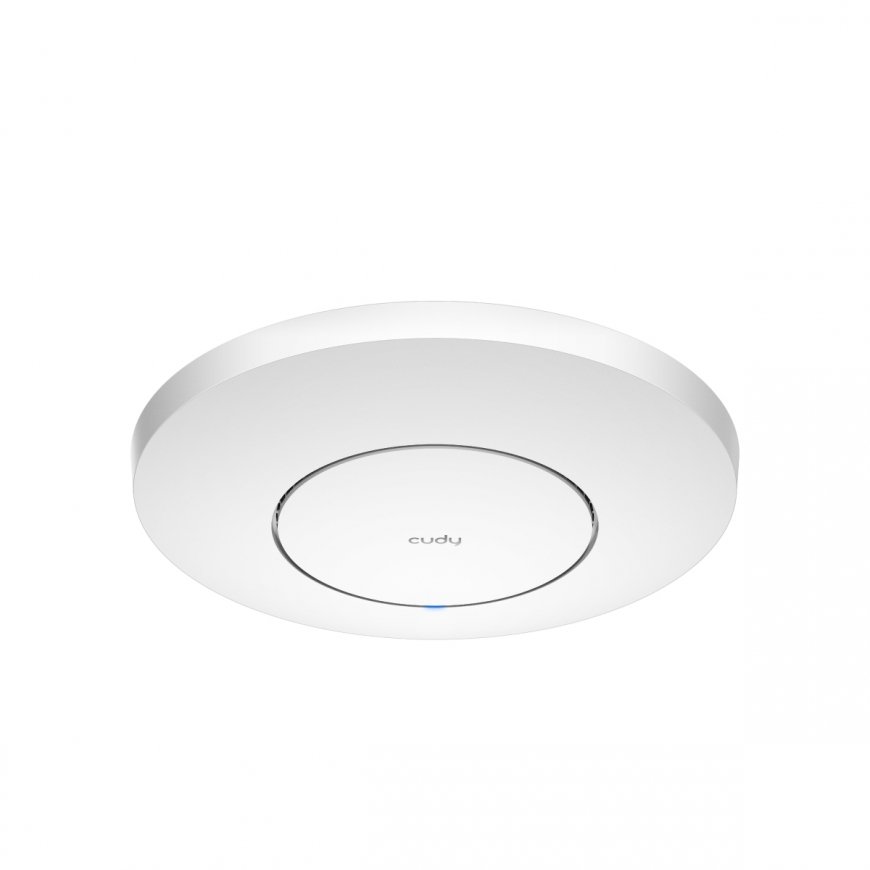

Cudy AP3000_P wireless access point 2976 Mbit/s White Power over Ethernet (PoE)
109.22 €
Monthly payment from 3,71 €
3130769 AP3000_P
6971690793289
2026-09-29
You are interested in this product?
All about the product
Premium Wi-Fi 6 with 2.5G PortImpress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.
Connects 512 Devices with 512 MB RAM
1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.
5 Antennas and 3+2 Strucutre Boost Coverage
Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.
Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.
Advanced Business Features
Captive Portal
Improve your brand awareness by displaying a customized login page for new clients.
Band Steering
Assign devices to less congested bands.
Auto Channel Selection
Avoid signal interruptions with nearby access points.
Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.
Multi-Mode for Multiple Scenarios
Access Point
Simply create a Wi-Fi spot behind a router.
Wi-Fi Router
Please use the Router mode when PPPoE authorization or creating a separate subnet is needed.
Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.
WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.
Flexible Wired-and-Wireless Hybrid Backhaul

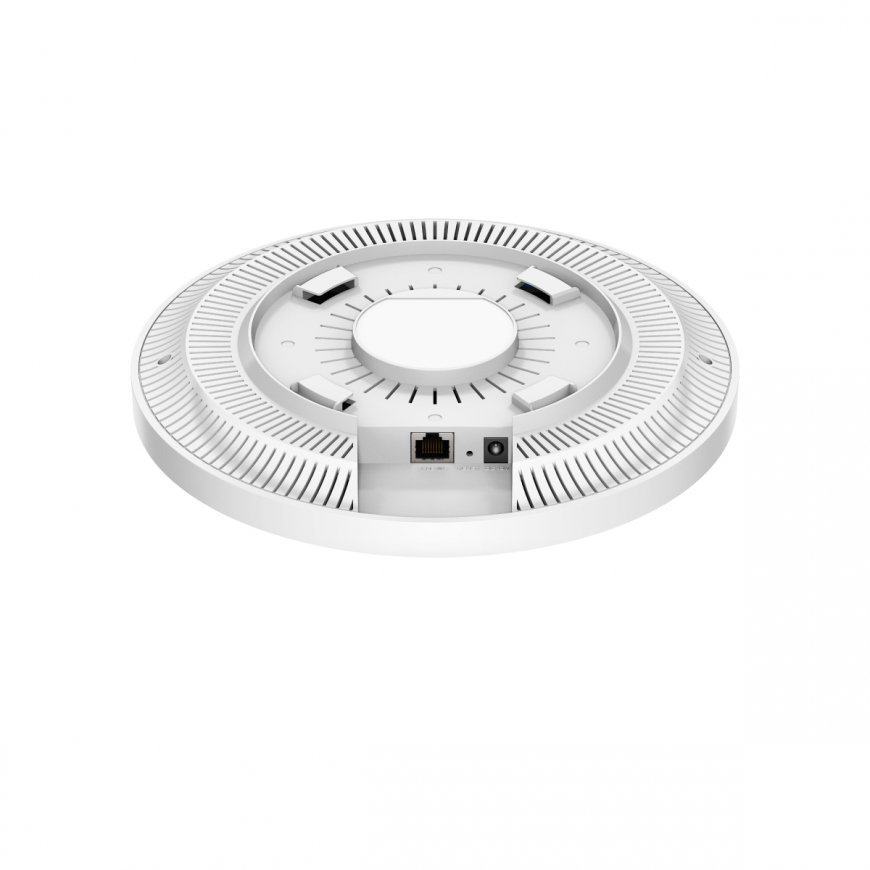

Versatile Powering and Installation
PoE or DC Power Supply
- Supports 802.3at/af PoE
- 48-57V Passive PoE
- 12-48V DC

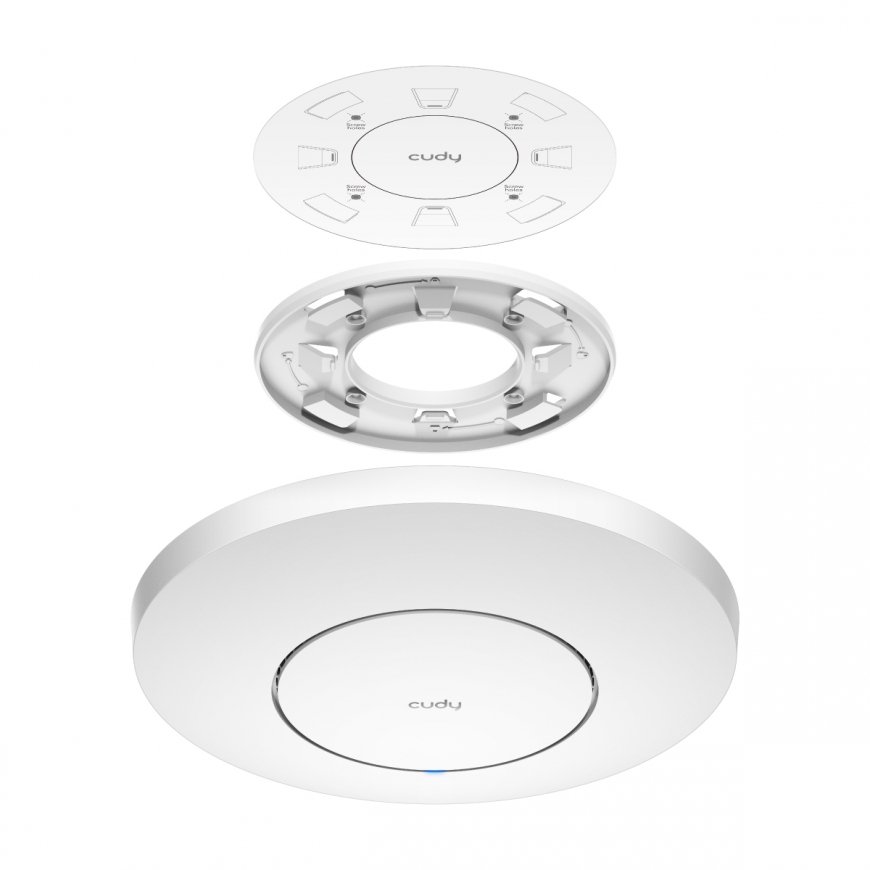

Versatile Mounting
- Ceiling Mounting
- Wall Mounting
Wireless LAN features | |
| Channel bandwidth | 160 MHz |
Network | |
| Networking standards | IEEE 802.3at, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax |
| Ethernet LAN data rates | 100, 1000, 2500 |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Management features | |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO | Yes |
Security | |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3-SAE |
Design | |
| Product colour | White |
Antenna | |
| Antennas quantity | 5 |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
Features | |
| Built-in processor | Yes |
| Processor frequency | 1300 MHz |
Power | |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 232 mm |
| Depth | 232 mm |
| Height | 57.1 mm |
Packaging data | |
| Package weight | 1.01 kg |
Other features | |
| Compatible operating systems | Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Maximum data transfer rate | 2976 Mbit/s |
Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
