-1%
The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

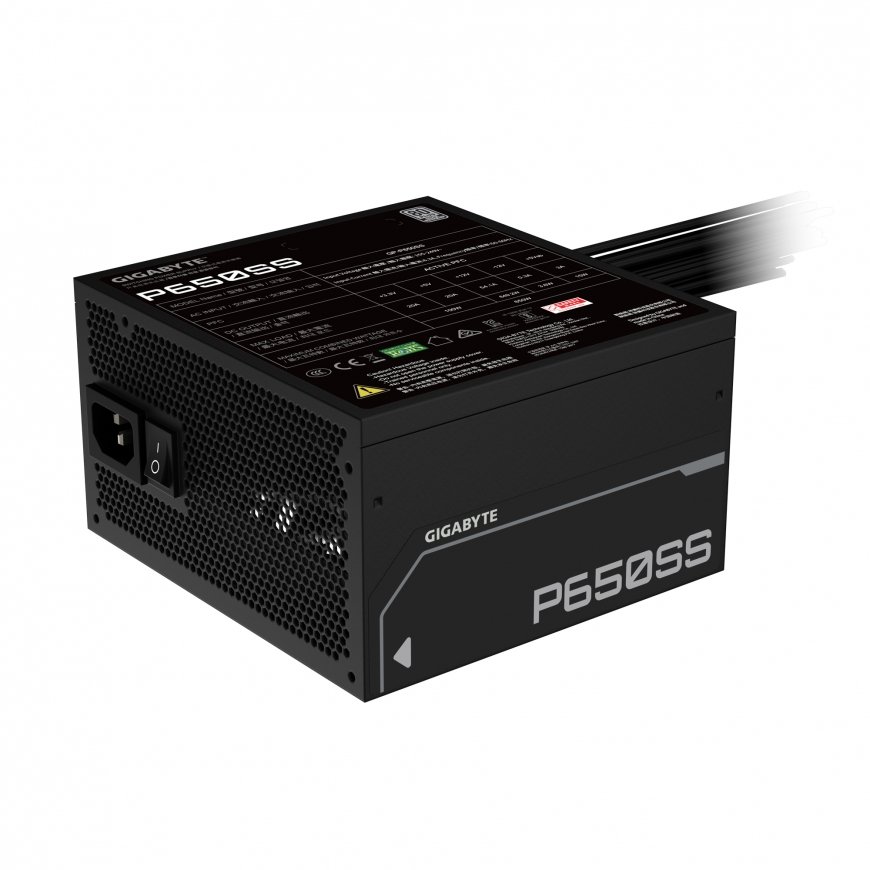

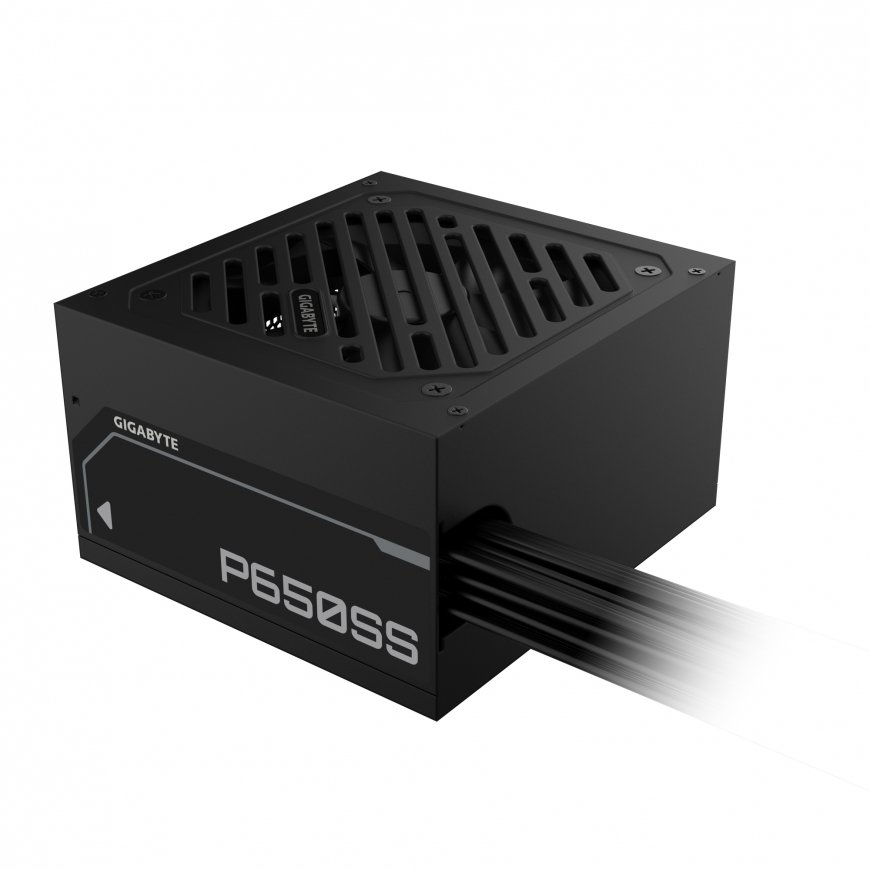

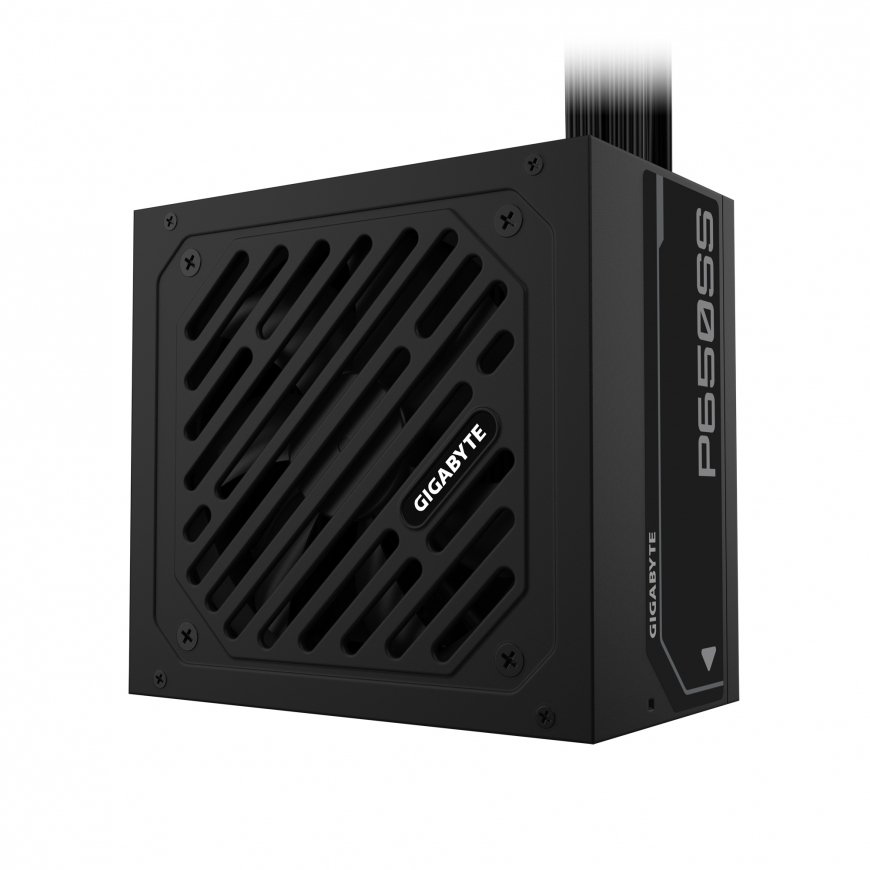

GIGABYTE P650SS power supply unit 650 W 20+4 pin ATX ATX Black
49,74 €
49.00 €
Monthly payment from 2,16 €
3128364 GP-P650SS
4719331554095, 4719331555658
Shipping 3-5 b.d.
You are interested in this product?
All about the product
80 PLUSSILVER CERTIFIED
The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
Support Intel
ATX 3.0 standard
The P650SS can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

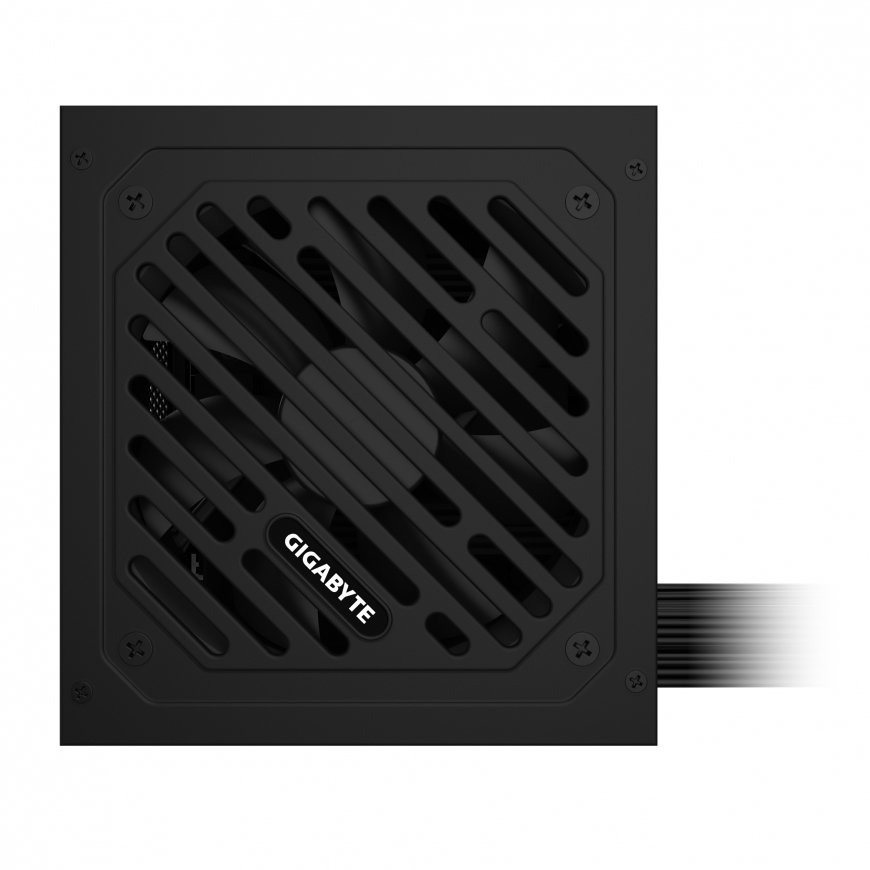

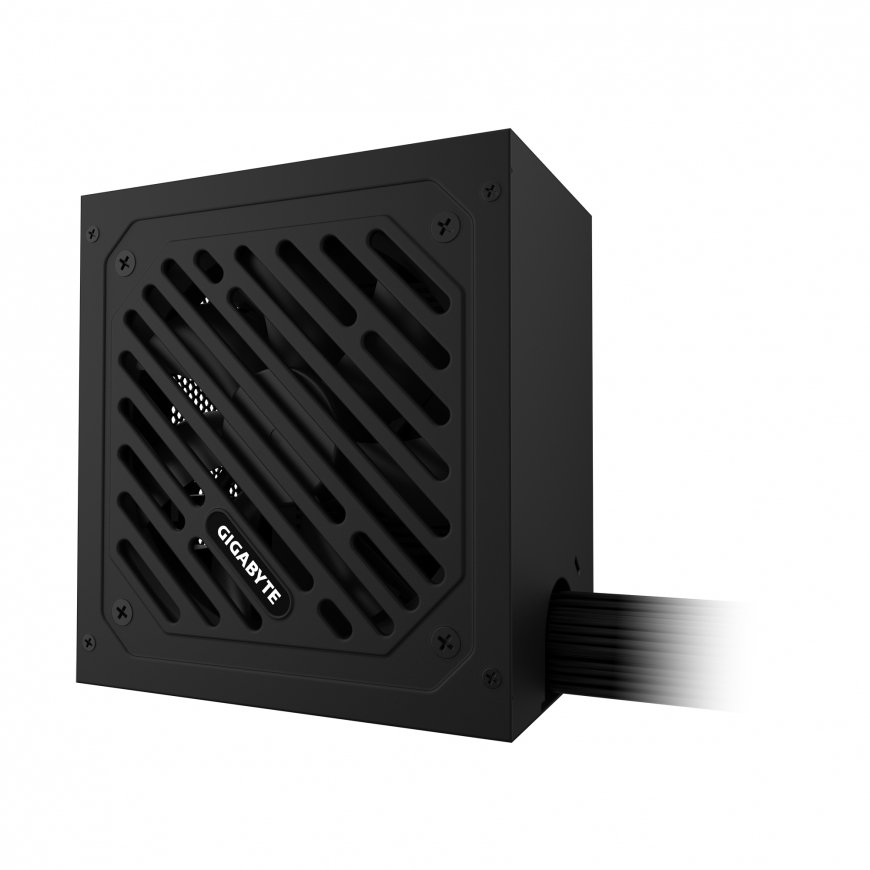

120MM FLUID DYNAMIC
BEARING(FDB) FAN
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.
RELIABLE FLAT CABLE DESIGN
The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis.
SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.
PROTECTION
To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.
Power | |
| Input current | 6.3 A |
| Power protection features | Overload, Short circuit, Under voltage, Overcharge |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 155-240 V |
| Total power | 650 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | HDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500, 120 |
| Peripheral (Molex) power cable length | 500, 120 |
| PCI Express power cable length | 65 cm |
| CPU power cable length | 60 cm |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
Other features | |
| Power management | Yes |
| Noise level (silent mode, | 20 dB |
| Noise level (quiet mode, 50%) | 29 dB |
| Noise level (full-load mode, 100%) | 39 dB |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
