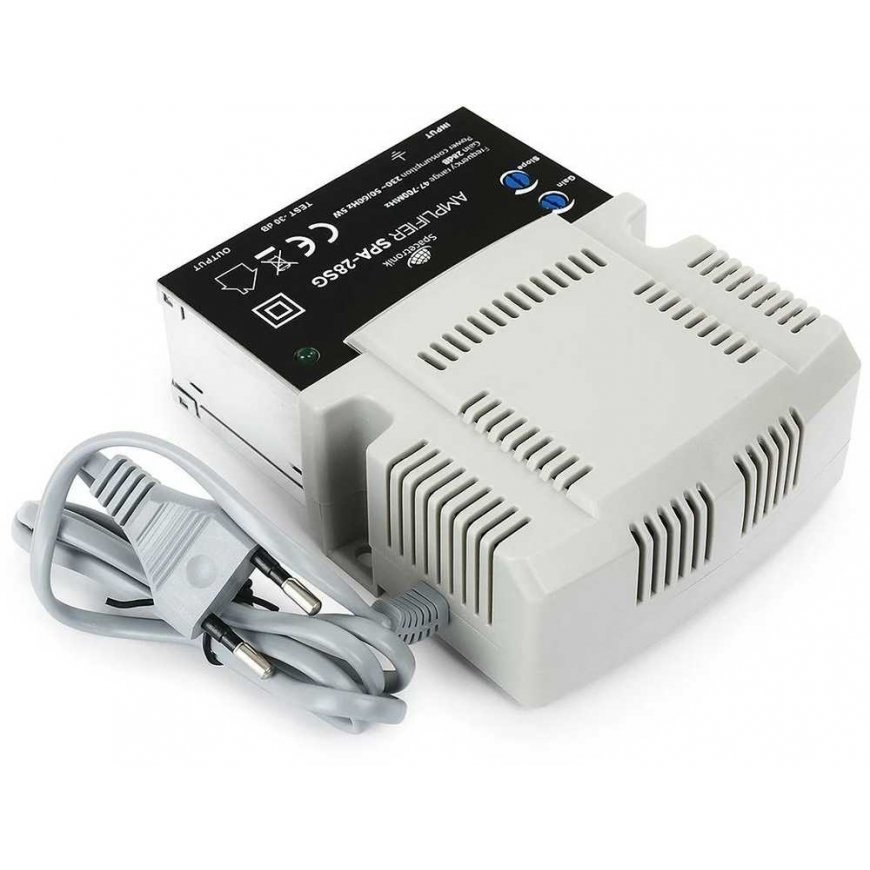

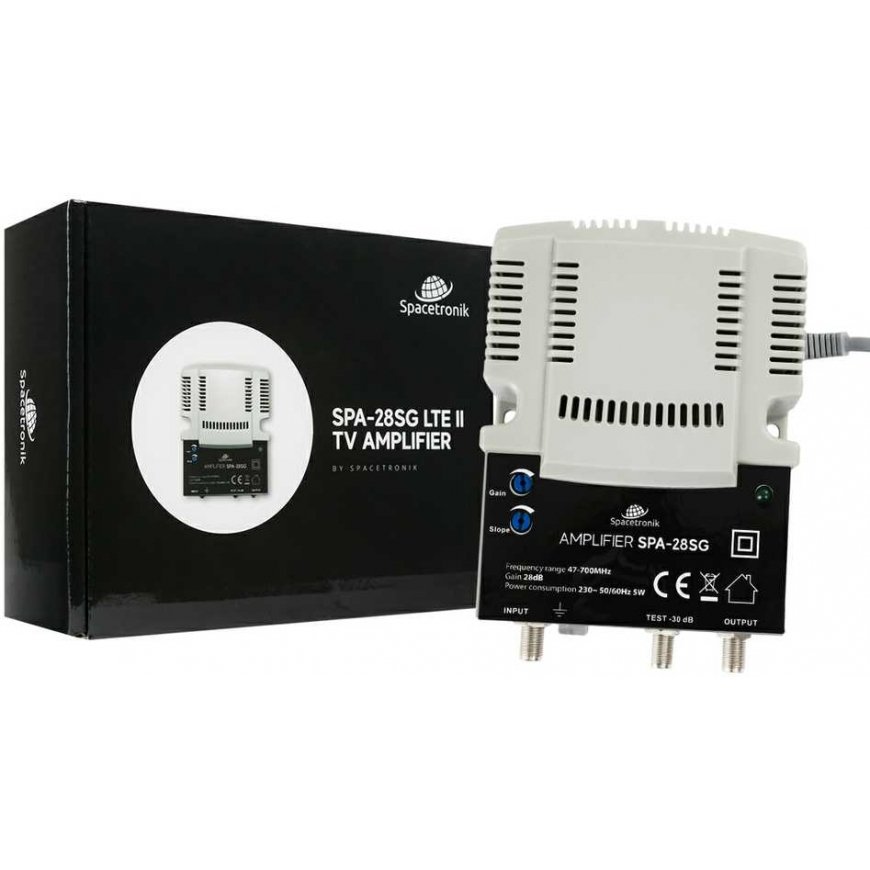

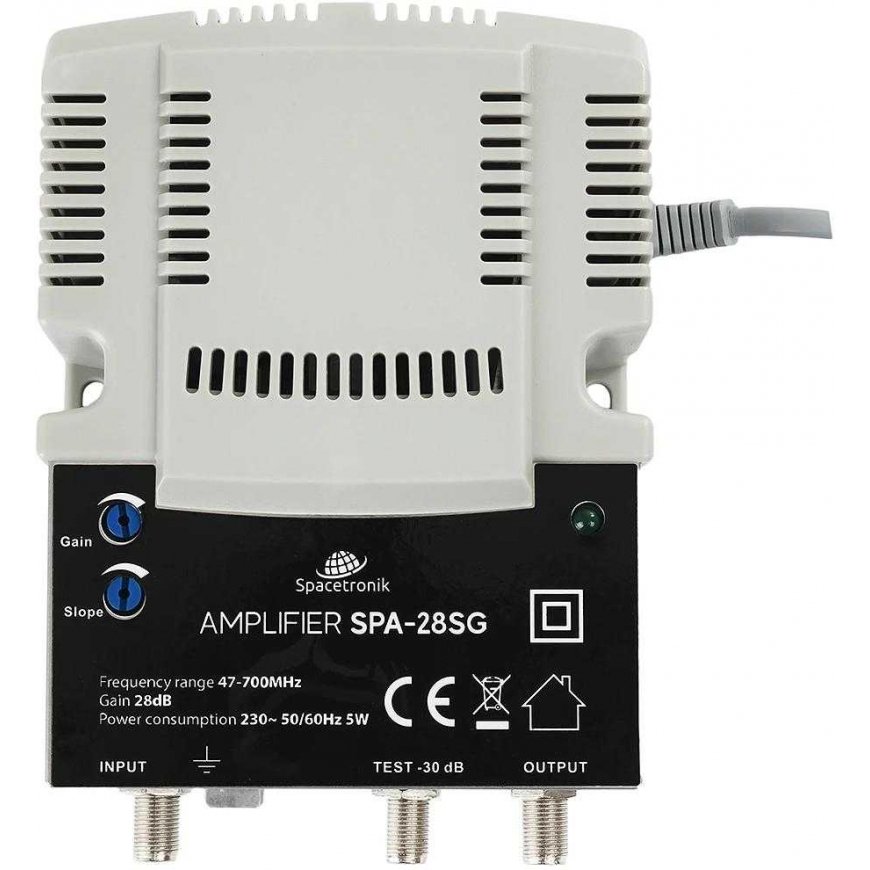

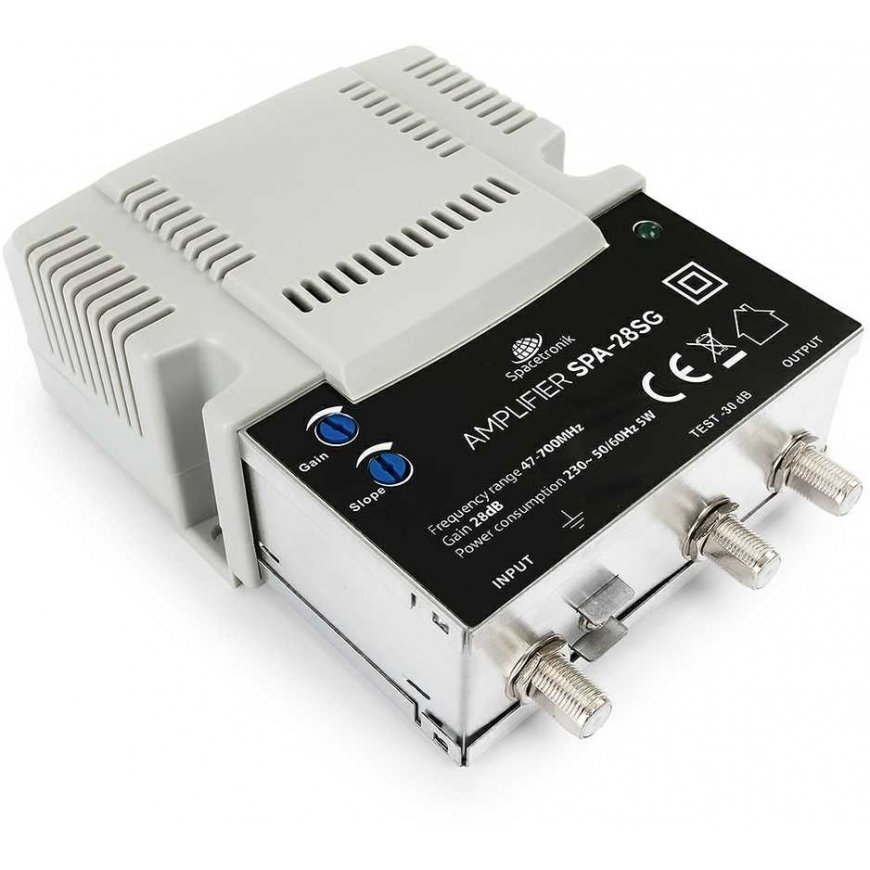

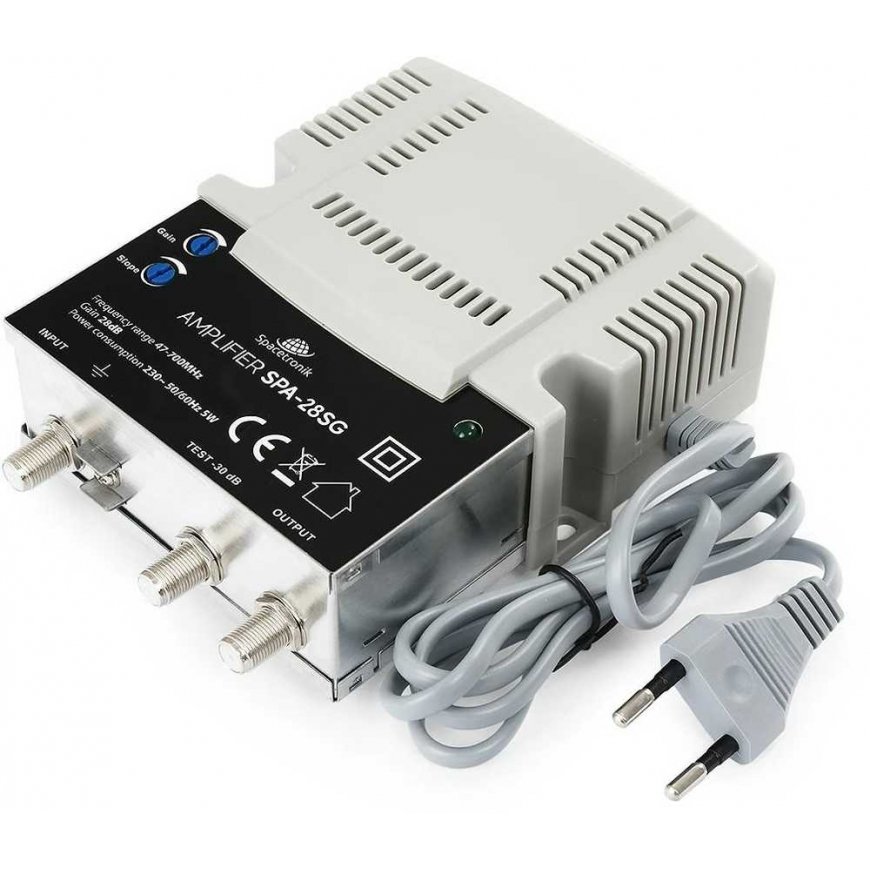

Spacetronik SPA-28SG SLOPE building amplifier
3120199 SPA-28SG
5903031034509
Shipping 11-14 b.d.
All about the product
Spacetronik SPA-28SG LTE II adjustable terrestrial and cable TV signal amplifier
SPA-28SG is an adjustable television signal amplifier for terrestrial and cable television systems for home and other applications. Allows customization of profit and inhibition using built-in knobs. The device has one input and two exits - 1 normal and 1 test. . The operating frequency ranges of this device are: VHF from 47-318 MHz, UHF from 470-700 MHz.
The device allows you to amplify the signal up to an adjustable 28dB. In addition, the 18dB adjustable " Slope " allows you to compensate for the attenuation differences of coaxial cables at higher frequencies (pre-correction of the characteristic slope). Integrated power supply.
How to connect a TV signal amplifier?
Technical data
Frequency range: 47-700MHz LTEII
Gain: 28dB
Flatness: +/- 0.5dB
Gain adjustment: 20dB
Slope adjustment: 18dB
Maximum output level: 117dBµV
Input and output return loss: 101dBµV
Noise figure: 6dB
Test point: -30dB
Supply voltage, power consumption: 187-250V~50/60Hz 5W
Operating temperature: -20°C ~ +50°C
Dimensions/Weight: 107x148x53mm/0.6kg
