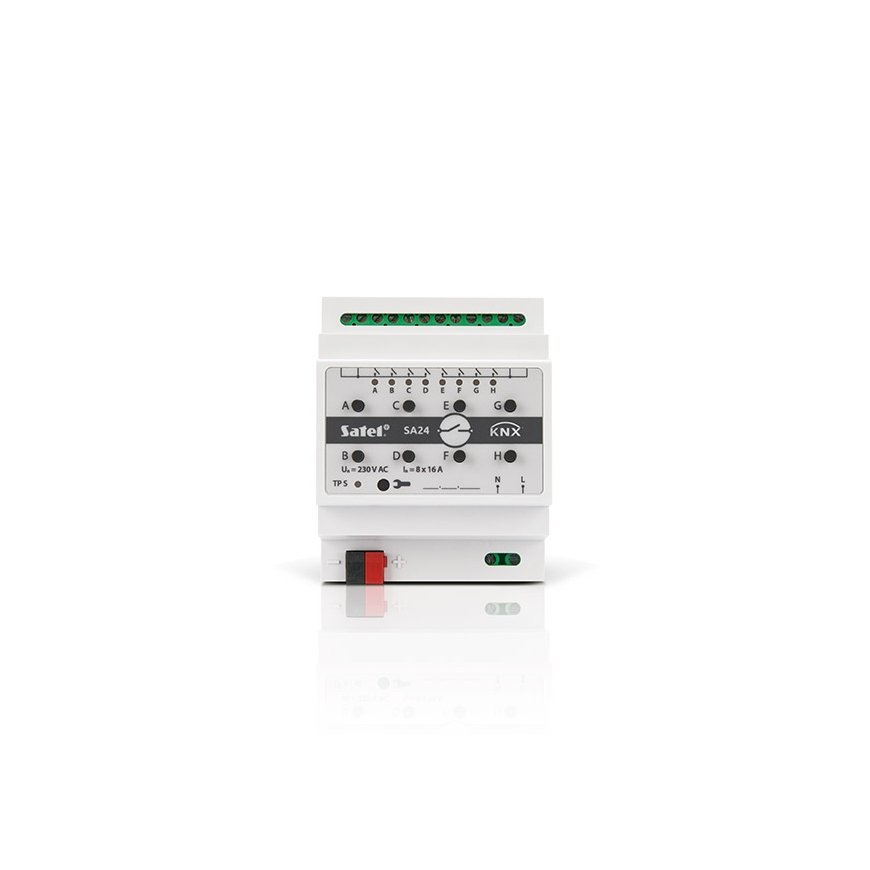

Satel KNX-SA24 smart home actuator DIN rail-mounted Switching actuator 8 channels
222.77 €
Monthly payment from 6,64 €
3116738 KNX-SA24
5905033332478
Shipping 11-15 b.d.
You are interested in this product?
All about the product
KNX-SA24 module is a universal switch actuator, which makes it possible to control electrical devices (lighting, ventilation). The telegrams received from various KNX devices (e.g. sensors) are converted, via the module, into concrete actions, such as switching on/off light or fan.The KNX-SA24 module has 8 relay outputs. Each of them corresponds to one logical channel.
Features
| Product colour | White |
| International Protection (IP) code | IP20 |
| Weight | 240 g |
| Width | 92 mm |
| Depth | 60 mm |
| Height | 70 mm |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Product type | Switching actuator |
| Built-in display | No |
| Input voltage | 230 V |
| Mounting type | DIN rail-mounted |
| Power source type | AC |
| Channels quantity | 8 channels |
| Current | 16 A |
| Maximum switching capacity | 3680 W |
