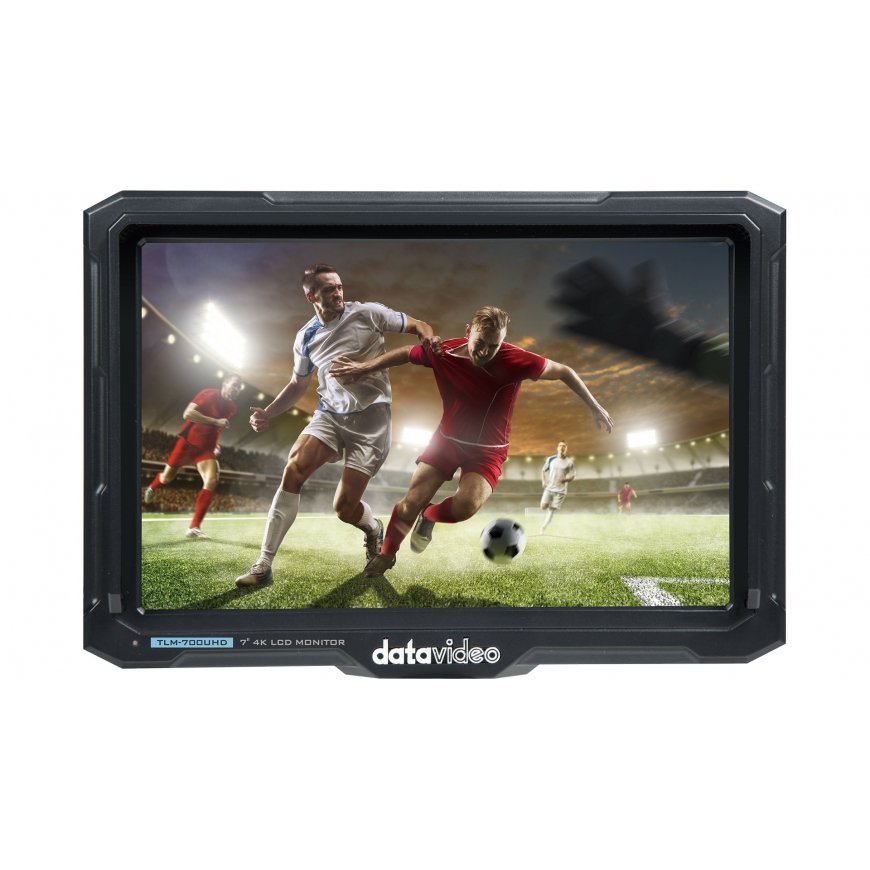

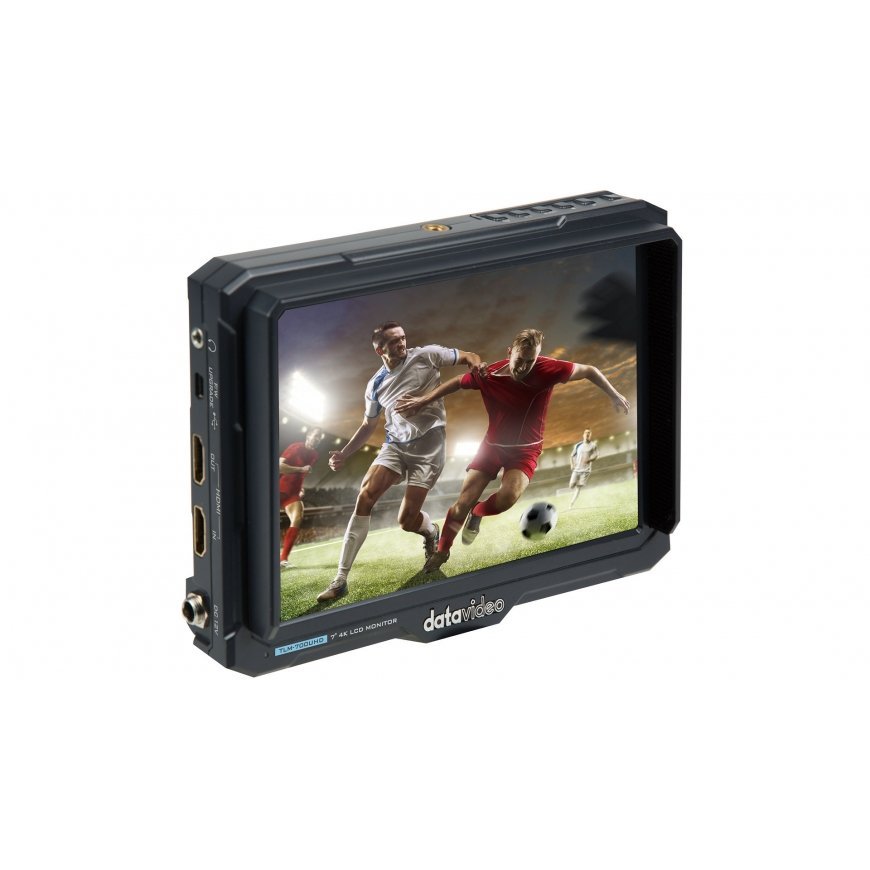

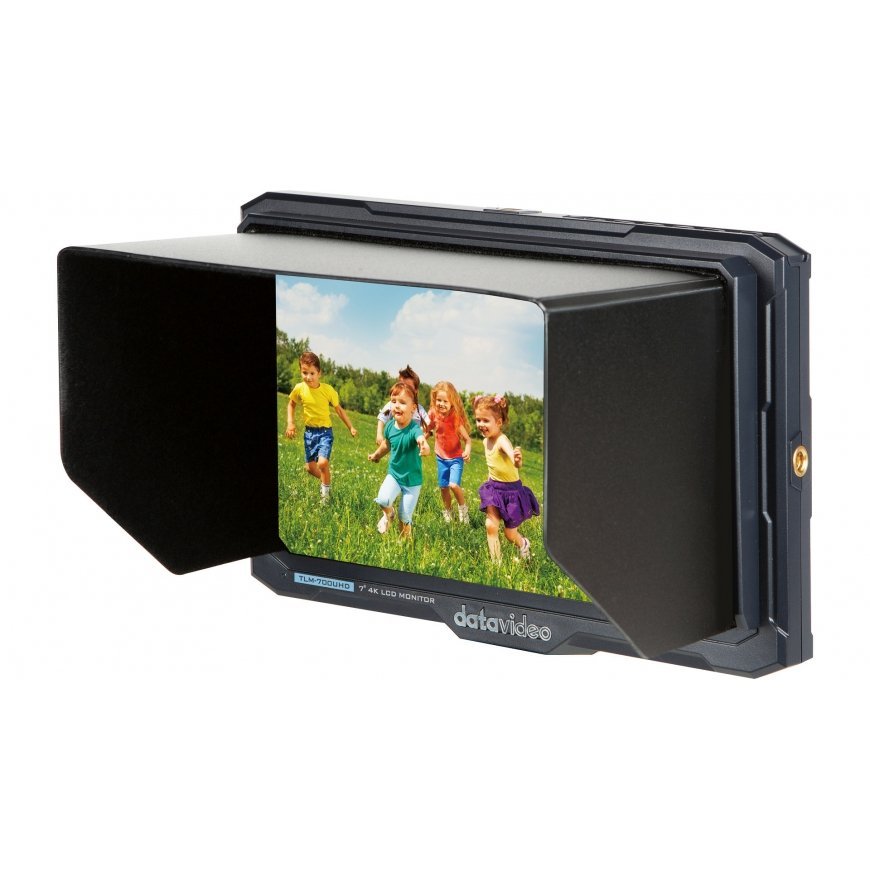

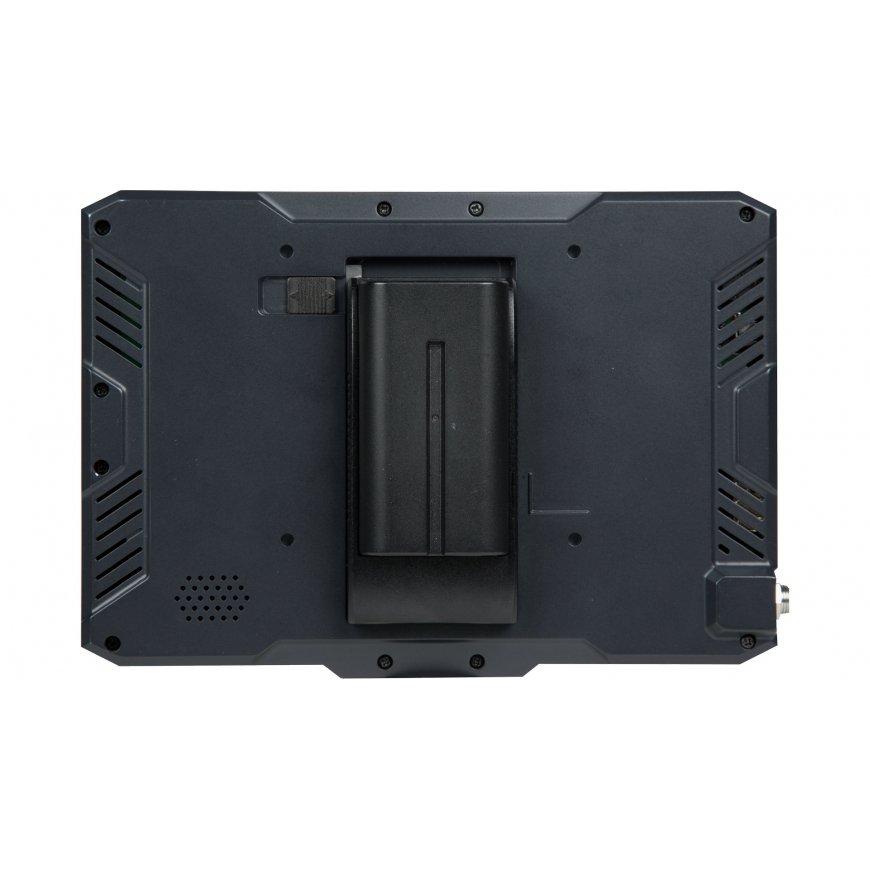

DataVideo TLM-700UHD 17.8 cm (7") Black 1920 x 1200 pixels
400.19 €
Monthly payment from 11,20 €
3101251 2100-0720
0672255008867
Shipping 8-12 b.d.
You are interested in this product?
All about the product
4K 50/60P Amazing DetailsDatavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7” screen. The monitor is a 1920x1080 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs.
7'' 4K Look-Back Monitor
Supports 4K/3G/HD/SD 1920x1200 panel resolution.
Simple Input and Output Configuration

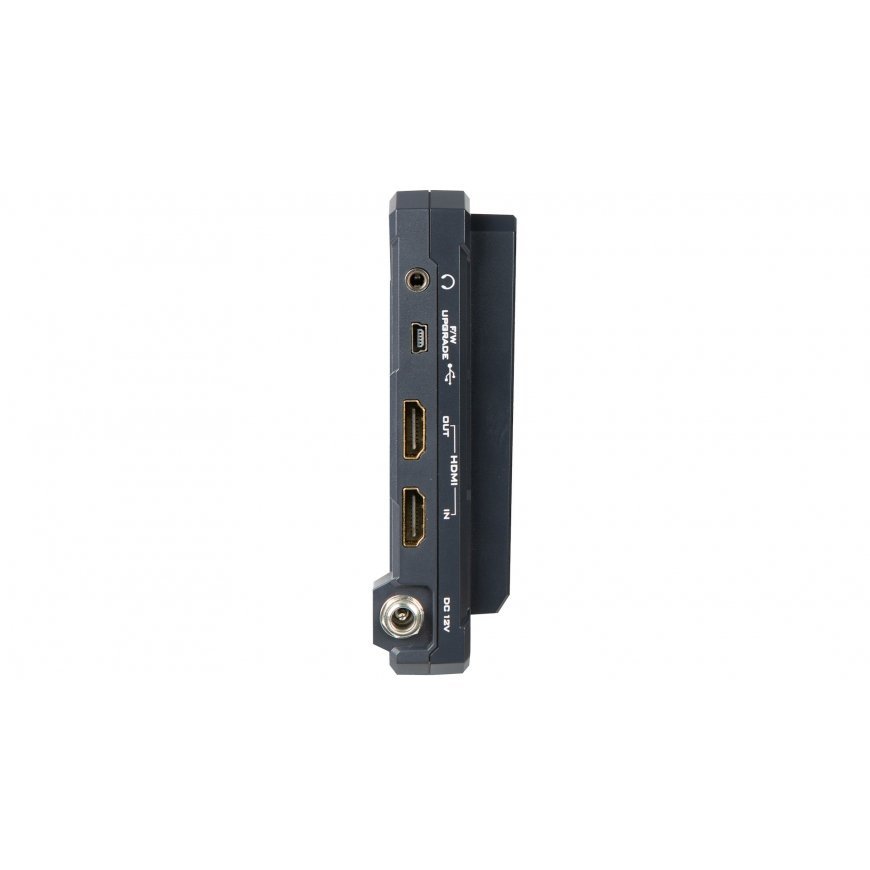

1x HDMI input and loop out
Compatible with Professional Cameras
Compatible with DSLRs, mirrorless cameras, and camcorders
Fast and Accurate Focus Peaking
The red/green/blue peaking profile helps users instantly determine proper focusing.
Peaking zones can be shown during shooting, recording, and playback.
Over-Exposure Analysis
Exposure analysis lets users see if the brightness is too strong in certain regions of the video.
Color Field Checking
Provides monochrome, red, green and blue-only mode for easy color recognition and correction
Screen Flip Function
Supports both vertical and horizontal rotation. Compatible with tripods, arms, and cages. Convenient for viewing from multiple angles.
Zoom In
Zoom in 1.5X / 2X / 3X / 4X
Clearly view the details of image for instant adjustment
Safety Marker and Aspect Marker
Simulates the effect of cropping in post-production. Support vertical mode, too. Safety marker 95% / 93% / 90% / 88% / 85% / 80% and aspect maker 16:9 / 1.85:1 / 2.35:1 / 4: 3 / 3:2
Features
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1920 x 1200 pixels |
| Number of speakers | 1 |
| Product colour | Black |
| HDMI ports quantity | 2 |
| Touchscreen | No |
| Resolution at capture speed | 3840x2160@30fps; 3840x2160@24fps; 3840x2160@60fps; [email protected]; 3840x2160@25fps; [email protected]; [email protected]; 4096x2160@24fps; 4096x2160@25fps; 4096x2160@30fps |
| Weight | 300 g |
| Width | 182 mm |
| Depth | 37 mm |
| Height | 129 mm |
| Supported video modes | 720p; 1080p; 480i; 480p; 1080i; 2160p; 576i; 576p |
| Operating temperature (T-T) | 0 - 40 °C |
| Built-in speaker(s) | Yes |
| Input voltage | 12 V |
| Power consumption (max) | 12 W |
| Display technology | TFT |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
| LED backlight | No |
| HDMI version | 2.0 |
| Display brightness | 450 cd/m² |
| Aspect ratio | 16:9; 4:3; 3:2; 1.85:1; 2.35:1 |
| HDMI in | 1 |
