Blow Plate 80cm CORAB ASC-800M-C
39.00 €
Monthly payment from 1,90 €
3087052 4256#
5907724515078
Shipping 11-15 b.d.
You are interested in this product?
All about the product
Satellite antenna with very good technical parameters. The mirror is made of steel sheet painted with polyester powder paint, and the structure is made of plastic. The product was awarded the European medal for the highest quality.TECHNICAL DATA:

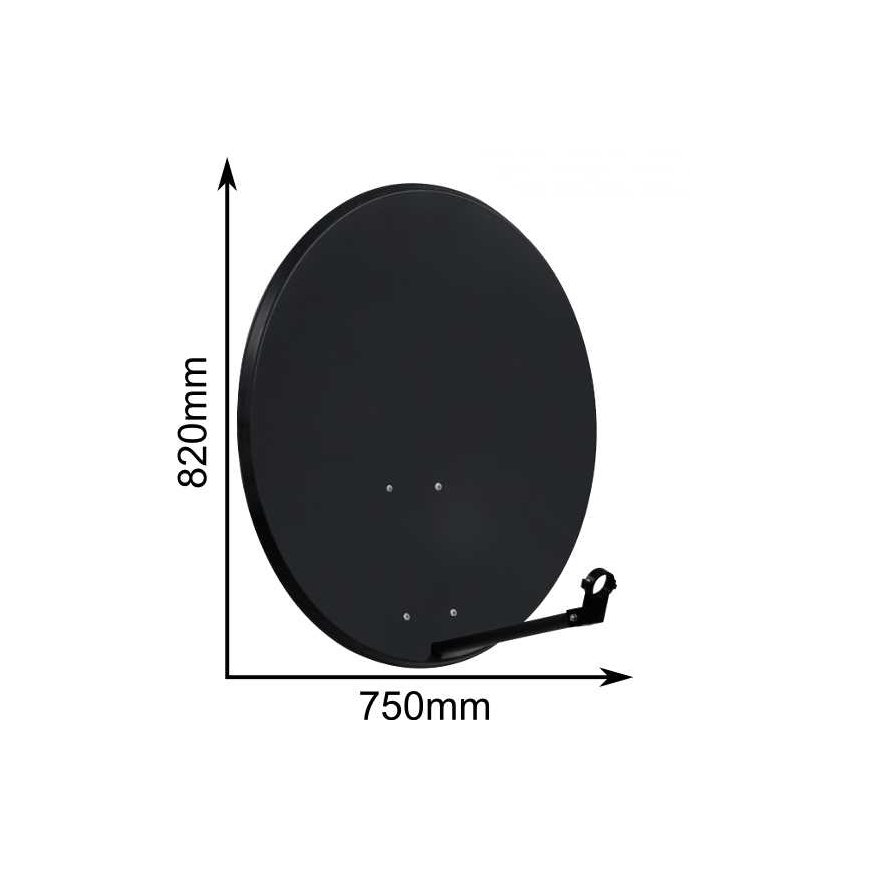

- Converter operating frequency range: 10.7 - 12.75 GHz - Reflector working part dimensions: 799 x 720 mm - Reflector external dimensions: 831 x 752 mm - Offset angle: 25.64 degrees - Focal length (f): 412, 5 mm - f/D ratio: 0.57 - Gain at 10.70 GHz: 37.00 dB - Gain at 11.70 GHz: 37.40 dB - Gain at 12.75 GHz: 38.50 dB - Azimuth adjustment range: 0 - 180° - 0 E elevation angle adjustment range ° - Mast diameter: 32 - 60 mm - LNB mounting: 40 mm - Reflector coating: polyester paint - Reflector sheet thickness: 0.6 mm - Accessory finish: galvanized - Working wind speed: 121 km/h - Maximum wind speed: 168.5 km/h - Operating temperature range: -40+55°C - Possibility to print a logo on the reflector: yes
- Total weight of the antenna: 3.85 kg
