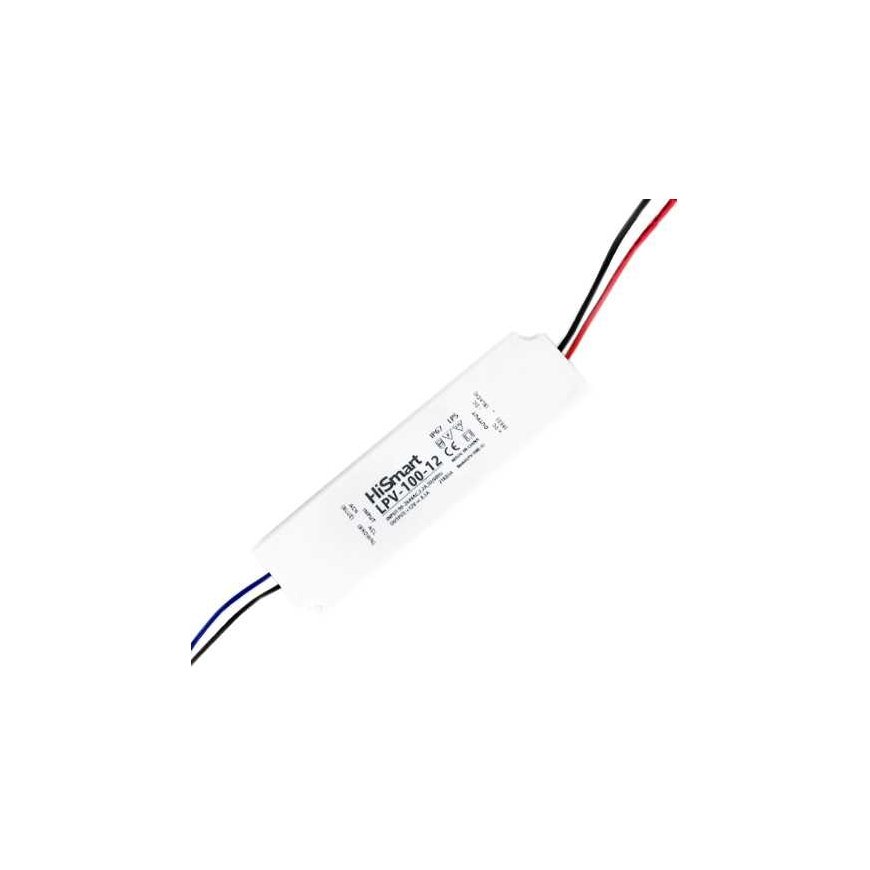

Hismart Power supply 12V, 8.5A, 100W, IP67
26.08 €
3079192 LPV-100-12
9990000700417
Shipping 1-2 days
You are interested in this product?
All about the product
Impulse power supply 12V, 8.5A, 100W, safety class IP67.Features:
12V power source operating in pulse mode.
Small volume, low weight, high efficiency.
Protection: against overload, voltage increase, short circuit.
Cooling by free air convection.
Safety class IP67 (water resistance), suitable for both indoor and outdoor installation.
Technical data:
Input voltage: AC 90-264V. Frequency: 47-63Hz.
Output voltage: DC 12V.
Maximum output current: 8.5A.
Maximum power: 102W.
Irregularities and noise: 120mV pp.
AC voltage: 2.2A/115V, 1.2A/230V.
Efficiency: 85%.
Leakage current in the input circuit at AC 240V: up to 0.25mA.
MBTF: min 703000 hours
Operating temperature: from -25°C to +70°C.
Working humidity: 20%~90%RH.
Dimensions: 190x52x37mm.
Weight: 0.63kg.
Warranty: 24 months
