The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

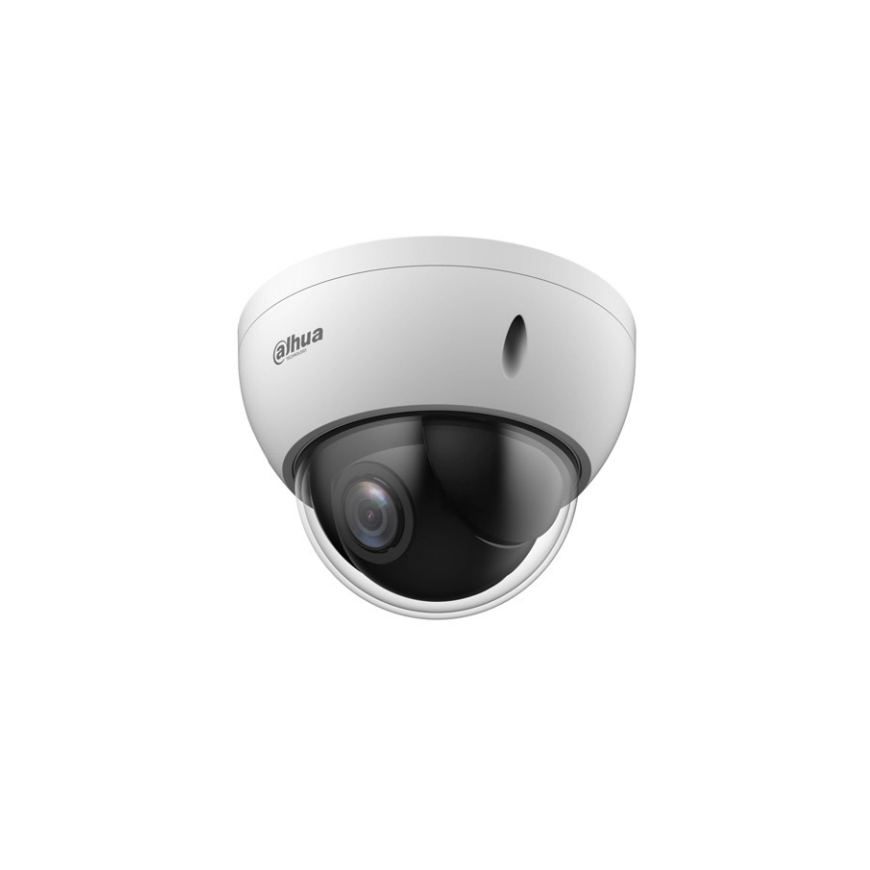

Dahua Technology DH-SD22204DB-GC security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
348,01 €
329.01 €
Monthly payment from 9,37 €
3074785 DH-SD22204DB-GC
6923172591319
Shipping 2-3 b.d.
You are interested in this product?
All about the product
Dahua Technology DH-SD22204DB-GC. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 99.1°, Lens viewing angle, vertical: 53.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Optical zoom: 4x, Digital zoom: 16x, Detect distance: 151.7 mFeatures
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | White |
| Form factor | Dome |
| International Protection (IP) code | IP66 |
| Weight | 600 g |
| Height | 88.9 mm |
| Type | CCTV security camera |
| Package type | Box |
| Supported video modes | 720p; 1080p |
| Maximum resolution | 1920 x 1080 pixels |
| Package weight | 650 g |
| Connectivity technology | Wired |
| Supported graphics resolutions | 1280 x 720 (HD 720); 1920 x 1080 (HD 1080); 352 x 240; 352 x 288; 704 x 480; 704 x 576 |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Parte 15; subparte B, ANSI C63.4-2014 UL:; UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| DC-in jack | Yes |
| Ethernet LAN | No |
| Power consumption (typical) | 7 W |
| Noise reduction | Yes |
| Mounting type | Ceiling |
| Power source type | DC |
| Power consumption (max) | 9 W |
| Zoom capability | Yes |
| Optical zoom | 4x |
| Focal length range | 2.7 - 11 mm |
| Placement supported | Indoor & outdoor |
| Tilt angle range | 0 - 90° |
| Storage relative humidity (H-H) | 0 - 95% |
| Digital zoom | 16x |
| PTZ control | Yes |
| PTZ modes | 8 Tour; Preset sequence |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| IK code | IK10 |
| Camera shutter speed | 1/1 - 1/30000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Video compression formats | H.264; H.265; M-JPEG; H.264+; H.265+; H.264B; H.264H |
| Built-in HDD | No |
| Video motion detection | Yes |
| DC output voltage | 12 |
| DC output current | 1 A |
| Diameter | 12.2 cm |
| Number of cameras | 1 |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Internal memory | 256 MB |
| Focus | Motorized/Manual |
| Minimum illumination | 0.0005 lx |
| White balance | ATW; Auto; Indoor; Manual; Outdoor |
| Gain control type | Auto/Manual |
| Pan range | 0 - 355° |
| Frame rate | 30 fps |
| Total megapixels | 2 MP |
| Camera shutter type | Electronic |
| Night vision | Yes |
| LED type | IR |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Video streaming | Yes |
| Tilt speed | 60 °/sec |
| PTZ protocols | Pelco-P/D |
| Progressive scan | Yes |
| RS-485 ports | 1 |
| Pan speed | 100 °/sec |
| Pan preset speed | 100 °/sec |
| Detect distance | 151.7 m |
| Observe distance | 59.9 m |
| Recognize distance | 30.3 m |
| Identify distance | 15.2 m |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 448K - 8192Kbps, 5120K - 10240Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| ROM capacity | 128 MB |
| Noise reduction technology | 3D noise reduction; 2D noise reduction |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
| Digital Wide Dynamic Range (DWDR) | Yes |
| BNC output ports | 1 |
| Preset points | Yes |
| Lens viewing angle, diagonal | 117.7° |
| Lens viewing angle, horizontal | 99.1° |
| Lens viewing angle, vertical | 53.4° |
