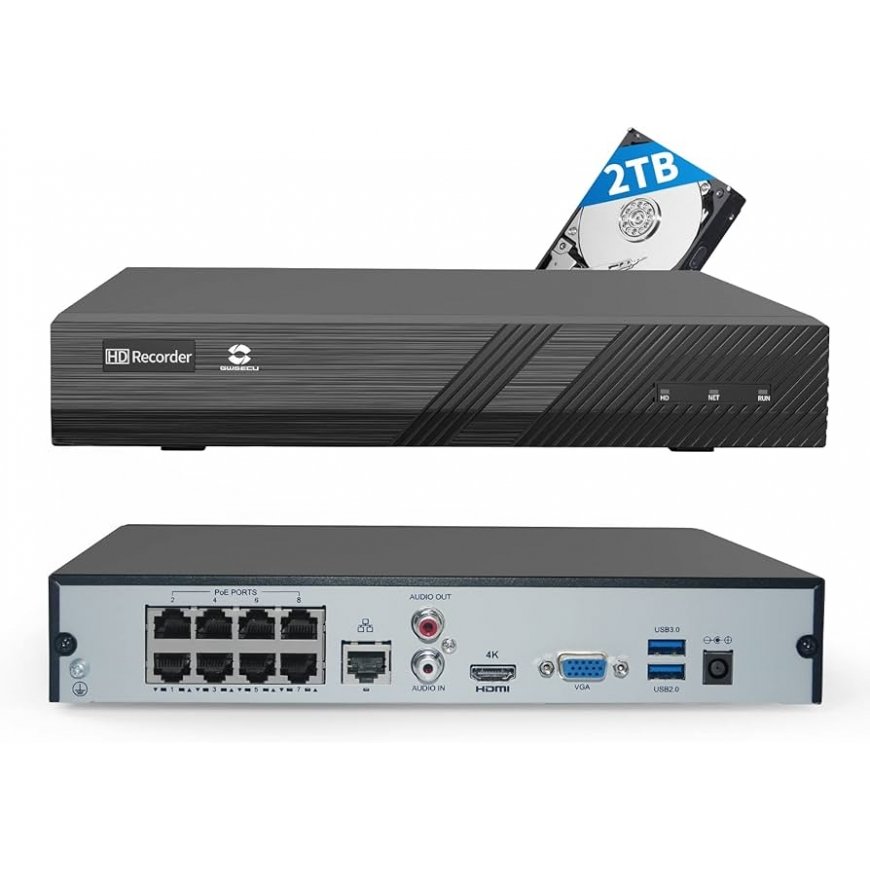

NVR | NVR-108H-D/4P D | 1 |

All about the product

• Image and sound
• IP video input

  8 ch

  Up to 6 MP resolution

• Incoming bandwidth 60 Mbps
• Outgoing bandwidth 60 Mbps
• HDMI output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video output mode HDMI/VGA simultaneous output

• Decoding
• Video decoding format H.265+/H.265/ H.264+/H.264
• Recording resolution 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback 4-ch
• Decoding capacity 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream type Video, Video & Audio

• Internet
• Remote login 16
• Protocols TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Network interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

• PoE
• Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• System parameters ≤ 75 W
• Standard IEEE 802.3 af/at

• Interfaces
• SATA 1 SATA interface
• Capacity Up to 6 TB capacity for each disk
• Warning signal input/output N/A
• USB interface Rear panel: 2 × USB 2.0

• Main
• Power supply 48 VDC, 1.8 A
• Power consumption ≤ 10 W (without HDD and PoE off)
• Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Moisture resistance 10% to 90%
• Size

  285 × 210 × 48 mm (11.2" × 8.3" × 1.9")

• Weight ≤ 1 kg (without HDD, 2.2 lb.)

• Certificates
• CE EN50130-4, EN 61000-3-2, EN 61000-3-3
