Oem BBC micro:bit 2 GO - educational module Cortex M4 accelerometer Bluetooth LED 5x5 + accessories
3061759 AN-18160
5051259252592
Shipping 9-14 b.d.
All about the product

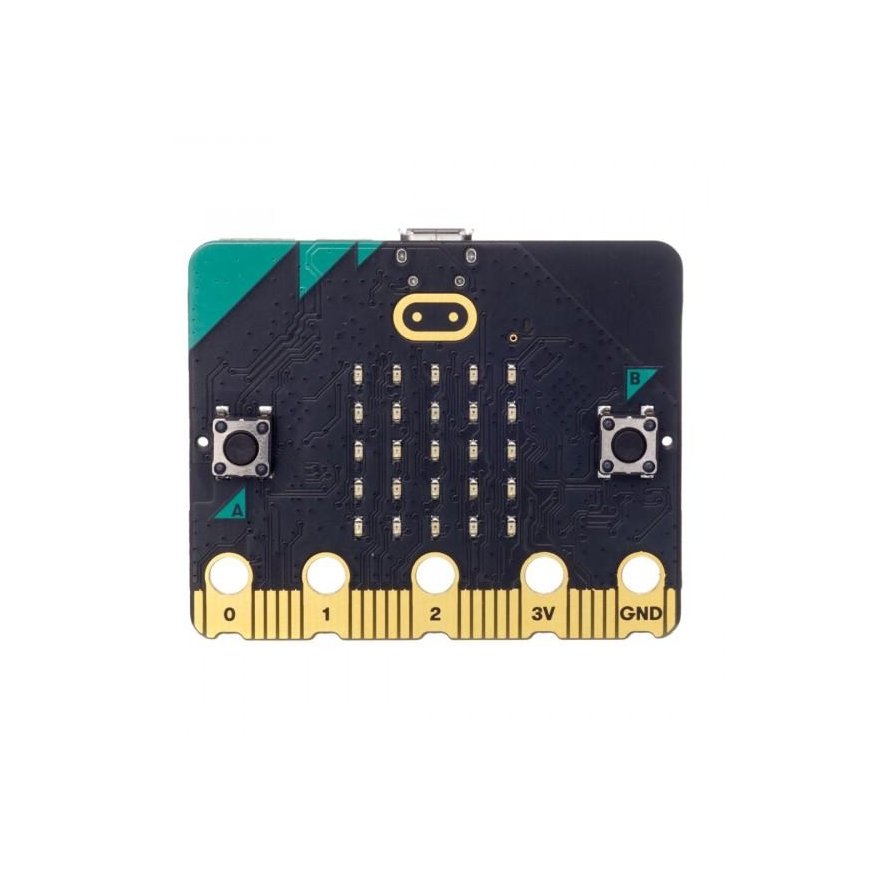

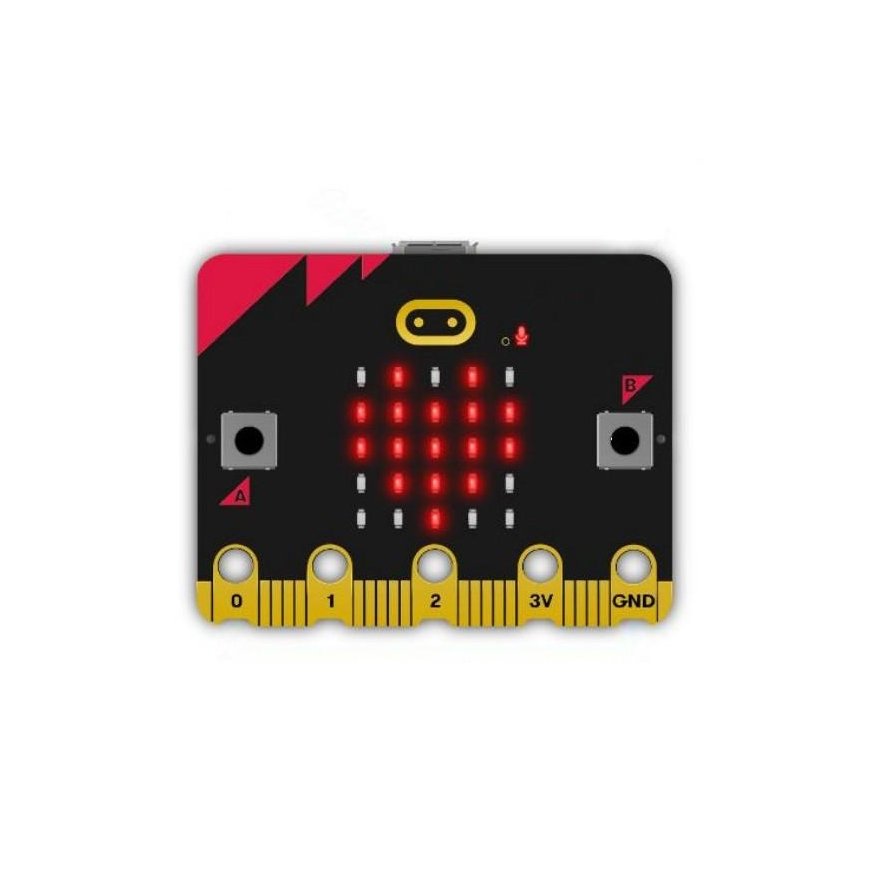

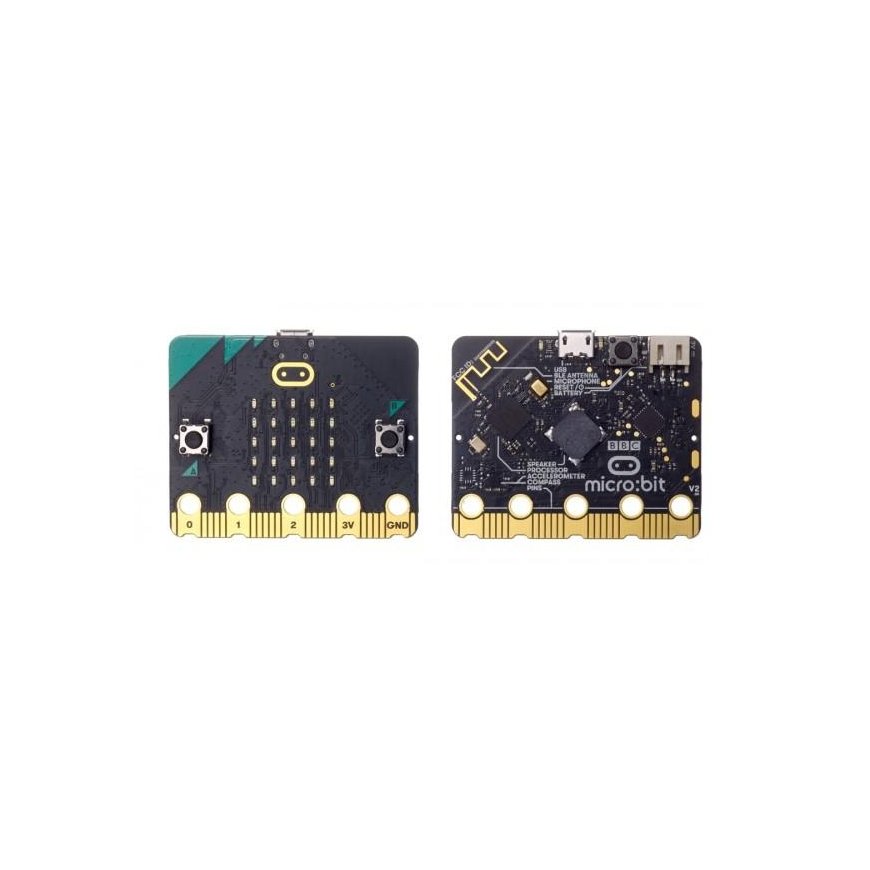

BBC micro:bit 2 GO development board based on nRF52833 chip with ARM Cortex-M4 core. It has built-in MEMS microphone, speaker, touch button, accelerometer, magnetometer, Bluetooth 5.0, 5x5 LED display and many more. The kit includes the micro:bit 2 module, a basket with two AAA batteries and a microUSB cable. The module was designed to teach programming to the youngest users.
The Micro:bit 2 Go kit includes the necessary accessories to get started with the module. The kit includes the BBC micro:bit 2 board, a microUSB cable for communication with a computer, a battery case with a power cable and two AAA batteries. The box also includes instructions on how to get started with the kit.
Changes compared to the previous version
- Tap the logo button
- Built-in MEMS microphone
- LED power and microphone activity indicator
- Built-in speaker
- There is a recess in the 20-pin connector on the edge of the PCB
BBC micro:bit 2 specifications:
- Chip: nRF52833
- Flash memory: 512 kB
- RAM: 128 KB
- Microphone: MEMS with LED activity indicator
- Loudspeaker
- Touch logo: touch button
- Edge connector: 20-pin, 4 GPIO, PWM, I2C, SPI, external power supply
- 5 ring terminals
- Connectivity: 2.4 GHz / Bluetooth 5.0
- Power supply: 5V - microUSB / 3V - edge connection or batteries. LED power indicator, power off button (press and hold)
- Pin current capacity: 200 mA
- Motion sensor: ST LSM303
- Dimensions: 50x40mm
BBC micro:bit 2 programming
The Micro:bit 2 module was designed to teach programming to the youngest users. It can be programmed in the web environment, the micro:bit editor, or the Mu editor. After creating the script, connect the module to the computer with a microUSB cable and upload the created script. The device connected to the computer is displayed as a flash drive.
The board can also be programmed wirelessly via Bluetooth and an intuitive mobile app, allowing greater integration with the BBC micro:bit 2 platform.
https://www.youtube.com/watch?v=1NYyblein6w
The BBC micro:bit 2 GO is an advanced educational module with an integrated circuit, with a Cortex M4 processor at its core, with a built-in accelerometer, Bluetooth and a 5x5 LED matrix. An efficient microcomputer can be used for both learning and entertainment, making learning programming fun and hands-on. Thanks to the BBC micro:bit 2 GO, it is possible to create interesting educational projects in the MakeCode environment by arranging the following blocks with coded commands.
Everything you need to get started with the BBC micro:bit 2 GO
The BBC micro:bit 2 GO kit comes with all the accessories you need, so you can start learning to code right out of the box. The initial package of the educational module includes a basket with two AAA batteries, as well as a microUSB cable for connecting the board to a computer. This eliminates the need to buy additional peripherals and allows you to focus on playing with the BBC micro:bit 2 GO.
