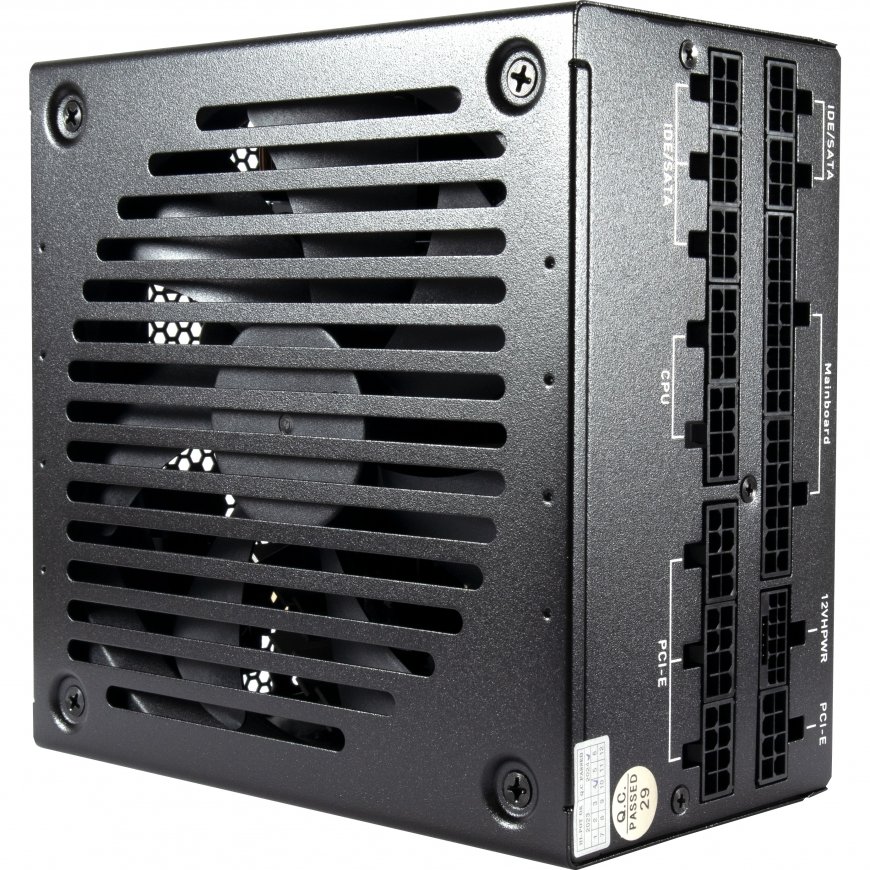

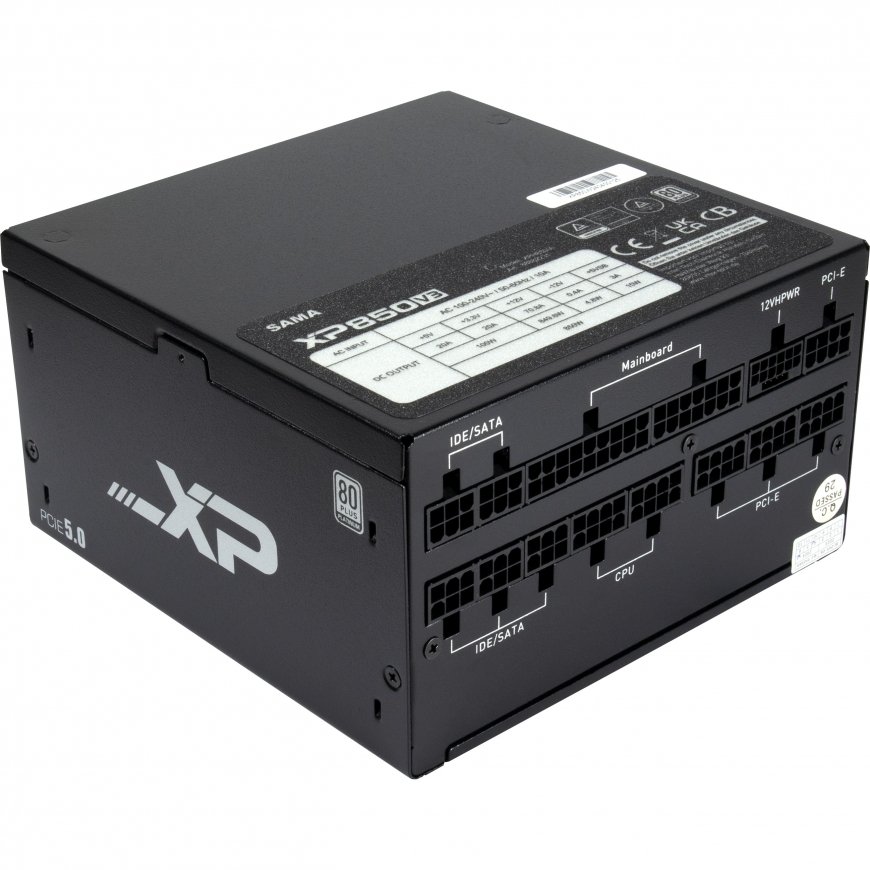

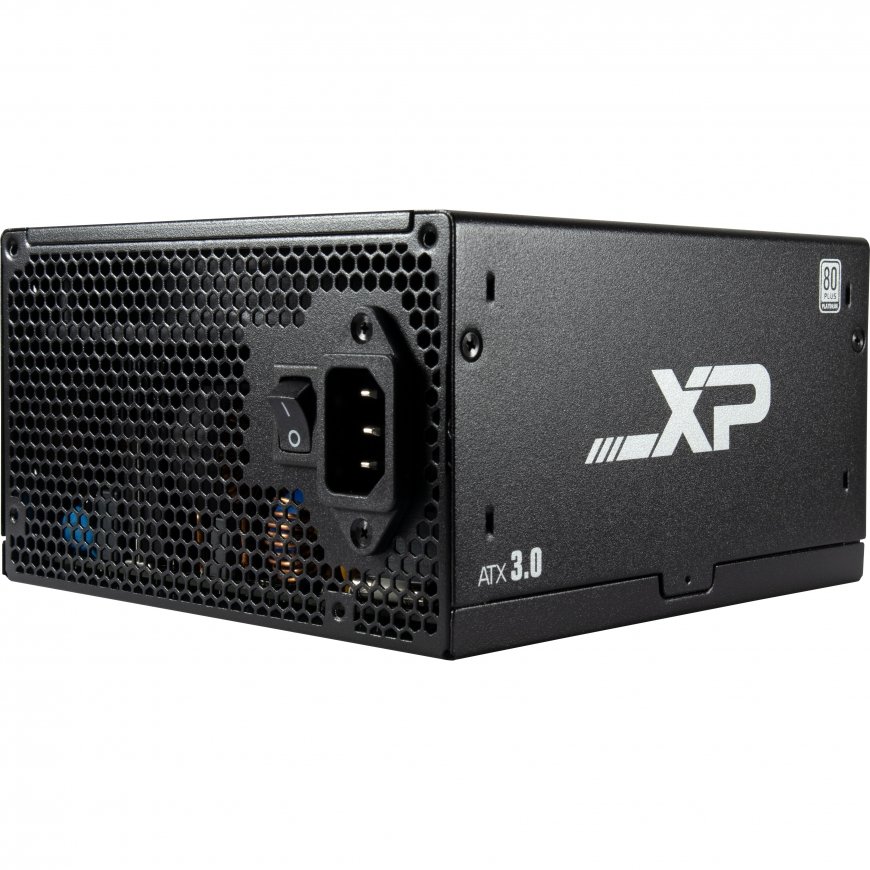

Inter-Tech SAMA XPH-850A power supply unit 850 W 20+4 pin ATX ATX Black
159.01 €
Monthly payment from 4,99 €
3059236 88882231
4260455648929
Shipping 4-6 b.d.
You are interested in this product?
All about the product
850 Watt power supply according to Intel ATX 3.0 Standard with 12VHPWR connectorThe SAMA XPH series is the most innovative series from Inter-Tech. The very good efficiency is achieved by the 80 PLUS® Platinum certificate - up to 93.90% is a word. In addition to the outstanding efficiency, the XPH series also has an intelligent fan control (IFC) which ensures that the 120mm fan of the power supply is controlled between 0 and 1600 rpm depending on the temperature. This achieves the best balance between essential cooling and pleasantly quiet operation.
The power supply unit is equipped for both the new PCIe 5.0 GPUs and the tried-and-tested GPUs with PCIe 6+2 connections. This makes the new XPH series the first choice for anyone looking for a reliable power supply for current and future GPU generations. A 5-year full warranty provides security.
Power | |
| Input current | 8/10 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.4 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 850 W |
Performance | |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| Number of EPS connectors | 2 |
Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 50 - 95% |
Weight & dimensions | |
| Weight | 2.5 kg |
| Width | 150 mm |
| Depth | 155 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.94 kg |
| Package type | Box |
