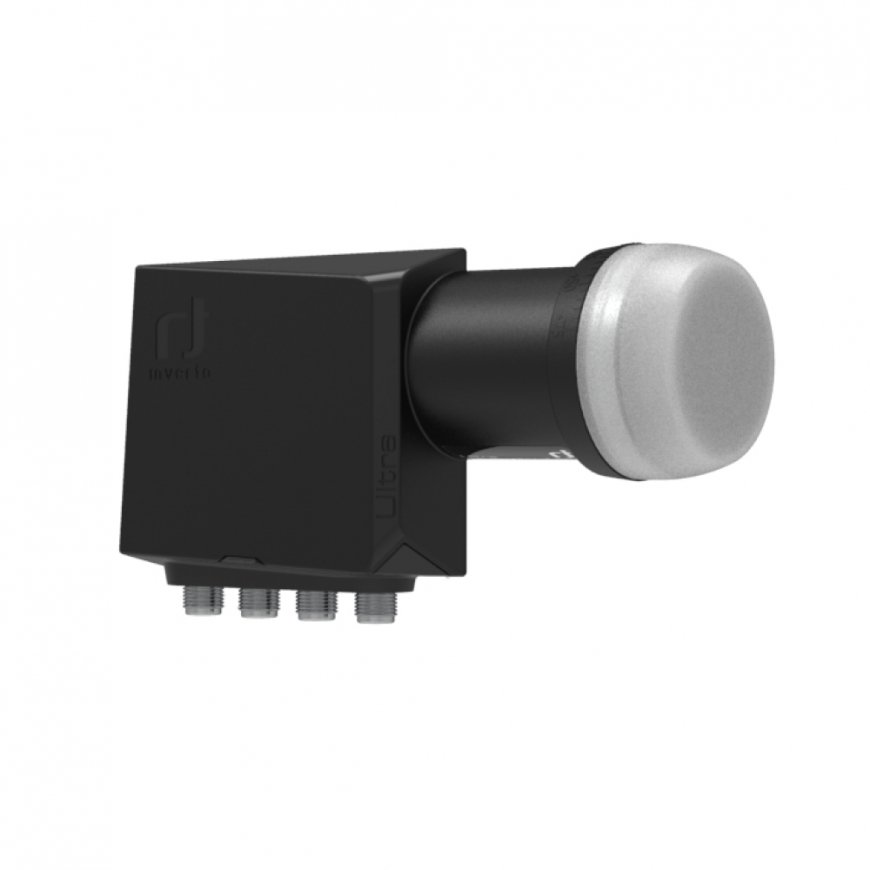

Inverto N-ULTRA-QDL412-IDLT Low Noise Block downconverter (LNB) 10.7 - 11.7 GHz Black, Grey
49.00 €
Monthly payment from 2,16 €
3058920 5930
5453002615157
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Inverto’s high-performance Ultra LNBs were specifically designed to address the need for superior reception under the edges of the satellite footprint skirt, small dish sizes or long coax cables. Thanks to its novel feed horn design and superior front-end components, this LNB provides higher conversion gain yet with low noise figure and best phase noise performance. The combination of innovative feed horn design, higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering and spurious signals. This LNB provides a leap in the overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to four Set Top Boxes with Single Tuner (or two STB with Twin Tuner each) and is ready for Ultra High Definition TV transmissions in 4K or 8K resolution. Designed to meet strict specifications and manufactured to the highest industry standards, this unique range of LNBs is an ideal solution for installations with challenging reception conditions.Features
| Product colour | Black; Grey |
| Weight | 177.4 g |
| Package weight | 306 g |
| Operating temperature (T-T) | -30 - 60 °C |
| Package dimensions (WxDxH) | 148 x 86 x 57 mm |
| Power consumption | 200 mA |
| Voltage Standing Wave Ratio (VSWR) | 2.0 : 1 max |
| RF connector type | F |
| Output impedance | 75 Ω |
| Input frequency range | 10.7 - 11.7 GHz |
| High band output frequency range | 1100 - 2150 MHz |
| Low band output frequency range | 950 - 1950 MHz |
| Conversion gain | 70 dB |
| Noise figure | 0.2 dB |
| High band input frequency range | 11.7 - 12.75 GHz |
| Low band input frequency range | 10.7 - 11.7 GHz |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Image rejection | 50 dBmW |
| Gain ripple (±) | 1 dB |
| Local Oscillator (LO) phase noise (10 kHz) | -80 dBc/Hz |
| Switching frequency (max) | 22 kHz |
| Conversion gain range | 60 - 70 dB |
| Spurious emission | -65 dBmW |
| Compliance certificates | CE; UKCA |
