Spacetronik SPS-D24B slot table top opening
3044156 5903031019605
5903031019605
Shipping 8-11 b.d.
All about the product

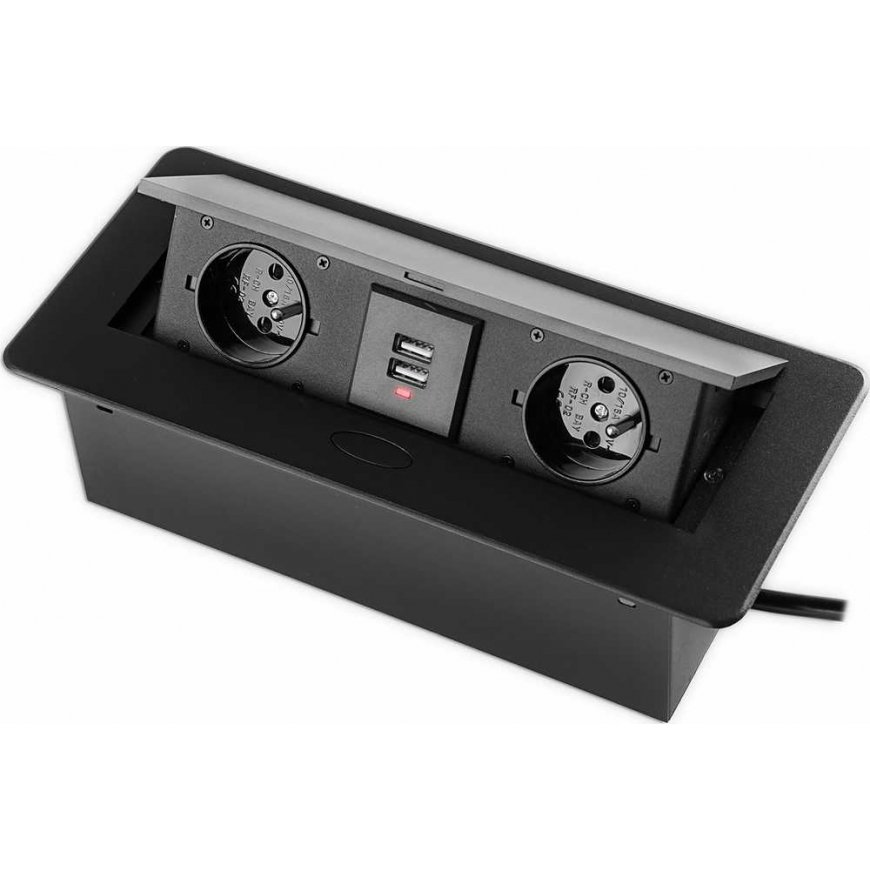

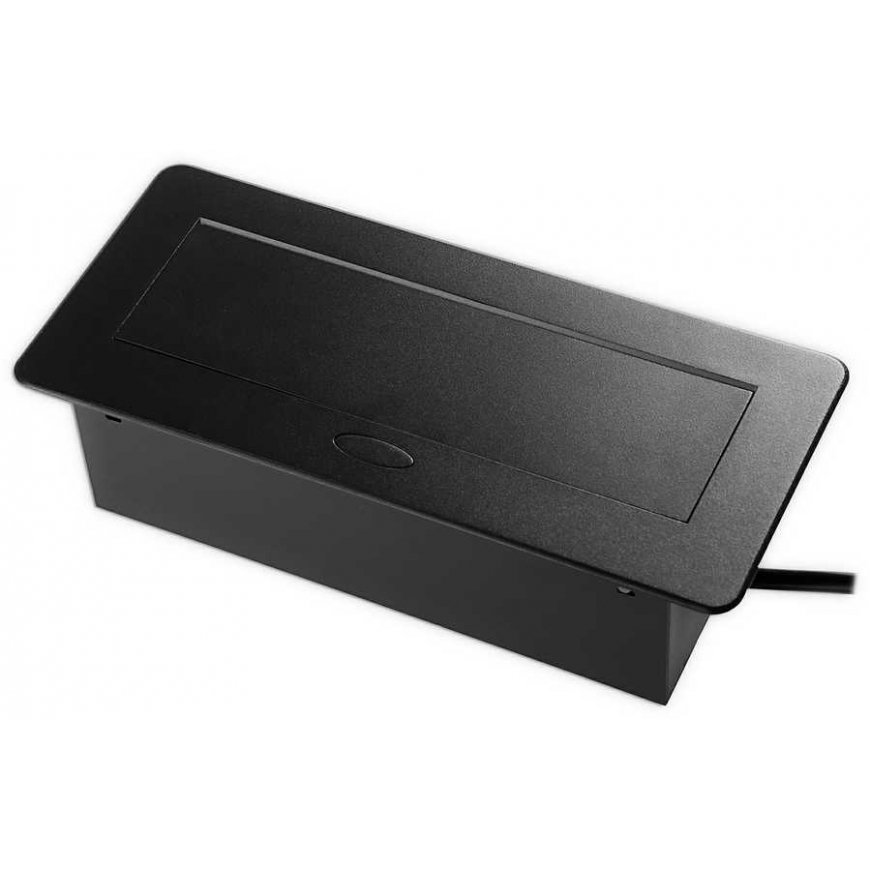

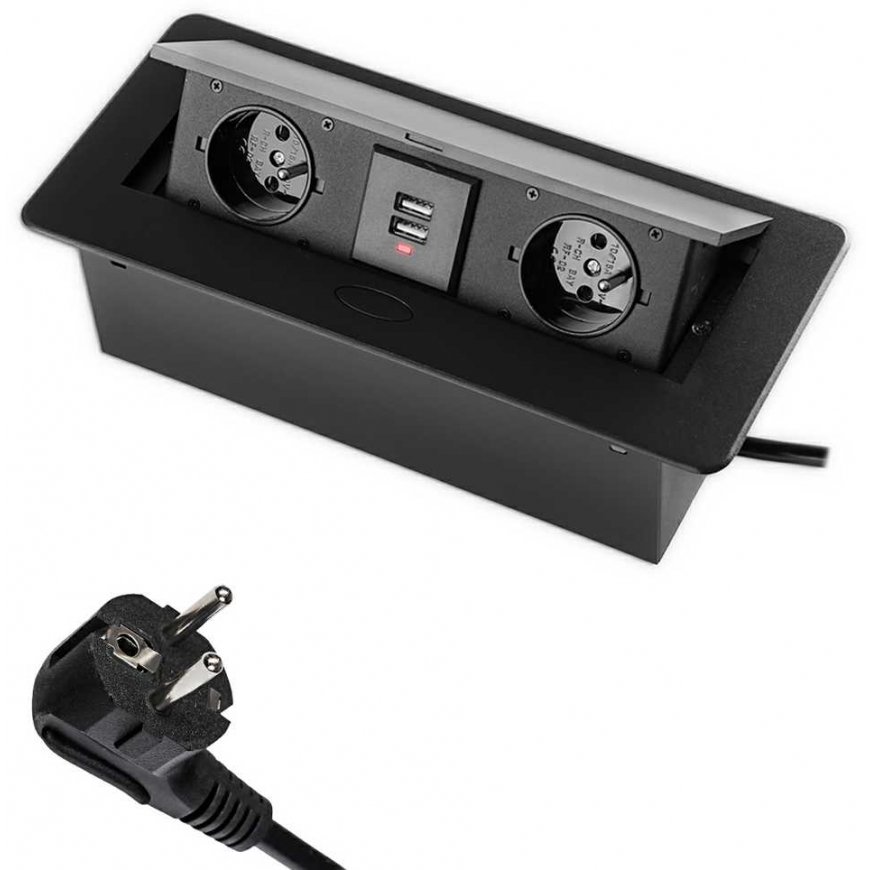

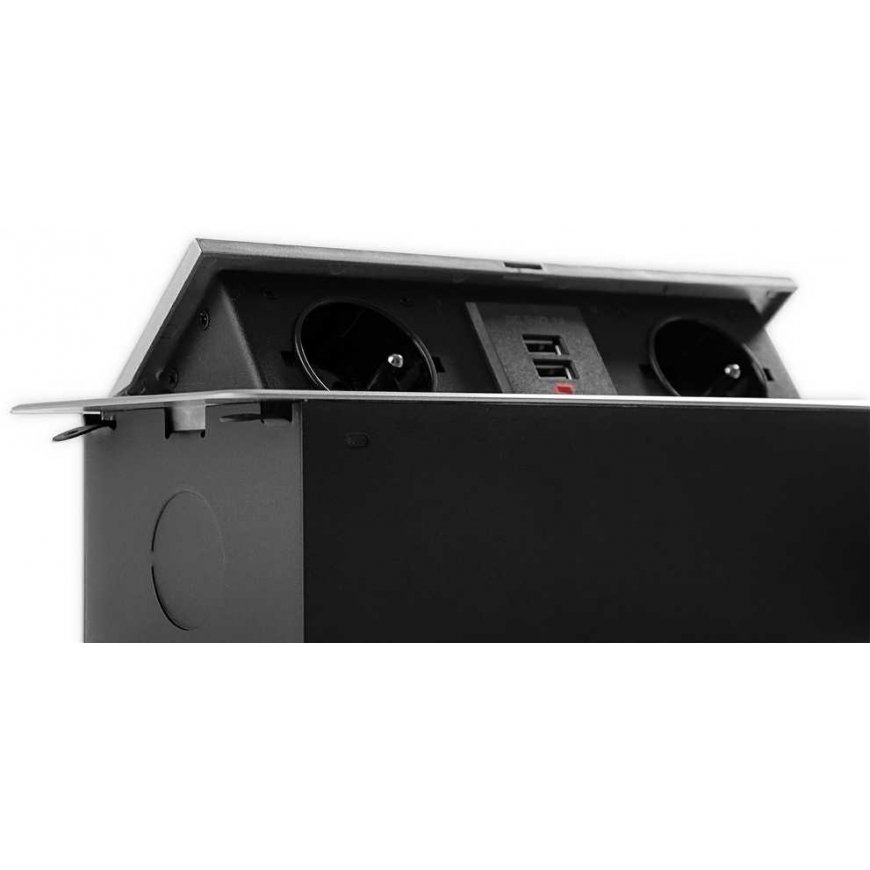

ERGOLINE SPS-D24B opening tabletop socket (black)
Mediaport Spacetronik ERGOLINE SPS-D24B is a modern solution that can be used in shops, showrooms, conference rooms, offices and homes. Press the button and the openings will open smoothly. Made of aluminum and high quality components. The product is intended for indoor installation on desks, table tops and tables both vertically and horizontally, providing access to socket outlets. The Mediaport comes complete with two 110-250V sockets (French type) and a dual USB charger.
Elegant and modern design
The ERGOLINE media port series is distinguished by a unique design that will satisfy the needs of even the most demanding users. Made with attention to every detail, mediaport is perfect for the workplace, showroom interior or conference room.

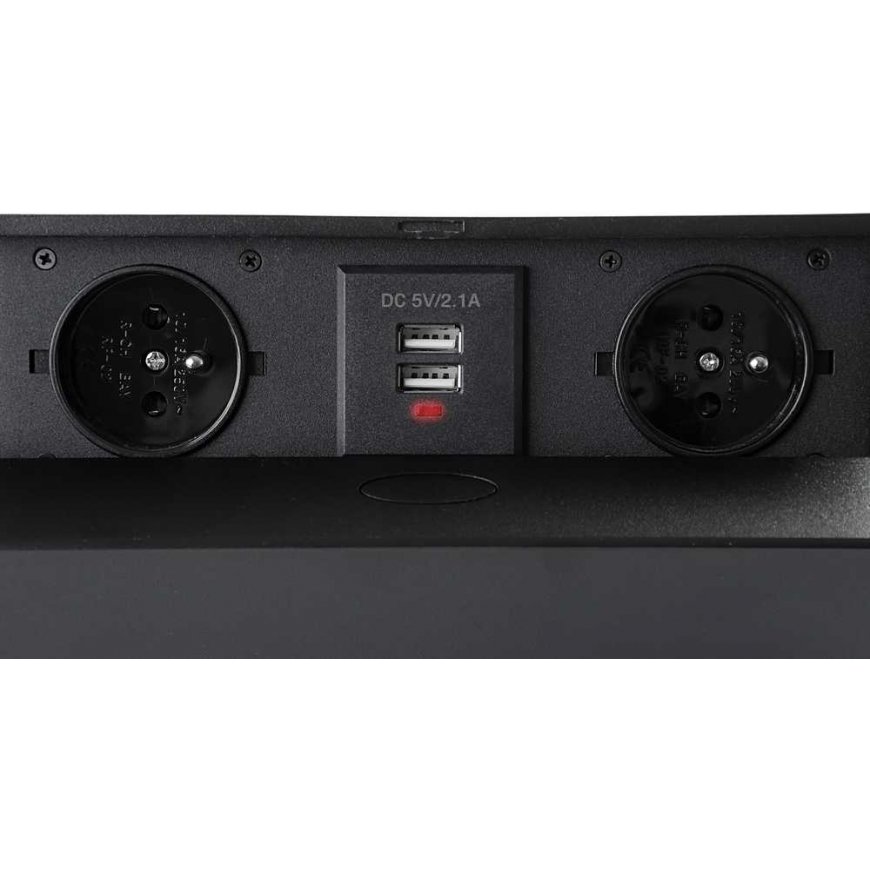

Charge your smartphone
The Mediaport SPS-D24B has a dual USB charger that allows you to charge your phone, tablet and other devices.
Easy installation
The opening of the table top slot is very easy to install.
1. Press the button to open the media port.
2. Remove the 2 screws on the sides at the top of the media port.
3. Remove the top panel.
4. Check the connections.
5. Cut a hole of the appropriate dimensions.
6. Insert the media port into the slot and screw.
Technical parameters and equipment
- Cable length: 1.5 m
- Mains power supply: 230 V 50 Hz
- 2x French socket 110-250 V (16 A).
- 1x double USB charger (2 A)
- Tin dimensions: 22 cm x 10.8 cm x 6.7 cm (width / height / depth)
- External dimensions: 26.6 cm x 11.8 cm
- Suggested tabletop hole size: 109mm x 224mm
