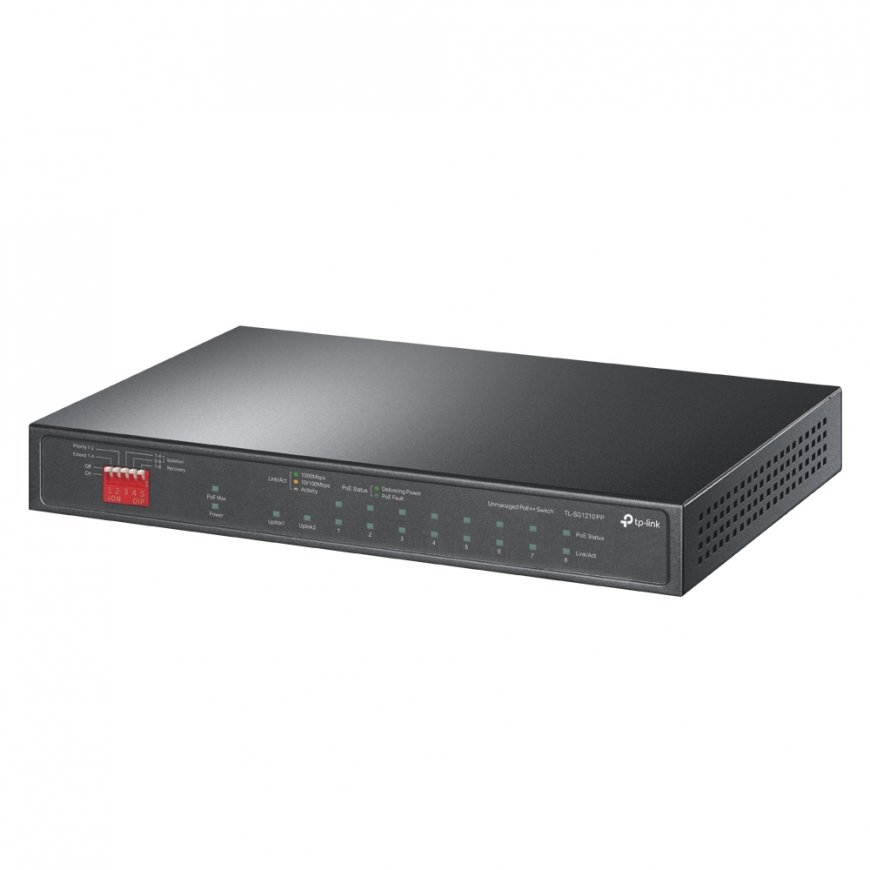

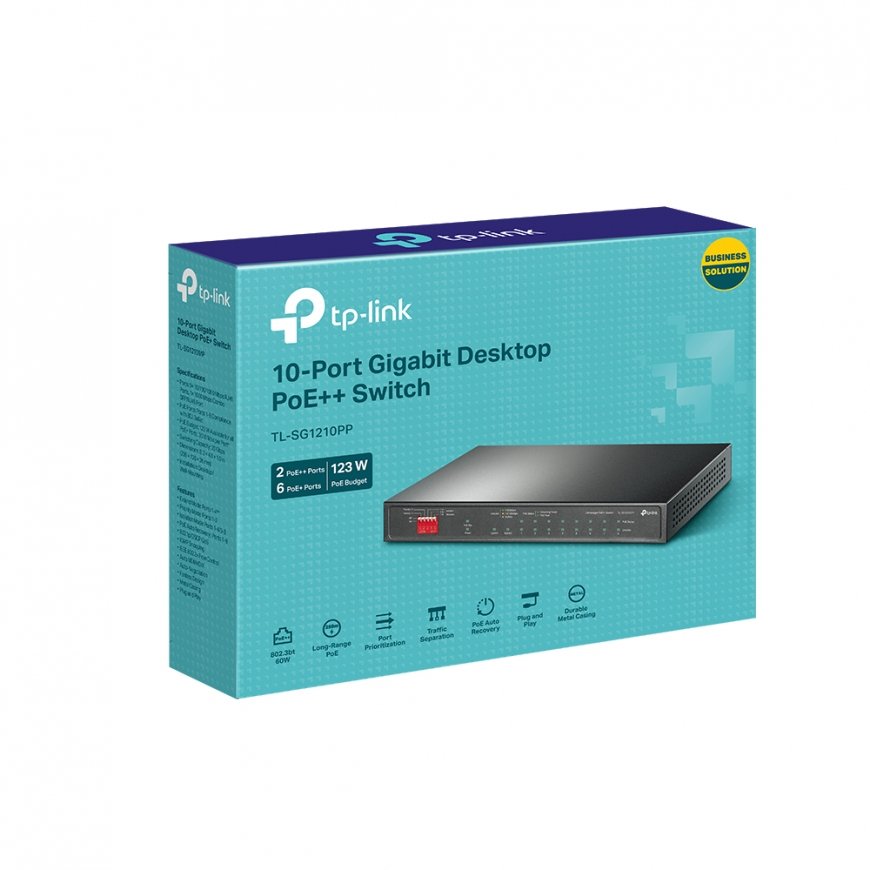

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
127,83 €
Monthly payment from 4.19 €
3037482 TL-SG1210PP
4895252500349, 0840030708480, 4895252500356
Shipping 2-3 b.d.
You are interested in this product?
TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet

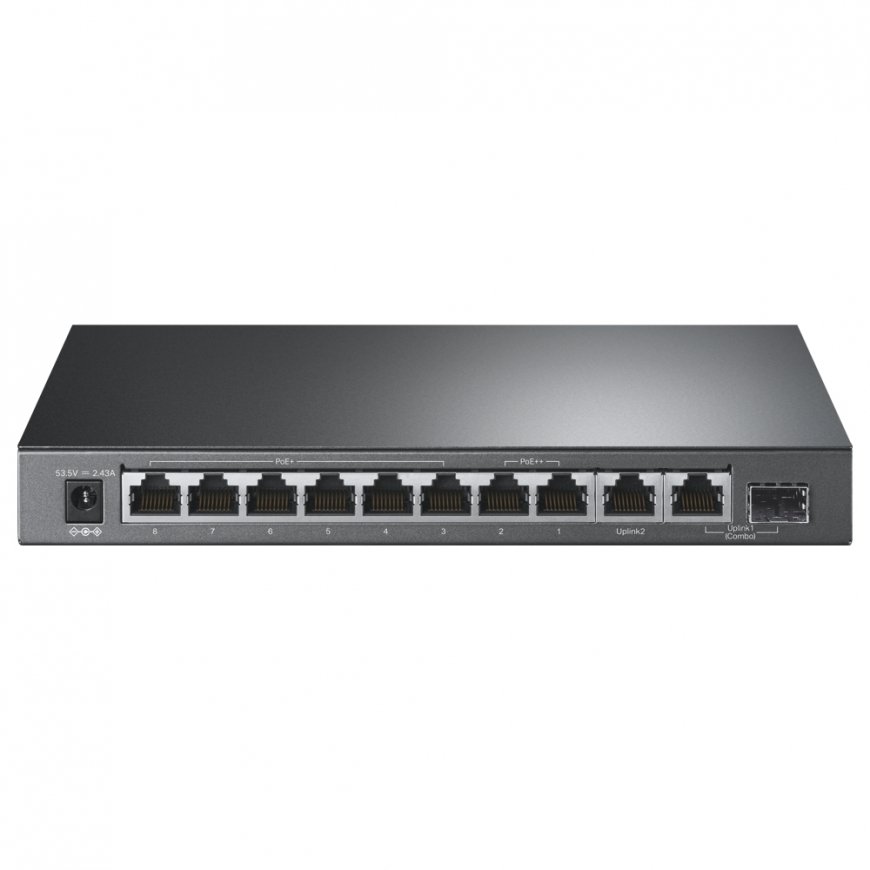

8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.
Overload Arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 ……> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.
Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
TL-SG1210PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ and 2-Port PoE++ TL-SG1210PP is a great selection for expanding your network.
| Product colour | Black |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Cables included | AC |
| Package type | Box |
| Certification | FCC, CE, RoHS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Networking standards | IEEE 802.3u; IEEE 802.3af; IEEE 802.3at; IEEE 802.3x; IEEE 802.3z; IEEE 802.3i |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Housing material | Steel |
| AC input voltage | 90 - 220 V |
| Input current | 2.43 A |
| Power source | DC/PoE |
| AC input frequency | 50 Hz |
| Input voltage | 53.5 V |
| Power consumption (max) | 144.1 W |
| Storage relative humidity (H-H) | 5 - 90% |
| Power over Ethernet (PoE) | Yes |
| Copper ethernet cabling technology | 10BASE-T; 100BASE-TX |
| Total Power over Ethernet (PoE) budget | 123 W |
| 10G support | No |
| Harmonized System (HS) code | 85176990 |
| User guide | Yes |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Flow control support | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| IGMP snooping | Yes |
| Rack mounting | No |
| Combo SFP ports quantity | 1 |
| Forwarding rate | 14.88 Mpps |
| Store-and-forward | Yes |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Heat dissipation | 482.17 BTU/h |
| Cable types supported | Cat5; Cat5e; Cat3; Cat4 |
| Auto-negotiation | Yes |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| MAC address auto-learning supported | Yes |
| Fanless | Yes |
| MAC address auto-aging supported | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 6 |
