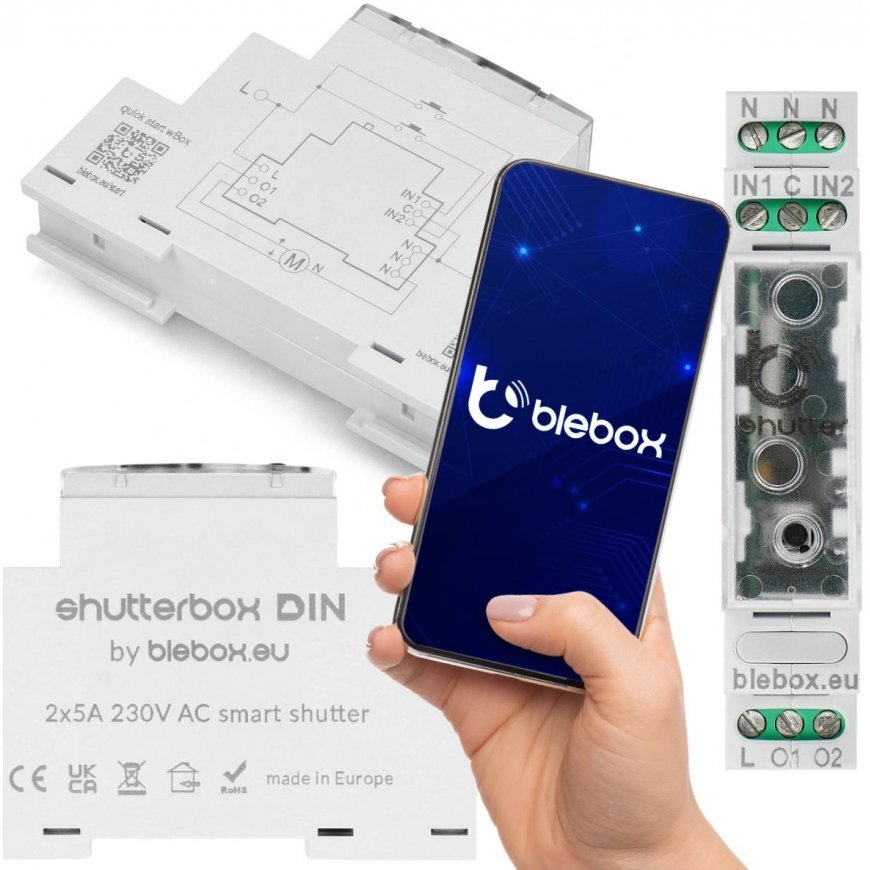

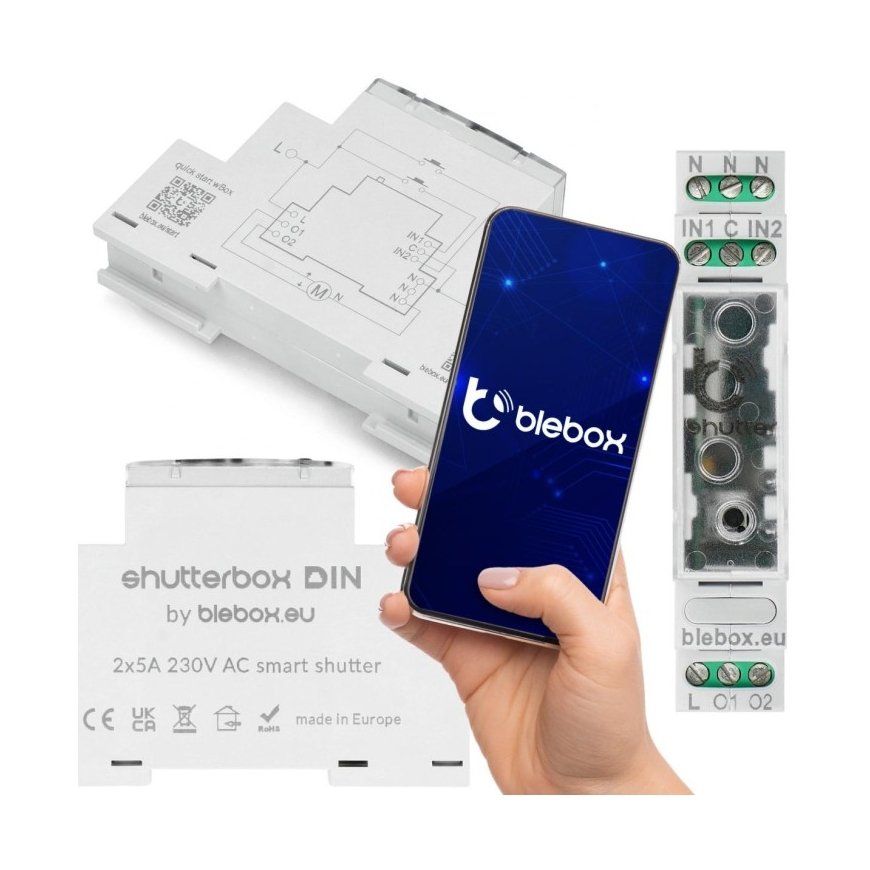

Shutterbox control module din Blebox
Shutterbox control module din Blebox
Shutterbox control module din Blebox
Shutterbox control module din Blebox
Shutterbox control module din Blebox
Shutterbox control module din Blebox

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Shutterbox control module din Blebox

59,00 €
Monthly payment from 2.42 €
2983966

37578

5900168580541

This product is no longer in stock

You are interested in this product?
(Read terms of service)
A module that allows remote control of blinds via WiFi using an app for mobile devices. The device is designed to be mounted on a DIN rail in a distribution box, so installation requires the assistance of an electrician. In addition to standard blinds, ShutterBox can control not only standard blinds, but also facade blinds, skylights, awnings, projector screens and blinds. To control the blinds, you can create a wired central button or a wireless button with an ActionBox module that sends a signal to the controller via WiFi. The controller is powered by 230 V voltage.

Main features:
  • Remote control of blinds
  • Mounting on a DIN rail
  • Facade blinds, skylights, awnings, projector screens and blinds can also be controlled
  • An individual schedule that opens or closes the blinds at a specific time
  • Astronomical clock function that opens the blinds at sunrise and closes them at sunset
  • Can be wired center button or wireless with ActionBox module
  • Compatible with voice assistants such as Google Home or Alexa
  • Ability to link with uRemote and sRemote remote controls and inBox button module
  • Automation together with other BleBox sensors:
    • windSensor - protects blinds, blinds and awnings from strong winds
    • AirSensor - closes the windows and prevents poor quality air from entering the house
    • rainSensor - closes the windows when it rains
    • tempSensor - closes the blinds so that the room is not heated by the sun
Specifications:
  • Mounting: on 35 mm DIN rail
  • Supply voltage: 230 V AC
  • Power consumption: < 1 W
  • Number of outputs: 2
  • Maximum current: 2x 5 A (5 A for each output)
  • Maximum power:
    • AC1 (ohmic, power factor: 0.95): 2x 5 A / 230 V AC = 2x 1150 W
    • AC3 (IEC60947-4-1): 2x ~0.15 kW / 240 V AC
  • Input voltage range: 12V to 230V AC/DC
  • Supported buttons: monostable, two-state
  • Signaling on the body: colored lighting
  • Transmission standard: µWiFi, compatible with WiFi, 802.11g
  • Transmission frequency: 2.4 GHz
  • Transmission type: two-way, encrypted
  • API: Open
  • Degree of protection: IP20
  • Body: ABS, acrylic
  • Operating temperature: from -20 °C to 50 °C
  • Dimensions: 98.8 x 17.5 x 64.5 mm
