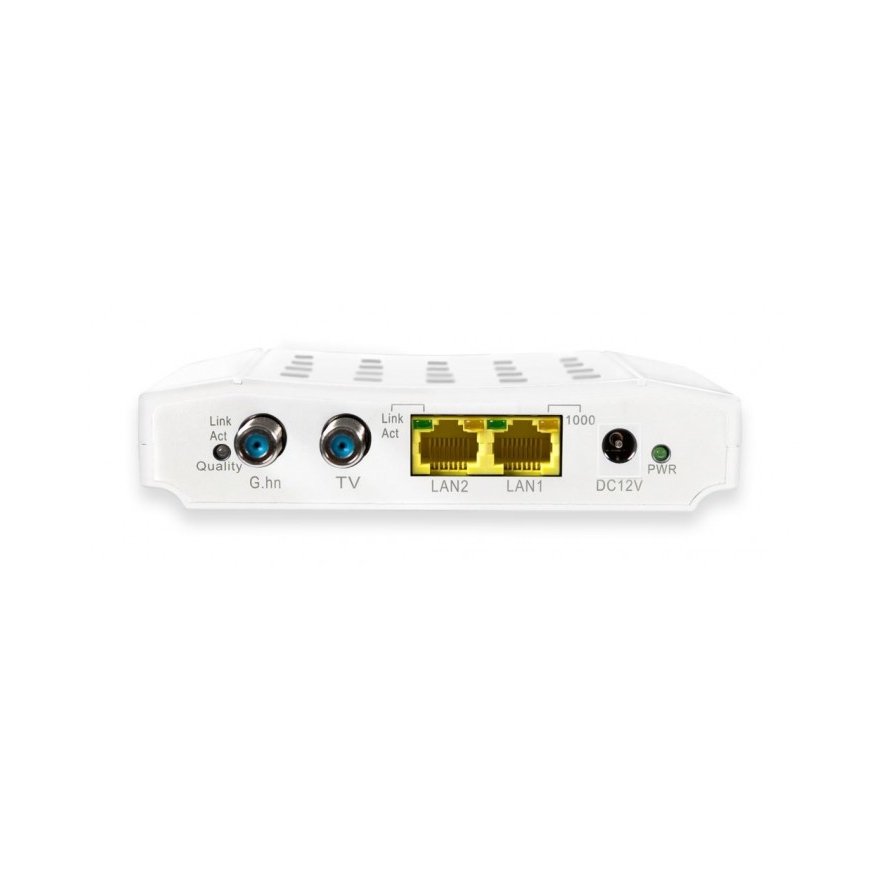

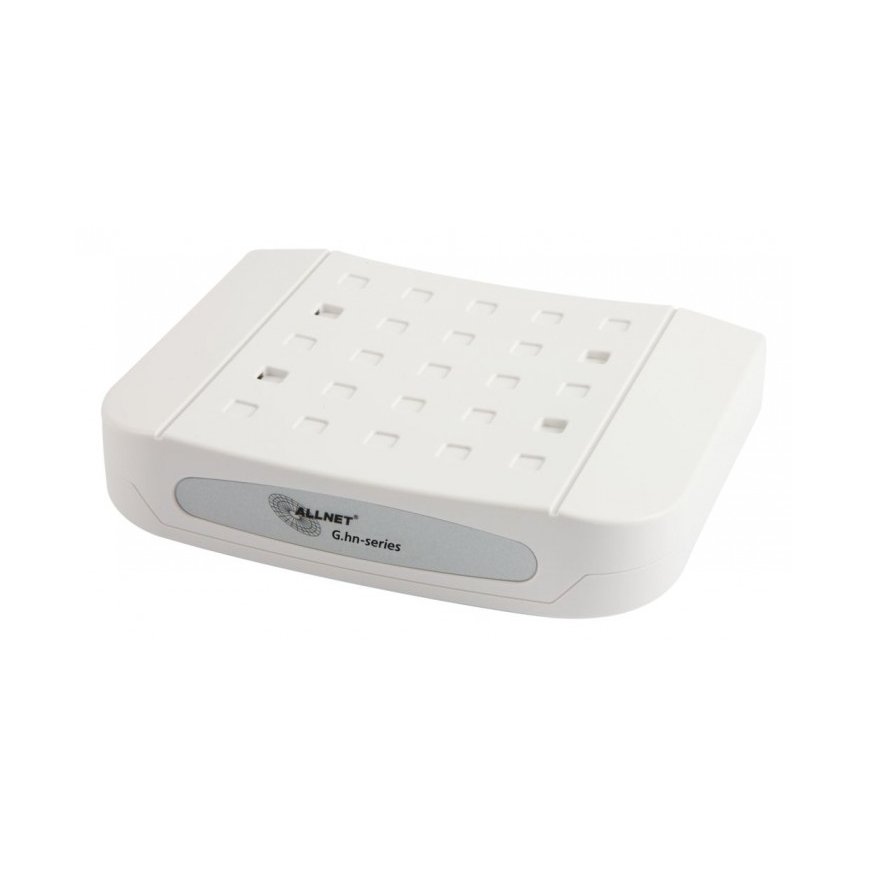

ALLNET ALL-GHN102-COAX bridge/repeater Network bridge White
150.92 €
Monthly payment from 4,79 €
2976150 ALL-GHN102-COAX
4038816051400
Shipping 15-16 b.d.
You are interested in this product?
All about the product
With the G.HN Gigabit Ethernet Bridge ALL-GHN102-Coax, you can, with the existing TV cabling, expand your home network at home. There is no additional network wiring required. You can simply use the existing coax wiring in the wall. With the ALL-GHN102-Coax they can as quickly expand your network without rewiring and with little effort.- up to 500 Mbps G.hn Port as Homenetwork-Backbone over TV-Wirering
- Two 100 / 1000Mbps Gigabit Ethernet Ports for Ethernet-Terminals (PC, Set-Top-Box, TV, WiFi-AP´s or other Ethernet-Devices with RJ45-Ethernetport...)
- Energyefficiency (green) Ethernet-Support
- Filter Built-in to Eliminate Noise from TV Signal Indication
- 6MHZ - 76MHz
- QoS Priority Mapping Support
- Tag VLAN Configuration
- IGMP Snooping Control
- Status and Statistic
- up to 15 devices possible
Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az, IEEE 802.1p |
| Ethernet LAN | Yes |
| Auto MDI/MDI-X | Yes |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Design | |
| LED indicators | Yes |
| Product colour | White |
| Product type | Network bridge |
Power | |
| AC input voltage | 12 V |
| Power supply | 4 W |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Other features | |
| Dimensions (WxDxH) | 130 x 95 x 32 mm |
| Operating temperature (T-T) | -10 - 65 °F |
Certificates | |
| Certification | CE |
