-4%
The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

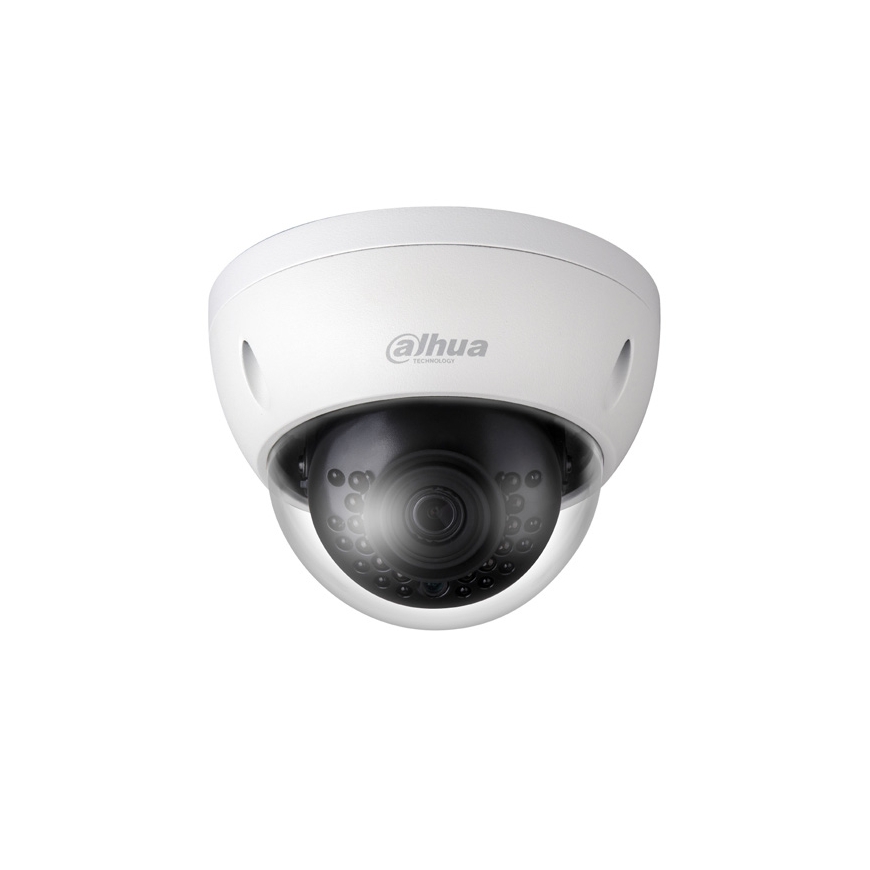

Dahua Technology Lite DH-IPC-HDBW1420EP-0280B Dome IP security camera Indoor & outdoor Ceiling
27,32 €
26.32 €
2943621 1.0.01.04.17068
6939554911910
Shipping 2-3 b.d.
You are interested in this product?
All about the product
System OverviewThe IR Megapixel Fixed MiniDome camera delivers 4MP resolution with a choice of 2.8mm or 3.6mm wide angle lens options. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size
applications at an affordable price.
Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m
(98ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.
Environmental
With a temperature range of -30 °C to +60 °C (-22°F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For enviorments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.
Protection
Supporting ±10% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides protectection against the camera and its structure from the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer
Smart H.264+
Delivering high quality video without straining the network, Smart H.264+ is the optimized implementation of H.264. The Smart H.264+ encoding platform includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing a savings of up to 70% of bandwidth and storage when compared with standard H.264.
Features
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | White |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Weight | 340 g |
| Height | 81 mm |
| Type | IP security camera |
| Package weight | 470 g |
| Connectivity technology | Wired |
| Mobile operating systems supported | Android; iOS |
| Certification | CE (EN 60950:2000); UL:UL60950-1; FCC: FCC Part 15 Subpart B |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.3af |
| Housing material | Metal |
| Power consumption (typical) | 4.3 W |
| Ethernet interface type | Fast Ethernet |
| Mounting type | Ceiling |
| Power source type | PoE |
| Zoom capability | Yes |
| Interface | RJ-45 |
| Angle of rotation | 355° |
| Placement supported | Indoor & outdoor |
| Analog signal format system | PAL |
| Tilt angle range | 0 - 65° |
| Digital zoom | 16x |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP |
| Day/night mode | Yes |
| IK code | IK10 |
| Camera shutter speed | 1/3(4)~1/100000 s |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Focus adjustment | 2.0 |
| Video compression formats | H.264; H.264+ |
| Built-in HDD | No |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Diameter | 11 cm |
| Number of cameras | 1 |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Browser supported | IE, Chrome, Firefox, Safari |
| Mirror | Yes |
| Cabling technology | 10/100Base-T(X) |
| Number of illumination LEDs | 12 |
| Quality of Service (QoS) support | Yes |
| Internal memory | 256 MB |
| Number of users | 20 user(s) |
| Minimum illumination | 0 lx |
| White balance | Auto; Manual; Outdoor; Natural; Lamp |
| Gain control type | Auto/Manual |
| Pan range | 0 - 355° |
| Automatic gain control | Yes |
| Video resolutions | 1920 x 1080; 1280 x 720; 2688 x 1520; 2560 x 1440; 352 x 288; 704 x 480; 2304 x 1296; 704 x 576 |
| Frame rate | 30 fps |
| Total megapixels | 4 MP |
| Camera shutter type | Electronic |
| Night vision | Yes |
| LED type | IR |
| Video streaming | Yes |
| Progressive scan | Yes |
| RS-485 ports | 0 |
| Detect distance | 63 m |
| Observe distance | 25 m |
| Recognize distance | 13 m |
| Identify distance | 6 m |
| Night vision distance | 30 m |
| 3D NR (Noise Reduction) | Yes |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR); Variable Bit Rate (VBR) |
| Bit rate | H264H:80K ~ 10240Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Streaming method | Multicast; Unicast |
| ROM capacity | 16 MB |
| Management software | Smart PSS, DSS,Easy4ip |
| IR control | Auto; Manual |
| Client interoperability | ONVIF, PSIA, CGI |
| Number of video streams | 2 |
| Fixed focal length | 2.8 mm |
| Adjustment shutter speed | Auto/Manual |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
| Smart IR | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Fixed focus | Yes |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 56° |
