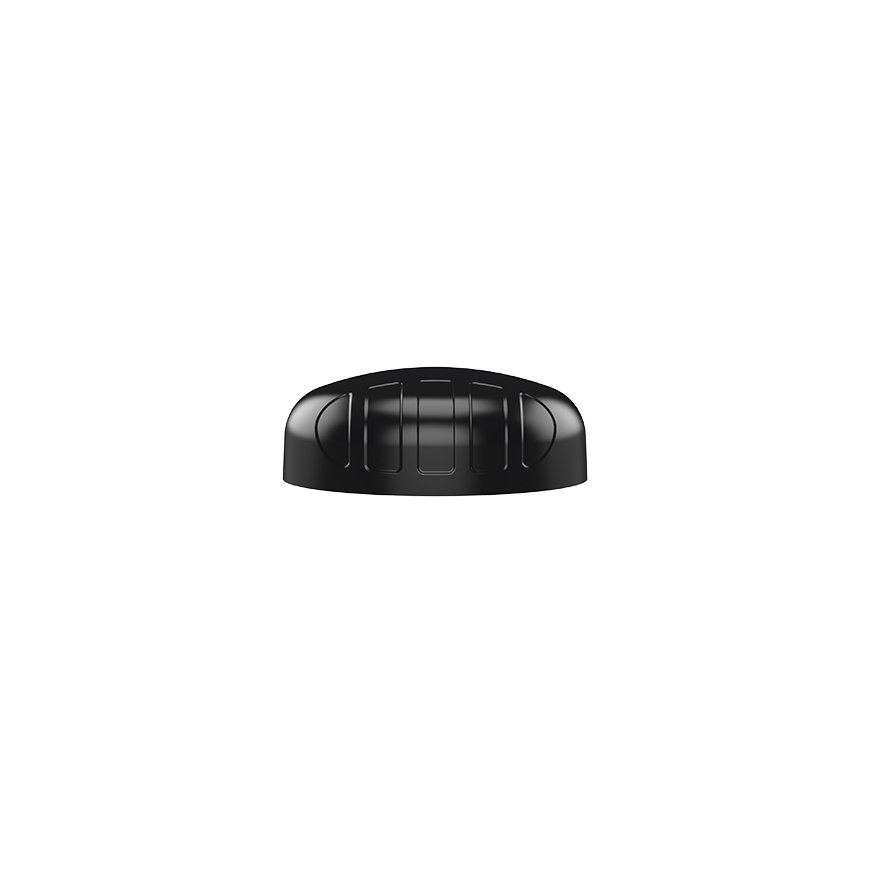

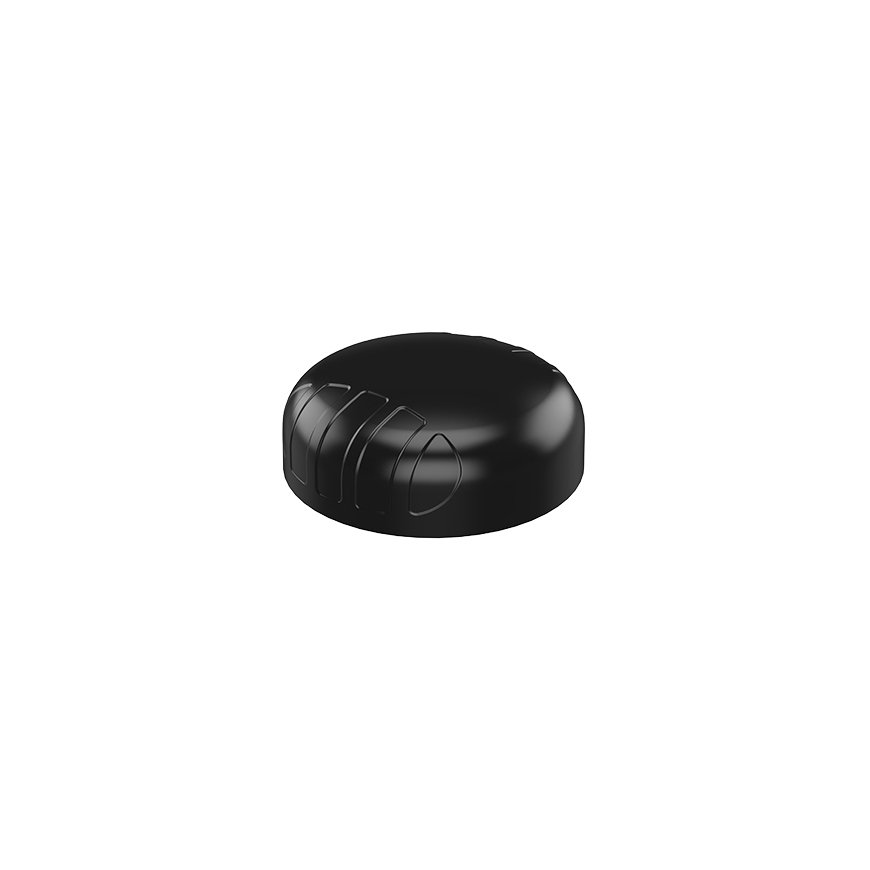

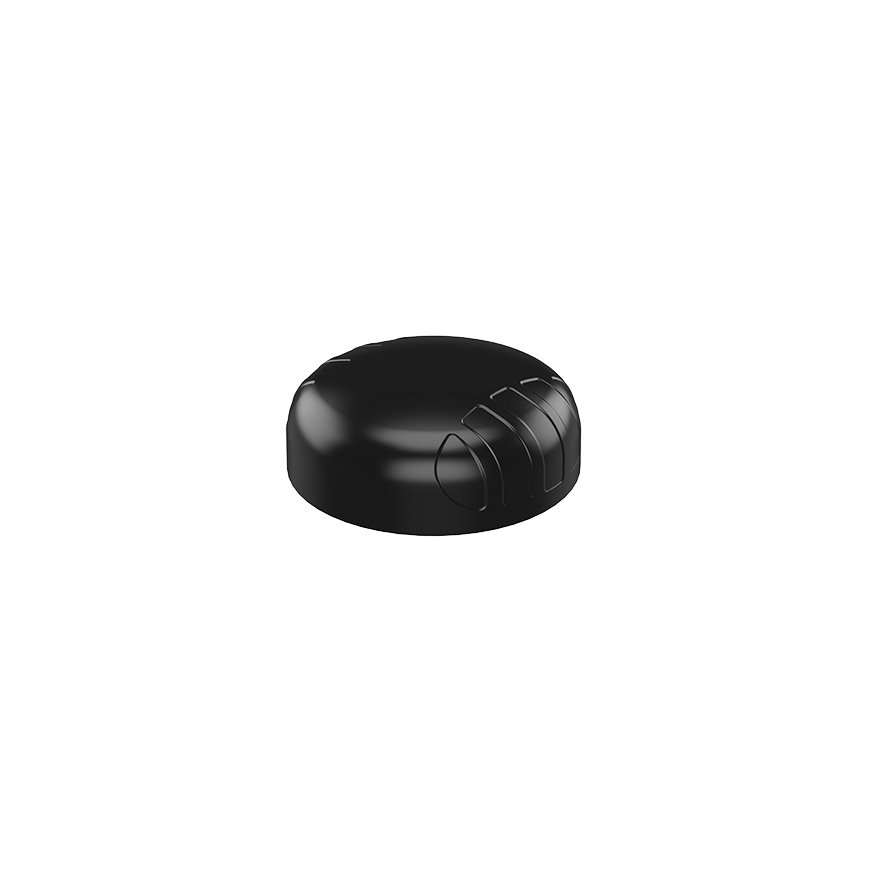

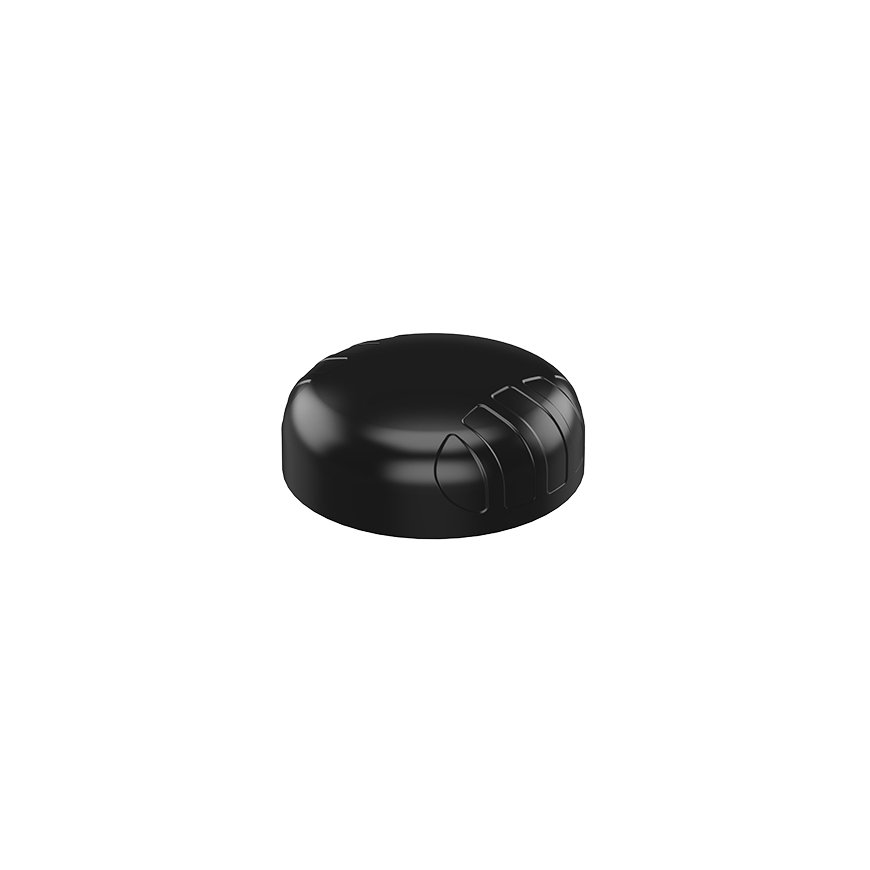

Poynting A-PUCK-0004-V1-01 network antenna Omni-directional antenna SMA 21 dBi
137,31 €
126.59 €
Monthly payment from 4,16 €
2936382 A-PUCK-0004-V1-01
6009880915224
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-4 is a 3-in-1 antenna system within a single enclosure, providing reliable and future-proof connectivity for 5G, LTE, and GPS applications.Wideband Cellular Coverage: Features 2x2 MIMO Cellular antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-4 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, and GPS connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.
Wireless LAN features | |
| Wi-Fi standards | 802.11g |
Mobile network | |
| 4G standard | LTE |
Design | |
| Product colour | Black |
| Housing material | Akrüülnitriil butadieen stüreen (ABS) |
| International Protection (IP) code | IP69K |
Antenna | |
| Antenna connector type | SMA |
| Antenna gain level (max) | 21 dBi |
| Antenna type | Omni-directional antenna |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Height | 36 mm |
| Weight | 426 g |
Packaging data | |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 120 mm |
| Package weight | 557 g |
| Package type | Box |
Other features | |
| Input voltage | 2.7 - 3.3 V |
| Frequency band | 0.617 - 4.2 GHz |
| Cable length | 2 m |

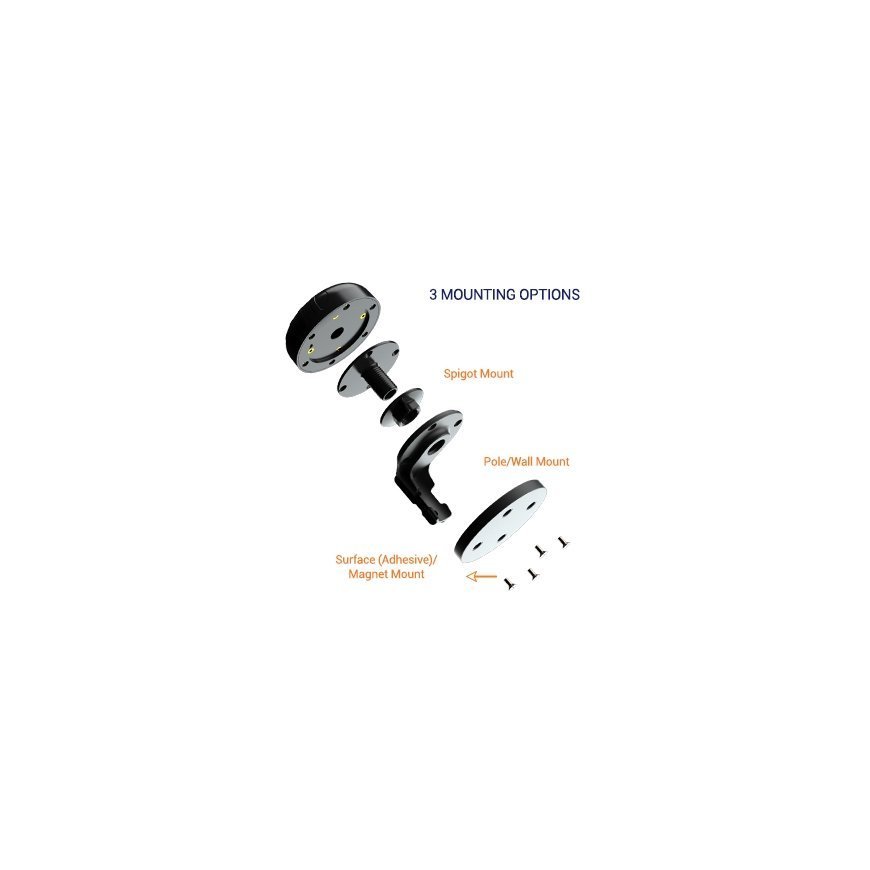

| Mounting | Universal |
Certificates | |
| Certification | CE, RoHS |
Technical details | |
| Compliance certificates | CE, RoHS |
Logistics data | |
| Quantity per pack | 1 pc(s) |
Packaging content | |
| Quick installation guide | Yes |
| Mounting kit | Yes |
