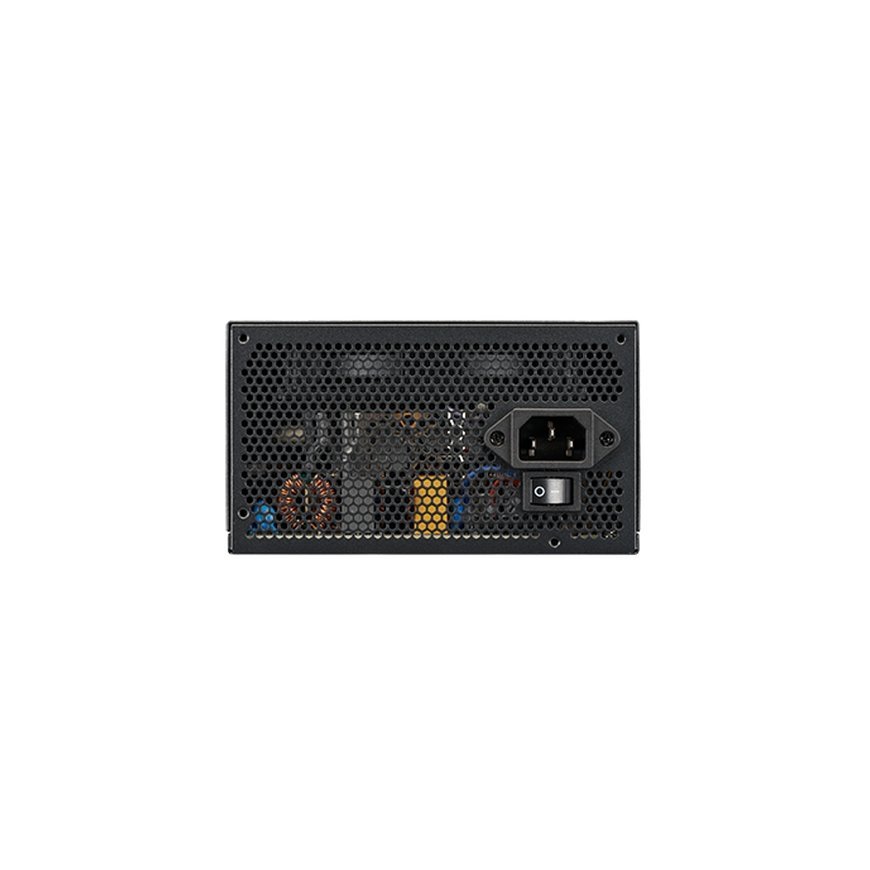

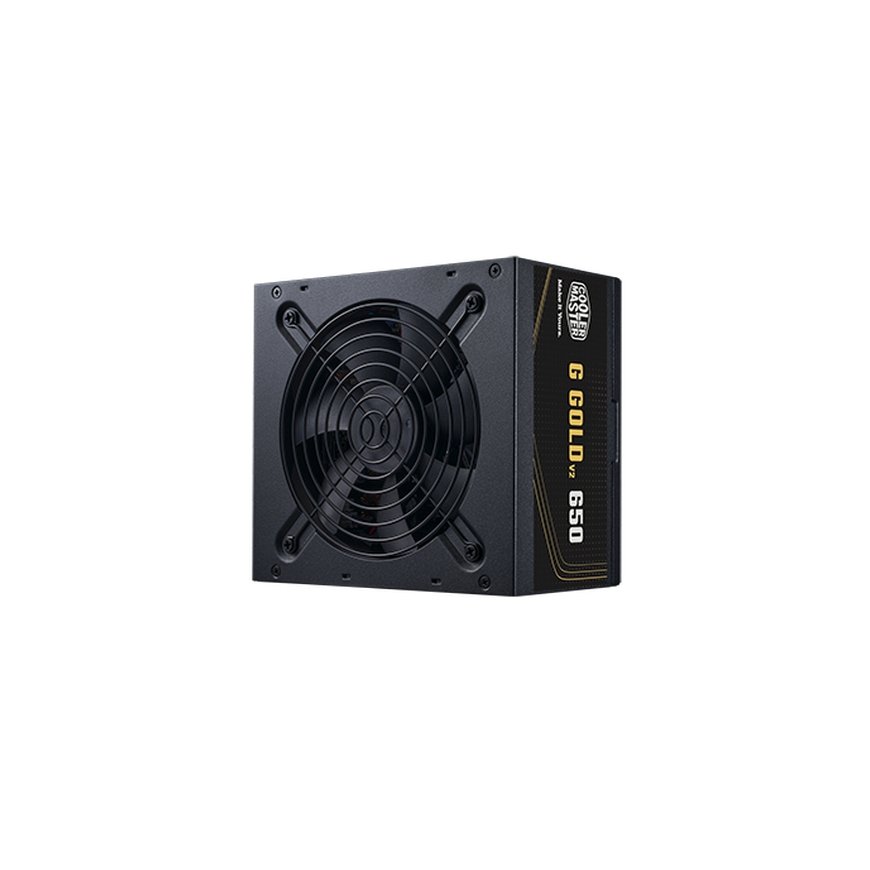

Cooler Master G Gold 650 V2 power supply unit 650 W 24-pin ATX ATX Black
79.00 €
Monthly payment from 2,93 €
2920145 MPE-6502-ACAAG-EU
4719512144534, 0884102116858
Shipping 13-14 b.d.
You are interested in this product?
All about the product
POWER EVOLVEDIntroducing the G Gold V2, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our G Gold PSU. With features such as 80 Plus Gold efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V2 provides valuable performance in multiple dimensions.
Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable.
Quiet HDB fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
80 Plus Gold efficiency certification
This unit is certified to achieve more than 90% efficiency at typical loads in a 115V test.
High temperature resilience
A 40°C maximum operating temperature allows for pushing your machine to the limits with overclocking and other high-intensity applications.
Embossed cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
ATX 3.1 support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Single +12V rail
All power comes from a single +12V source, ensuring consistent output through all connected cables.
DC-to-DC technology
The DC-DC circuit design offers reliable, stable output to all connected components.
2 EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 5 - 10 A |
| Power protection features | Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 650 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 50 cm |
| SATA power cable length | 700, 400, 550 |
| Peripheral (Molex) power cable length | 400, 550, 700 |
| PCI Express power cable length | 62 cm |
| EPS power connector (4+4 pin) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 1.65 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.05 kg |
| Package height | 110 mm |
| Package width | 190 mm |
| Package depth | 245 mm |
Other features | |
| EPS cable length | 67 cm |
Logistics data | |
| Master (outer) cases per pallet | 32 pc(s) |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case height | 215 mm |
| Products per master (outer) case | 5 pc(s) |
Certificates | |
| Certification | ErP 2014 Lot 3 |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), UKCA, EAC, BSMI, RCM, cTUVus, CCC |
