geo-FENNEL Geo6-XR GREEN SP Line level 40 m
531.86 €
Monthly payment from 14,60 €
2913918 533200
4045921010376
Shipping 7-11 b.d.
You are interested in this product?
All about the product

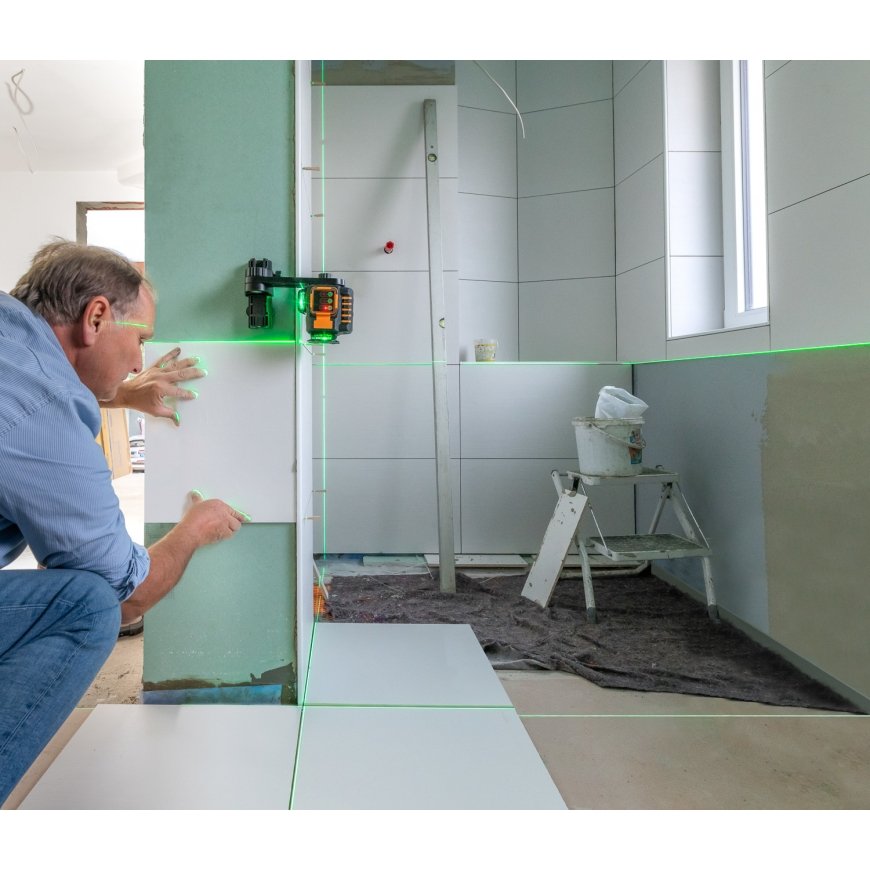

3x 360° highly visible green laser lines all perpendicular to eachotherProjecting right angles everywhere at the floor for straight anddiagonal laying of tiles
Installation and verification of correct floor height
Checking level, flatness and parallelism of walls and floors.

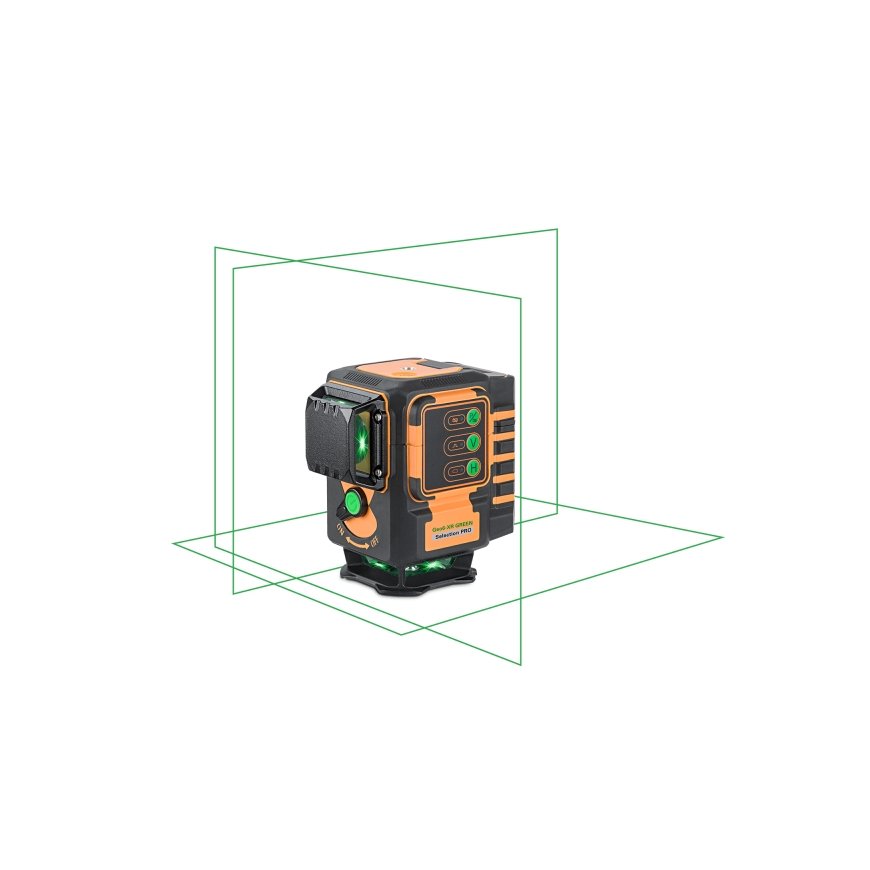

3 x 360° green laser lines - visible up to 40 m
6 mm minimum distance of the laser line to the wall
8 mm minimum distance of the laser line to the fl oor

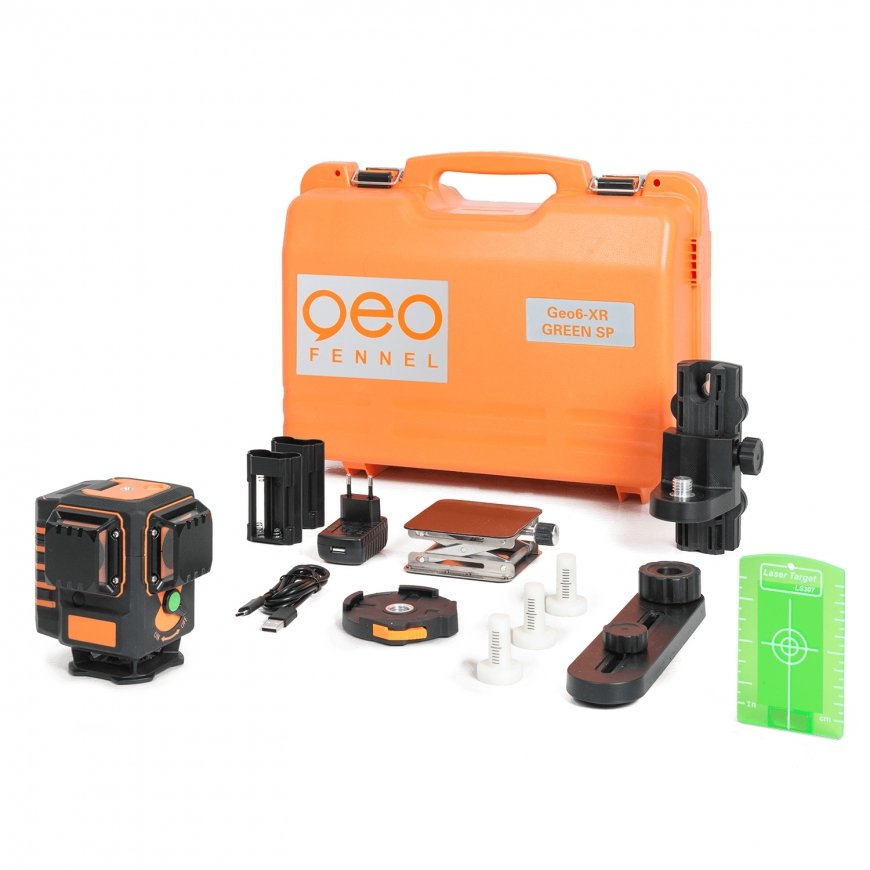

Height adjustable platform with a range from 25 to 85 mm
for precise height control when setting out fl oor coverings
20 mm fi xed height adaptor with 5/8“ thread
Height adjustable wall-mount with swivel-mount support rail
Optimise fl oor tile layout with free-hanging tripod mount
Monitor and correct fl oor levels using the height measurement pins
Pulse-function to extend working range with receiver (optional)
Features
| Product colour | Orange |
| International Protection (IP) code | IP54 |
| Width | 115 mm |
| Depth | 96 mm |
| Height | 118 mm |
| Type | Line level |
| Package type | Box |
| Battery type | Built-in battery |
| Operating temperature (T-T) | -10 - 45 °C |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power source | Battery |
| Operating time | 5 h |
| Maximum range | 40 m |
| Battery included | Yes |
| Number of batteries included | 1 pc(s) |
| Tripod mounting supported | Yes |
| Mounting bracket(s) included | Yes |
| Pouch | Yes |
| Laser class | 2 |
| Storage case | Yes |
| Tripod thread | 1/4; 5/8 |
| Levelling accuracy (±) | 3 mm/m |
| Self-levelling range (±) | 3° |
| Colour of laser beam | Green |
| Maximum range (with receiver) | 60 m |
| Beam direction | Horizontal/Vertical |
| Number of laser lines | 3 |
| Laser measuring stage | Yes |
