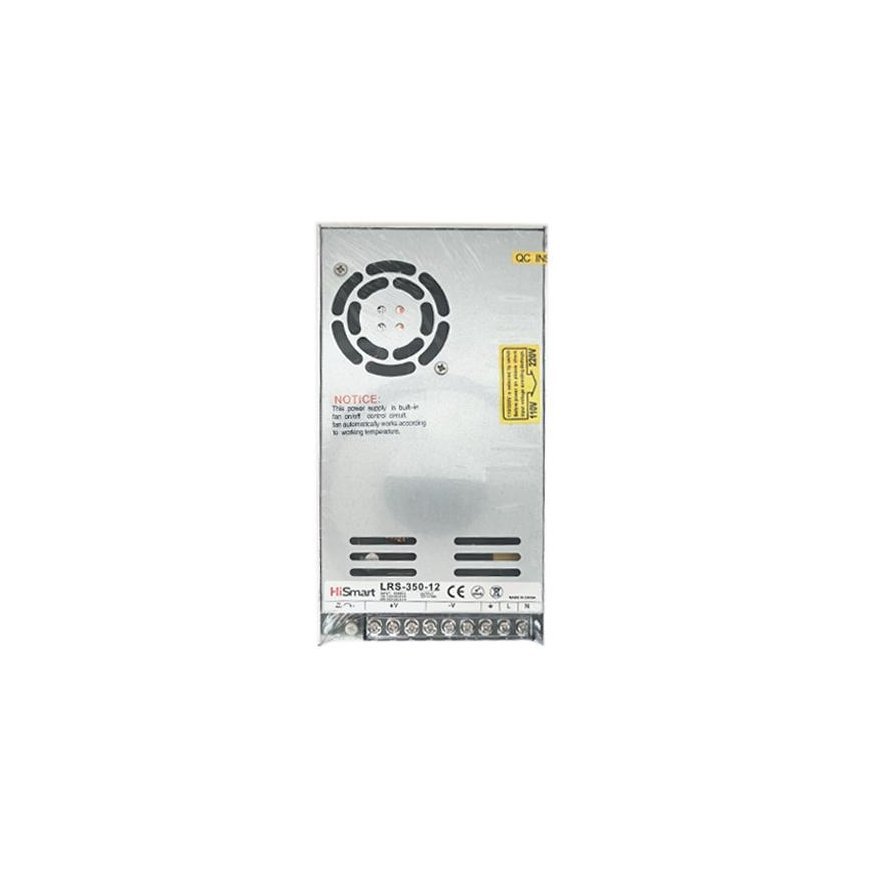

Hismart Power supply 12V, 29A, 350W
30,22 €
29.22 €
2912873 LRS-350-12
9990000700332
Shipping 2-4 days
You are interested in this product?
All about the product
Pulse power supply 12V, 29A, 350W, with cooling fan.
Features:
- Narrow profile power supply operating in pulse mode.
- 1U profile, light weight, high efficiency.
- Protection: against overload, overheating, voltage increase, short circuit.
- Air cooling with built-in DC fan. The fan is controlled by a switch (On/Off).
- Power consumption without load: <0.75W.
- Working altitude up to 5000 meters.
Technical data:
- Power supply type: pulsed.
- Input voltage: AC 90-264V. Frequency: 47-63Hz.
- Output voltage: DC 12V.
- Possibility to adjust the output voltage within ±10%.
- Maximum output current: 29A.
- Maximum power: 348W.
- Irregularities and noise: 150mV pp.
- AC voltage: 6.8A/115V, 3.4A/230V.
- Efficiency: 85%.
- Drain current in the input circuit at AC 240V: up to 2mA.
- MBTF: min 295000 hours
- Operating temperature: from -25°C to +70°C.
- Operating humidity: 20%-90%RH.
- Dimensions: 215x115x30mm.
- Weight: 0.76kg.
