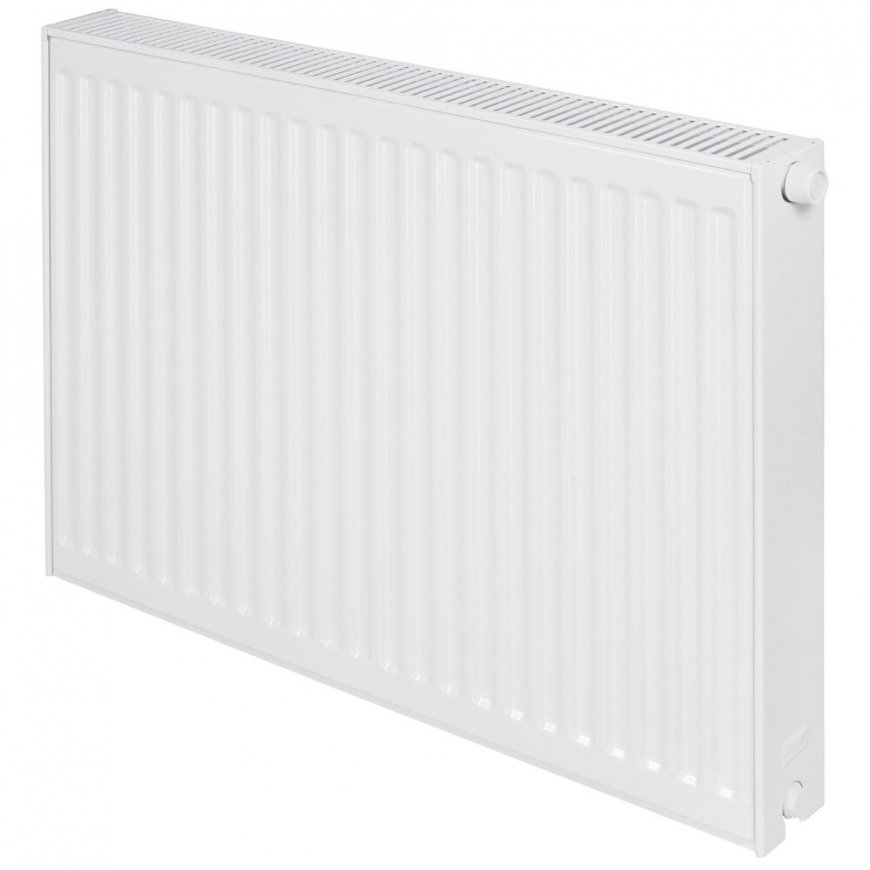

Bottom connection radiator Purmo CV 11, 300-600

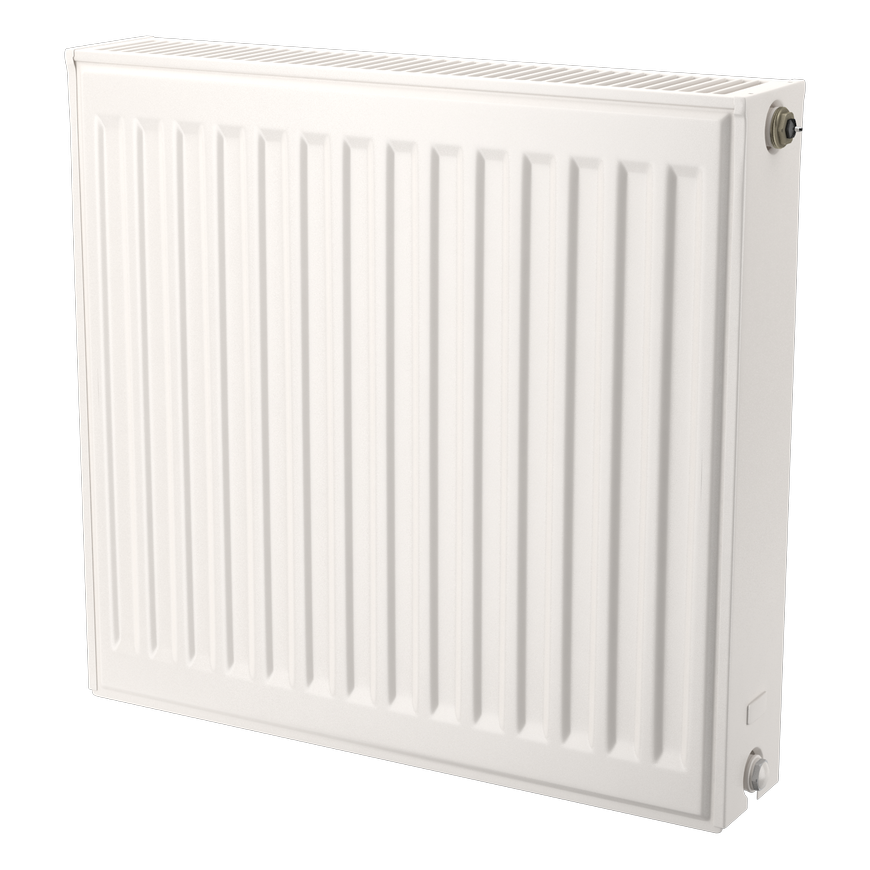

Bottom connection radiator Purmo CV 11, 300-600 – 2
Bottom connection radiator Purmo CV 11, 300-600 – 3
Bottom connection radiator Purmo CV 11, 300-600 – 4
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600
Bottom connection radiator Purmo CV 11, 300-600

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Bottom connection radiator Purmo CV 11, 300-600

88.99 €
Monthly payment from 3,19 €
2905855

5907814705471

Shipping 10-14 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Bottom connection radiator with thermostatic element
Top quality product
One profiled panel, one convector
Height from 300 mm to 900 mm
Length from 400 mm to 3000 mm
Power from 218W to 4281W (75º/ 65º / 20º )
Connection at the bottom, standard from the right
A thermostatic element is installed
The set includes wall brackets, a blind and a drainer

lower-connection-radiator-purmo-cv

Purmo Ventil Compact

A compact radiator is a classic panel radiator that meets the highest quality and efficiency requirements. If all the pipes are visible in traditional radiators, the top and side covers in compact radiators give them a pleasant and attractive appearance. And the choice of models is as extensive as all our panel radiators.

Compact radiators can be of several different types, which you can perfectly adapt to your room. The Ventil model is a variant of the classic compact radiator. In this radiator, all pipes and valves are hidden inside the radiator, giving it a subtle and uncluttered look.

Technical data

Universal PURMO Ventil Compact radiators with profiled panels and convection elements, with side hoods and top grill. Two connections at the bottom and four at the side, internally threaded G ½", allow connection from the bottom and, if necessary, from the side. Radiator with Oventrop pre-regulating thermostatic valve.

  • Material: high-quality stamped stainless steel sheet FePO 1 according to EN 10130
  • Pitch of vertical water channels: 33.3 mm
  • Connections: 2 x G ½ " on the right of the lower connection (on the left - on request), 4 x G ½ " of the side connection
  • Working pressure: 10 bar
  • Maximum temperature: 110 °C
  • Test pressure: 13 bar
  • Color: white RAL 9016, other colors of the RAL palette - on request
  • Accessories: fasteners, blind, air valve (included in the set)
