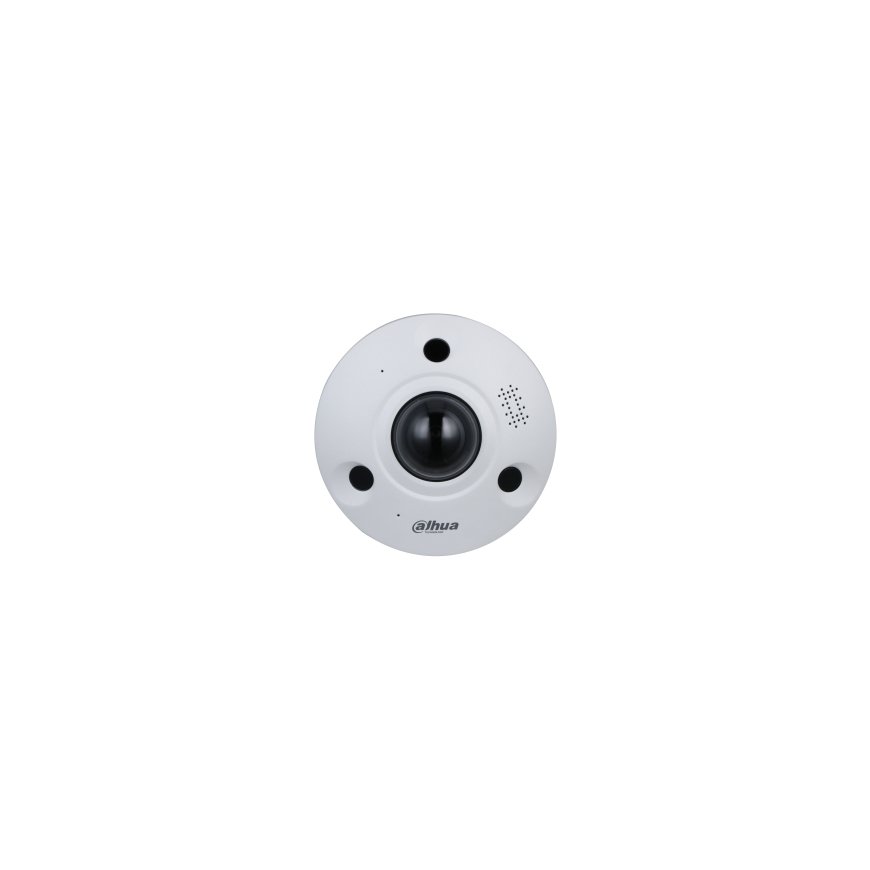

Dahua Technology WizMind DH-IPC-EBW8842-AS-IVC security camera Dome IP security camera Outdoor 3280 x 2480 pixels Ceiling
886,00 €
779.00 €
Monthly payment from 20,96 €
2884818 DH-IPC-EBW8842-AS-IVC
6923172507655
Shipping 1-2 days
You are interested in this product?
All about the product
8MP IR Fisheye WizMind Network Camera with Panomorph Lens> 8MP 1/1.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8M (3280 × 2480) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 10 m.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker
> 12V DC/PoE power supply.
> IP67 and IK10 protection.
> Adopts Panomorph lens, having better compatibility with third party platform.
> Panomorph Lens RPL: B9VVT.
Features
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | White |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Audio formats supported | G.711; PCM; G.726; G.722; G.723 |
| Weight | 790 g |
| Width | 59.8 mm |
| Type | IP security camera |
| Maximum resolution | 3280 x 2480 pixels |
| Package weight | 1.21 kg |
| Connectivity technology | Wired |
| Supported graphics resolutions | 352 x 240; 352 x 288; 704 x 480; 704 x 576; 1280 x 960; 1536 x 2048; 2880 x 2160; 3280 x 2048 |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | Yes |
| Housing material | Metal |
| Power consumption (typical) | 6.5 W |
| Noise reduction | Yes |
| Mounting type | Ceiling |
| Power source type | DC; PoE |
| Power consumption (max) | 13 W |
| Placement supported | Outdoor |
| Web browser | Yes |
| Security algorithms | HTTPS |
| Video formats supported | H.264; M-JPEG; H.265 |
| Built-in microphone | Yes |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Maximum operating distance | 27.9 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| IK code | IK10 |
| Camera shutter speed | 1/3 –1/100,000 |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Video compression formats | H.264; H.265; M-JPEG; H.264H |
| Video intelligence analytic | Yes |
| Audio input channels | 1.0 channels |
| Audio detection | Yes |
| Built-in HDD | No |
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion; Tripwire; People counting |
| DC output voltage | 12 |
| Diameter | 15 cm |
| Number of cameras | 1 |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Mirror | Yes |
| Number of illumination LEDs | 3 |
| Web-based management | Yes |
| Internal memory | 4000 MB |
| Voice codecs | G.723; G.726; G.711Mu; G.711a; PCM |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Field of view (FOV) angle | 185° |
| Number of users | 20 user(s) |
| Minimum illumination | 0 lx |
| White balance | Auto; Manual; Outdoor; Custom modes; Natural; Street lamp |
| Gain control type | Auto |
| Motion sensor | Yes |
| Frame rate | 30 fps |
| Video recording | Yes |
| Total megapixels | 8 MP |
| Camera shutter type | Electronic |
| Live view | Yes |
| Night vision | Yes |
| LED type | IR |
| Maximum aperture number | 2.2 |
| Closest focusing distance | 0.2 m |
| Dynamic range | 56 dB |
| Camera pan control | No |
| Camera tilt control | No |
| Number of lenses | 1 |
| Video streaming | Yes |
| Alarm input/output | No |
| Progressive scan | Yes |
| Power consumption (Power over Ethernet (PoE)) | 13.9 W |
| Detect distance | 27.9 m |
| Observe distance | 11.2 m |
| Recognize distance | 5.6 m |
| Identify distance | 2.8 m |
| Night vision distance | 10 m |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 3 - 16384 |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Streaming method | Multicast |
| ROM capacity | 2000 MB |
| Management software | Smart PSS; DSS; DMSS |
| Noise reduction technology | 3D noise reduction |
| Fixed focal length | 1.29 mm |
| Adjustment shutter speed | Auto/Manual |
| Smart IR | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Built-in siren | Yes |
| People counting function | Yes |
| Digest authentication | Yes |
| Lens viewing angle, horizontal | 185° |
| Lens viewing angle, vertical | 180° |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Number of simultaneous live view channels | 3 channels |
| Web servers supported | IE: IE11, IE10 Chrome: 48.0.2564.116 Firefox: 48.0.2 Edge: 42.17134.1.0 |
| Compliance certificates | CE; Federal Communications Commission (FCC) |
