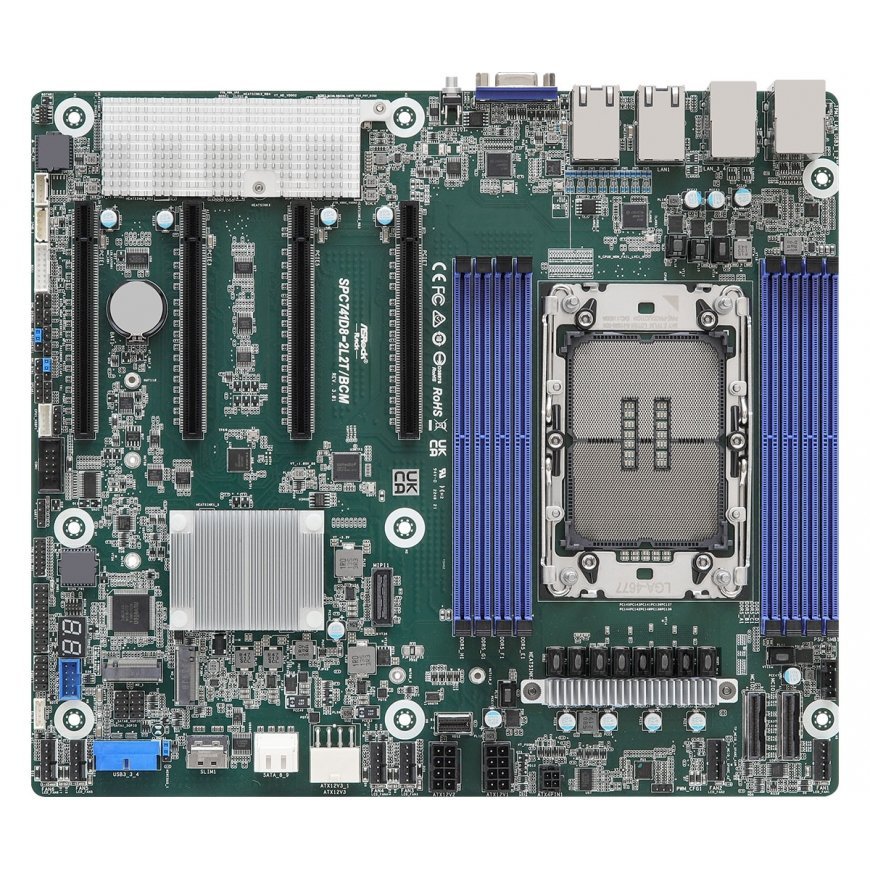

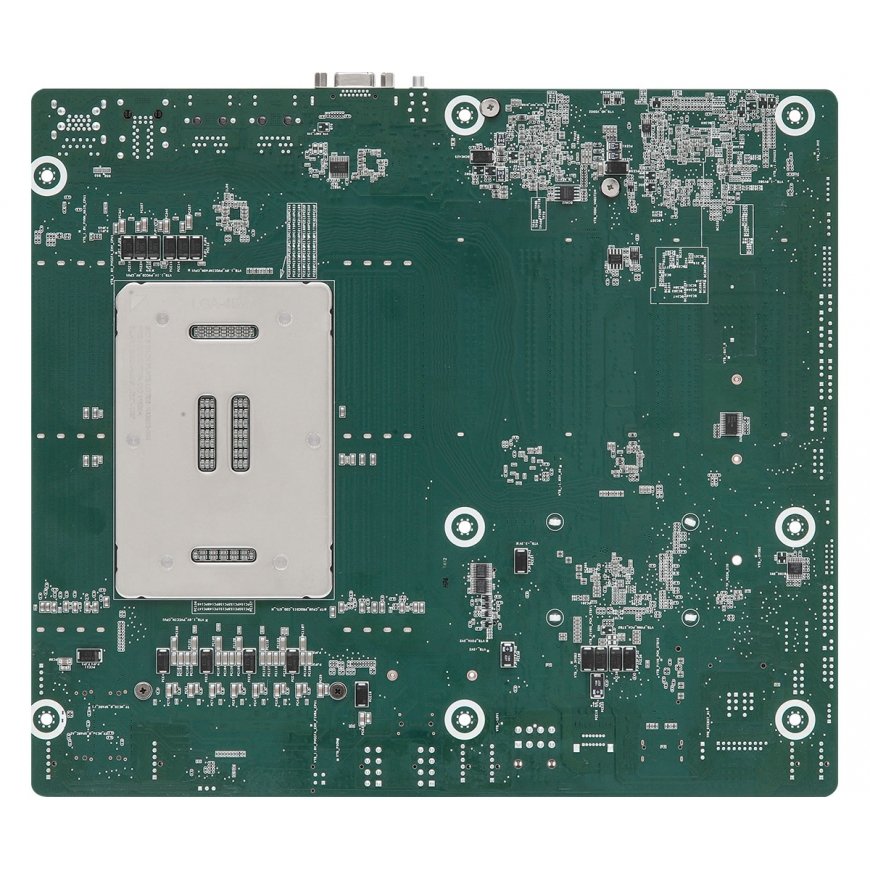

Asrock SPC741D8-2L2T/BCM motherboard Intel C741 LGA 4677 (Socket E)
979.00 €
Monthly payment from 26,11 €
2879078 SPC741D8-2L2T/BCM
4711430520193
Shipping 13-14 b.d.
You are interested in this product?
All about the product
Asrock SPC741D8-2L2T/BCM. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory voltage: 1.1 V. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, On-board graphics card model: Aspeed AST2600. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Broadcom BCM57416, Intel I210Processor | |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 4677 (Socket E) |
| Supported processor sockets | LGA 4677 (Socket E) |
| Processor manufacturer | Intel |
Memory | |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 4800, 5600 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
| Supported memory clock speed (max) | 5600 MHz |
| Memory slot pin count | 288 |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 12 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| Number of storage drives supported | 12 |
| RAID support | Yes |
Graphics | |
| Parallel processing technology support | Not supported |
| Graphics card family | ASPEED |
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Internal I/O | |
| USB 2.0 connectors | 1 |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 6 |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Audio connector | Yes |
| Front panel connector | Yes |
| Number of EPS power connectors (8-pin) | 3 |
| Number of temperature sensor headers | 1 |

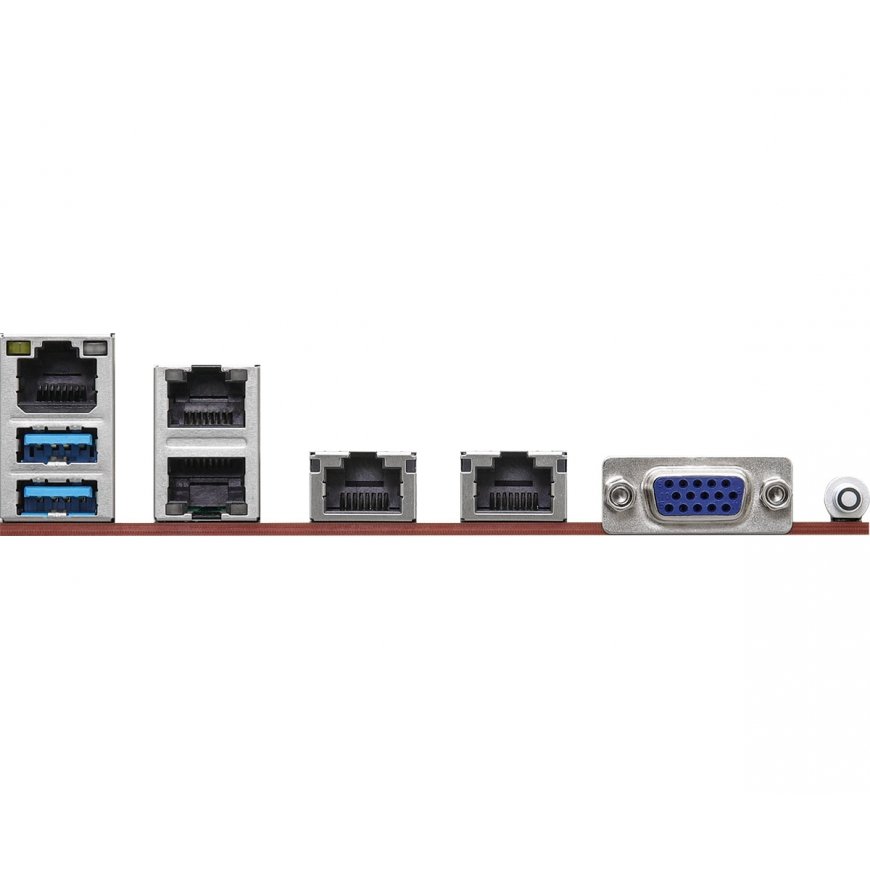

Rear panel I/O ports | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| IPMI LAN (RJ-45) port | Yes |
Network | |
| LAN controller | Intel I210, Broadcom BCM57416 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard chipset | Intel C741 |
| Motherboard chipset family | Intel |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | Server |
| Product colour | Grey, Green |
BIOS | |
| BIOS type | AMI |
| ACPI version | 4.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 3.4 |
Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 266.7 mm |
