Intellinet 19" Rack Mount Din Rail Kit Depth Adjustable, 2U, box

39.00 €
Monthly payment from 1,90 €
2866332

716345

0766623716345

Shipping 14-19 b.d.

You are interested in this product?
(Read terms of service)

All about the product

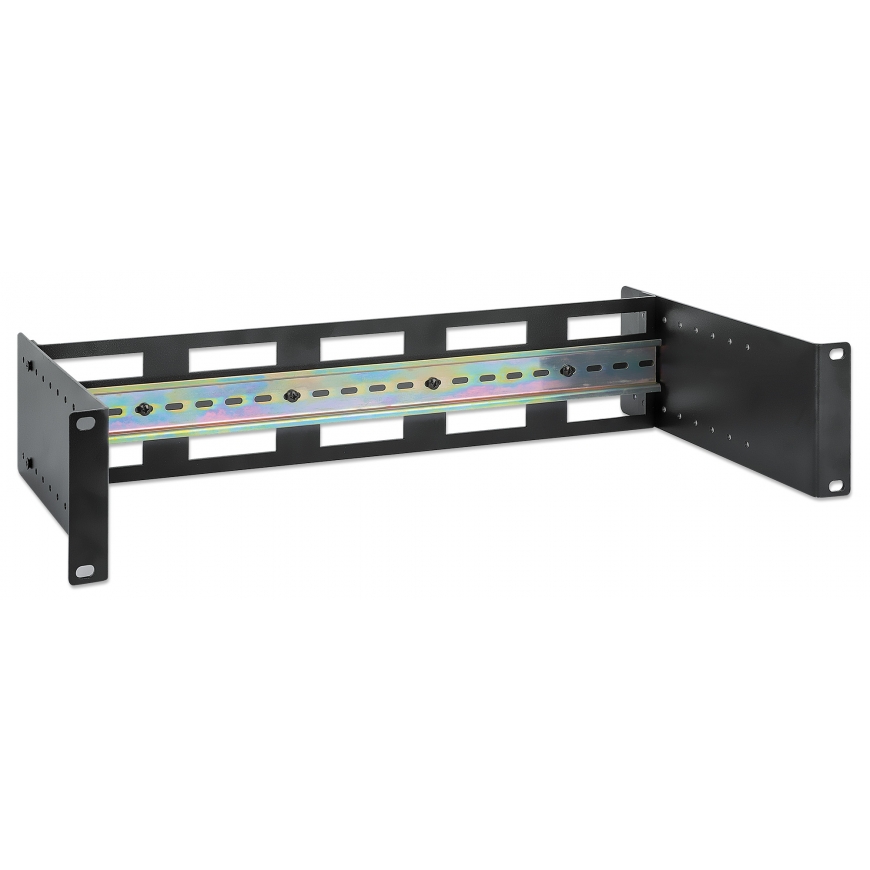

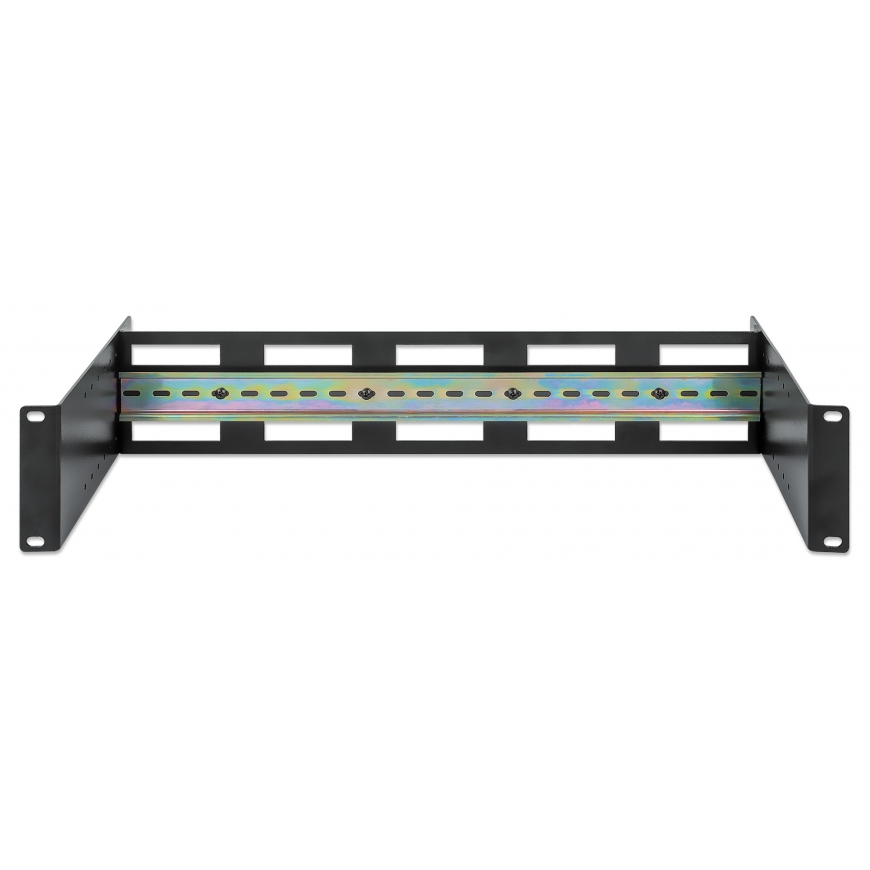

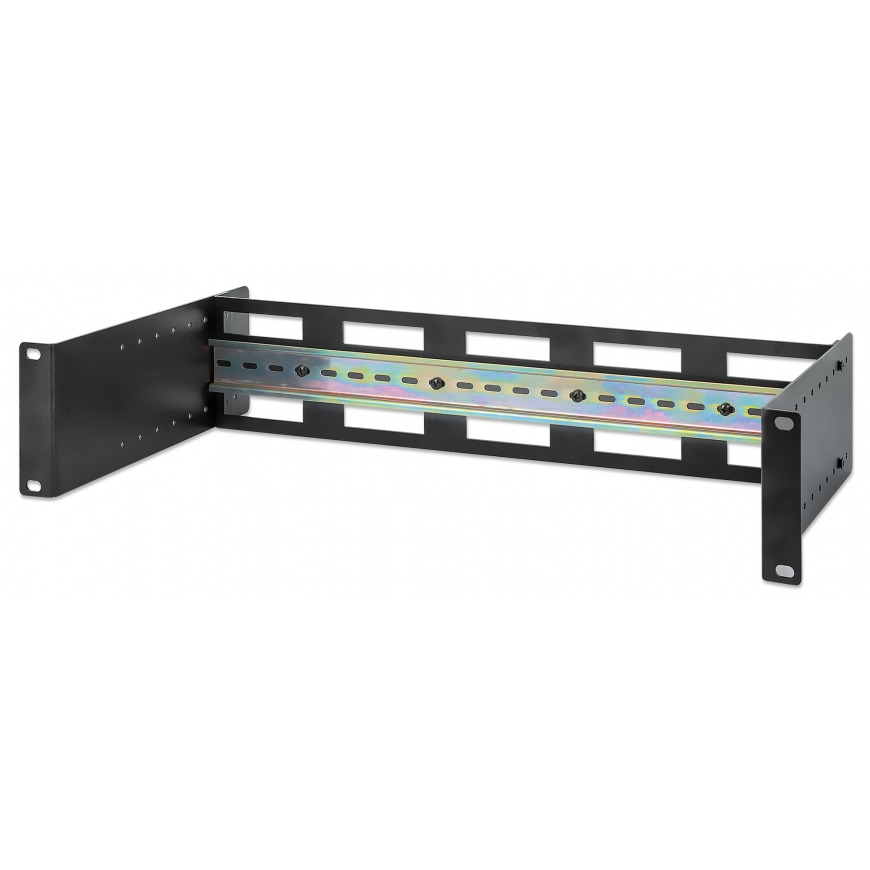

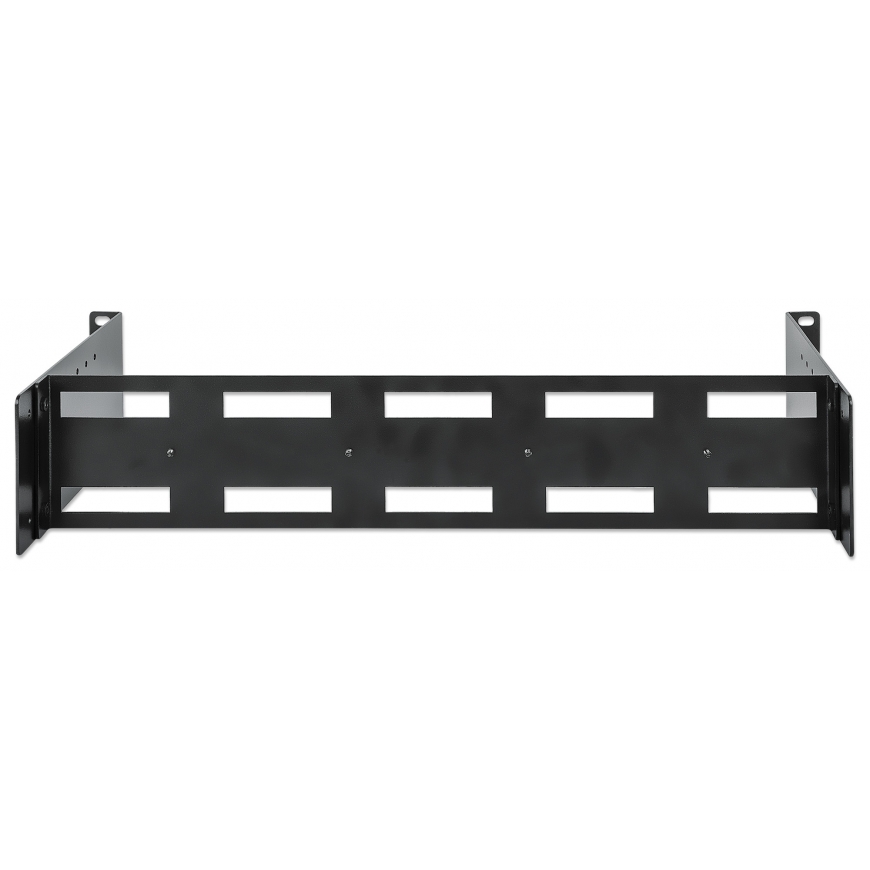

Depth-Adjustable DIN Rail Rack-Mount Kit to Easily Mount Your Top Hat Equipment in a 19-inch Cabinet
The Adjustable 19" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.

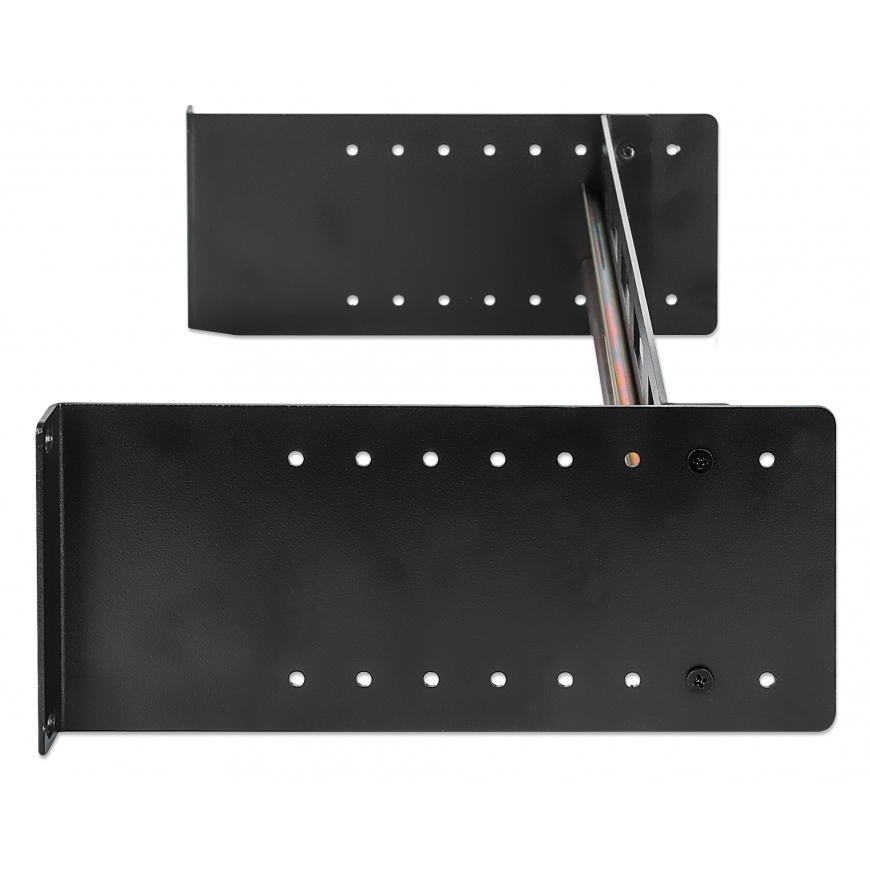

Tailor Your Space with Depth Adjustment
With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs.

Compliant and Compatible
Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.

Durable Construction Built to Last
Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).

Everything You Need Included
We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19" mounting straight out of the box.
Features
Product colour Black
Certification ANSI/EIA 310-E, IEC 60297-3, IEC/EN 60715
Maximum weight capacity 9 kg
Design
Rack capacity 2U
Weight & dimensions
Weight 1.3 kg
Package weight 1.55 kg
Depth 210 mm
Height 89 mm
Width 487 mm
Other features
Type Rack rail
Logistics data
Quantity per pack 1 pc(s)
Sustainability
Sustainability compliance Yes
Technical details
Compliance certificates RoHS
