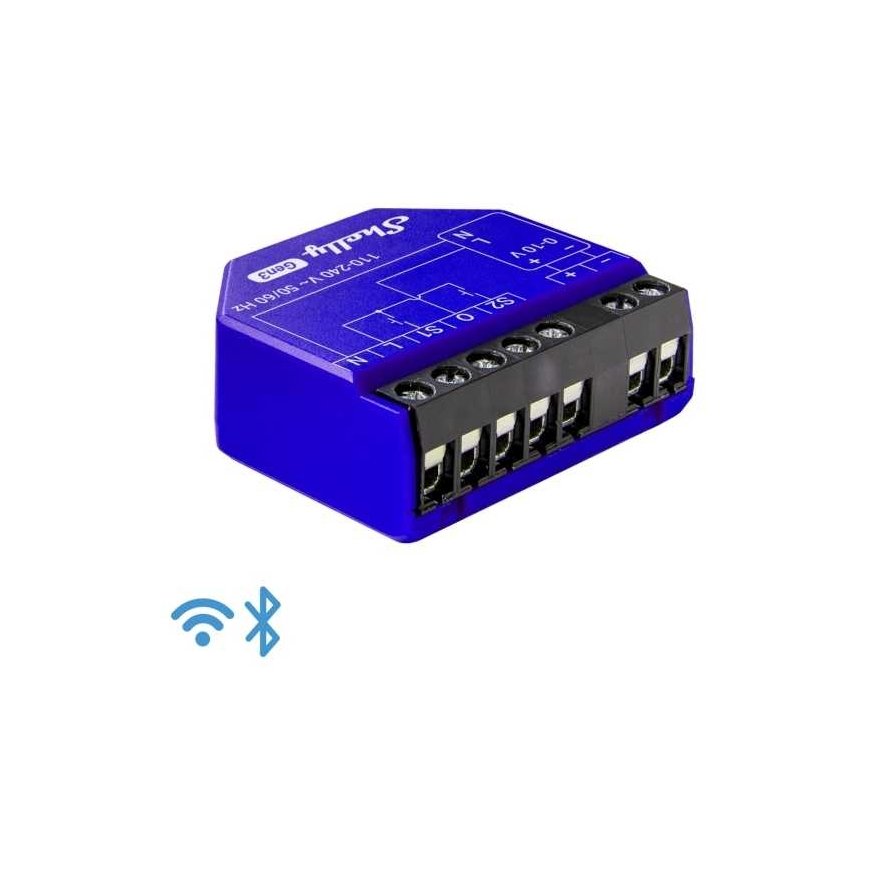

Shelly Dimmer 0-10V Gen3
2831808 SHELLY-DIMMER-0-10V-GEN3
3800235261750, 3800235265703
Shipping 4-6 b.d.
All about the product
Shelly Dimmer 0/1-10V PM Gen3 lighting controller
The Shelly Dimmer 0/1-10V PM Gen3 is a versatile lighting controller that provides full control over the brightness and energy consumption in your home or office. With support for the 0/1-10V standard and integrated power monitoring features, the device offers precision and flexibility in managing different types of lighting. Optimized to work with popular automation platforms, the Shelly Dimmer Gen3 brings a new quality to everyday life - without the need for additional hubs.
Seamless control over lighting
The Shelly Dimmer 0/1-10V PM Gen3 offers full control over light brightness, adjusting it to your current needs and preferences. With support for one-way and two-way dimming modes, the device works perfectly with both physical switches and automation systems. In addition, a built-in night mode allows the brightness to be automatically reduced during the evening hours, enhancing user comfort.
Energy consumption monitoring
One of the key features of the Shelly Dimmer Gen3 is the ability to precisely monitor energy consumption. The controller displays data on voltage (V), amperage (A) and power (W), giving you a full view of the performance of connected devices. This feature allows you to better optimize power consumption and reduce operating costs.
Smart automation and integration
The Shelly Dimmer Gen3 controller is not only about managing lighting, but also integrating with advanced automation systems. With support for protocols such as KNXnet/IP and MQTT, the device is ideal for more demanding installations. Combine it with the Shelly Plus Add-On module to enrich functionality with additional sensors, such as humidity, temperature or light intensity measurements. Customizable thresholds and offsets make the device adaptable to individual user needs.
Reliability
Equipped with a new ESP Shelly processor and increased Flash memory, the controller features reliability, fast response and performance that meets the expectations of even the most demanding users. The Wi-Fi booster and BLE gateway features provide even better range and connection stability, while compatibility with popular platforms such as Alexa, Google Assistant and Home Assistant guarantees intuitive operation and versatile applications.
| Manufacturer | Shelly |
|---|---|
| Model | 0/1-10VPMgen3 |
| Dimensions | 38.5 x 43.5 x 17 mm |
| Weight | 28.5 grams |
| Maximum tightening torque of screw terminals | 0.4 Nm |
| Cross section of wires | From 0.2 to 2.5 mm² (solid conductors, stranded conductors and sleeve terminals) |
| Length of stripped wire | 5 to 6 mm |
| Mounting | In a wall console / behind a wall / in a ceiling structure |
| Housing material | Plastic |
| Case color | Pantone 2736C (blue) |
| Color of connectors | Black |
| Operating temperature range | From -20 °C to 40 °C |
| Humidity | 30% - 70% relative humidity |
| Maximum installation altitude | 2000 |
| Power supply | 110-240V~ 50/60Hz |
| Power consumption | < 1.5W |
| No need for a neutral wire | No |
| Voltage control type 0-10V/1-10V | Current source |
| Short circuit strength | 6kA |
| Energy limitation class | 3 |
| Maximum switching voltage | 240 V~ |
| Maximum switching current | 13 A |
| Maximum control current | 35 mA |
| Voltmeter (AC) | 110V - 240V |
| Voltmeter accuracy | ±10% |
| Ammeter (AC) | 50mA - 16A |
| Accuracy of the ammeter | ±10% |
| Power and energy measurement | Active and apparent power, active and apparent energy, power factor (Power Factor) |
| Measurement data storage | No |
| Built-in temperature sensor | Yes |
| Radio communication | Wi-Fi range |
| Up to 30 m indoors, up to 50 m outdoors (depending on local conditions) | Bluetooth protocol |
| 4.2 | Bluetooth range |
| Up to 10 m indoors, up to 30 m outdoors (depending on local conditions) | Processor |
| Shelly ESP32 C3 | Clock frequency |
| 40MHz | Flash memory |
| 8MB | Schedules |
| 20 | Webhooks (URL shares) |
| 20 (5 URLs per webhook) | Script support |
| Yes | MQTT |
| Yes | Advanced scheduling |
| Yes | KVS (Key-Value Store) |
| Yes |
Features
| Product colour | Grey; Blue |
| Weight | 17 g |
| Width | 42 mm |
| Depth | 37 mm |
| Height | 17 mm |
| Type | Dimmer |
| Package type | Box |
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Networking standards | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| AC input voltage | 110 - 240 V |
| Control type | Wireless |
| Remotely operated | Yes |
| Operating frequency | 2400 - 2483.5 MHz |
| Power consumption (standby) | 1.2 W |
| Dimmable | Yes |
| Transmit power | 1 mW |
| Suitable for indoor use | Yes |
| Maximum outdoor range | 50 m |
| Maximum indoor range | 30 m |
| Mobile app support | Yes |
| Brightness adjustment | Yes |
| Case design | Built-in |
