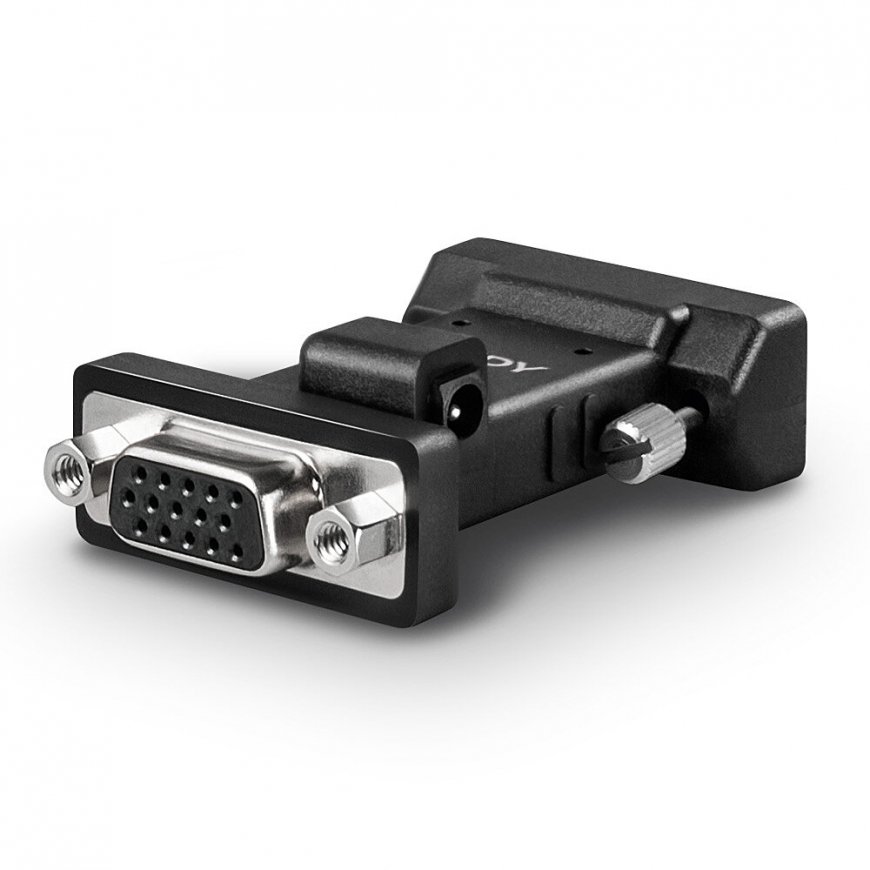

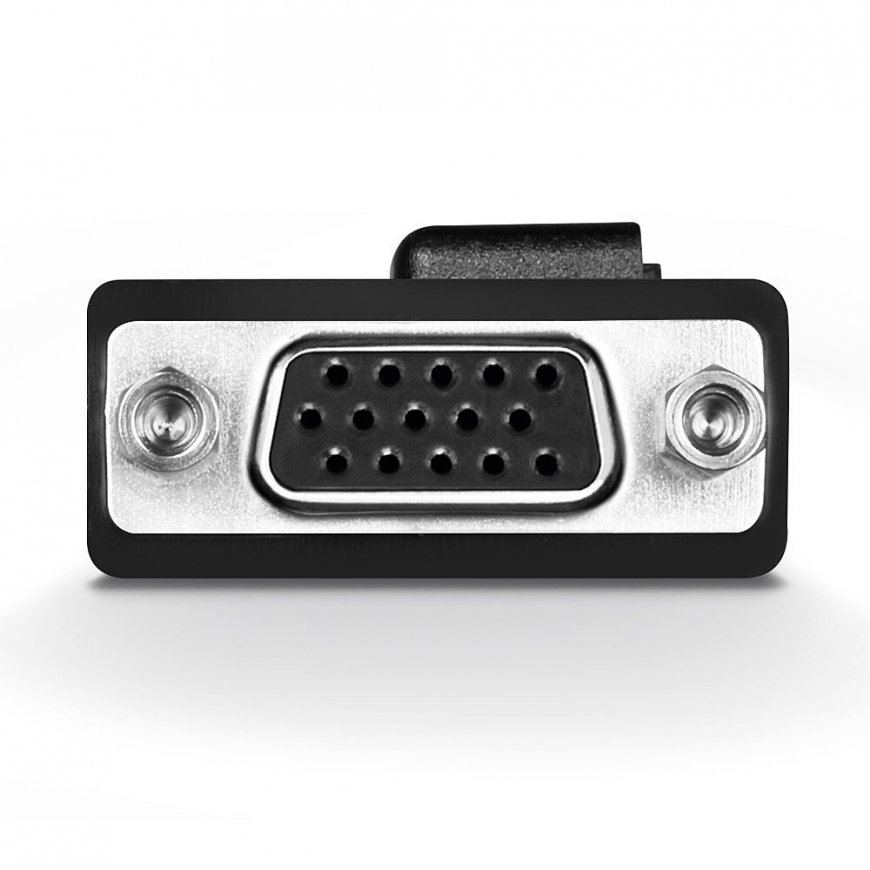

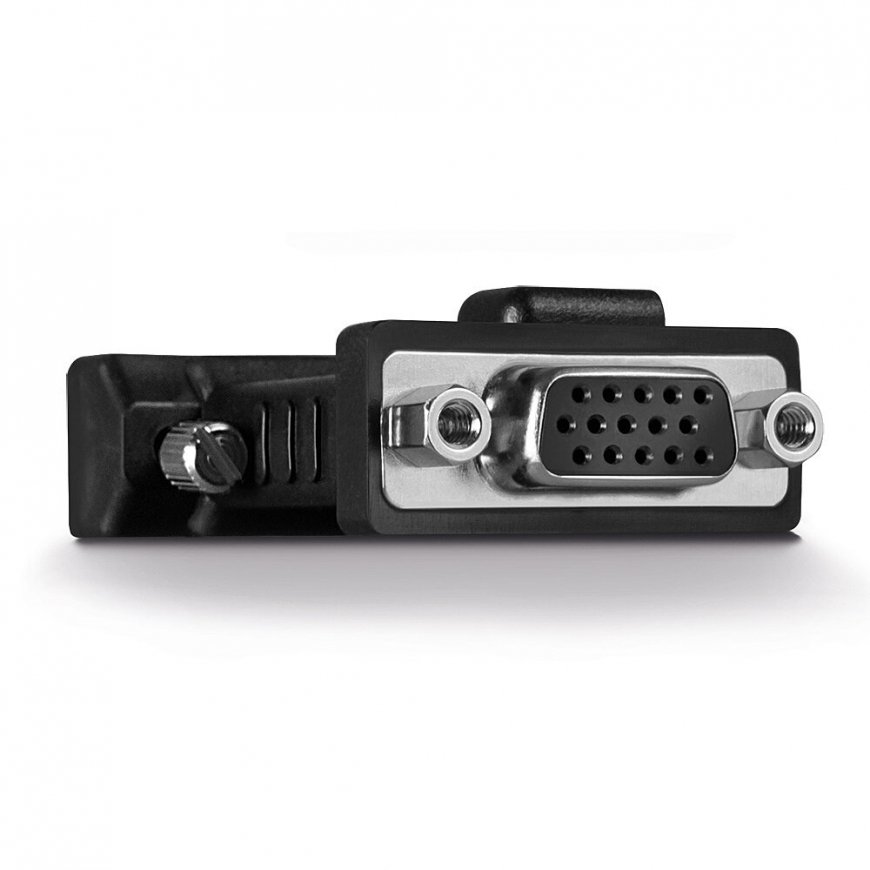

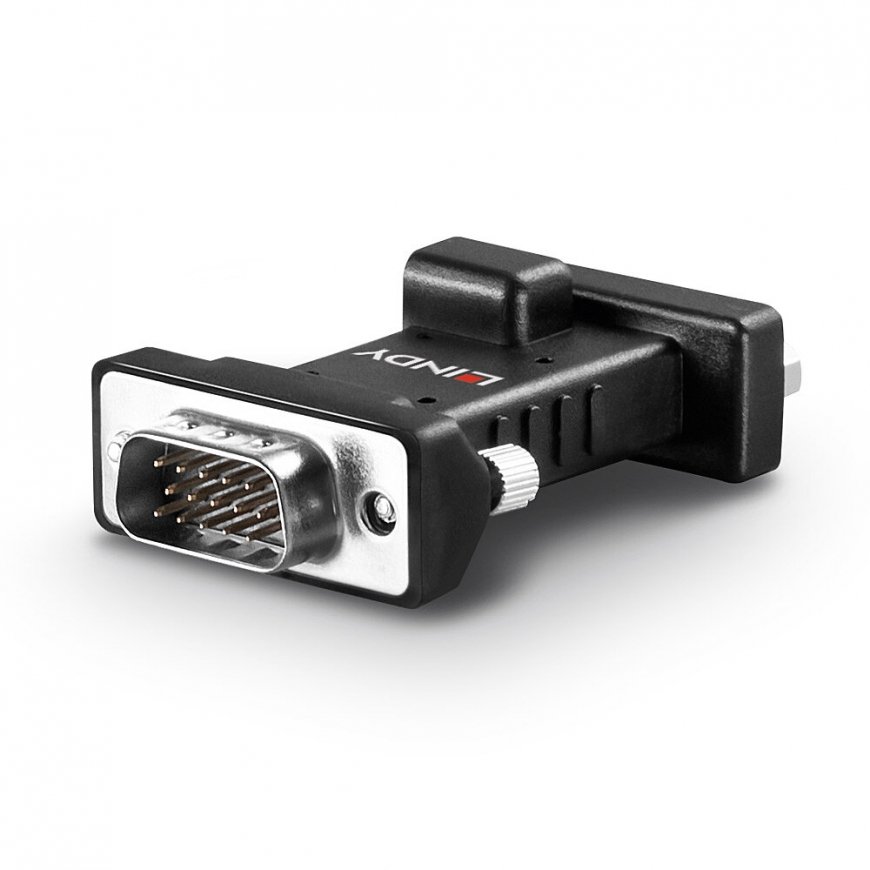

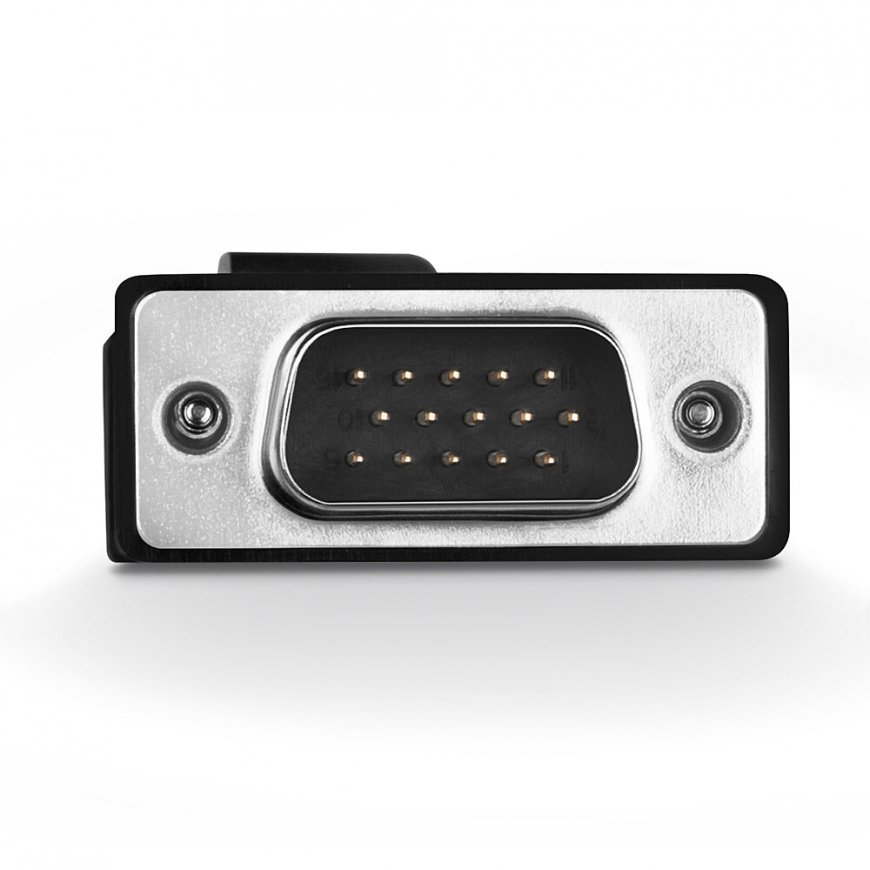

Lindy VGA EDID Emulator
39.00 €
Monthly payment from 1,90 €
2744650 32121
4002888321211
Shipping 24-26 b.d.
You are interested in this product?
All about the product
Continuously emulates VGA EDID informationSupports resolutions up to 1920x1200@60Hz
For use with 32120 for cloning
Powered via VGA Source Interface, 3.5/1.35mm Optional DC jack for non-powered source devices
2 Year warranty
The Lindy VGA EDID Emulator is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 1920x1200@60Hz, the emulator is suitable for use with legacy PCs and displays. When used with the Lindy EDID recorder (32120) this device can provide cloned EDID information to the graphics card.
It is also possible to use the Emulator without cloning a display as it comes complete with pre-set EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Performance | |
| Product colour | Black |
| Maximum video resolution | 3840 x 2160 pixels |
| Housing material | Metal |
Power | |
| Power supply type | DC |
| DC voltage | 5 V |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | -20 - 70% |
| Storage temperature (T-T) | 0 - 90 °C |
Ports & interfaces | |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
Weight & dimensions | |
| Weight | 234 g |
| Width | 48 mm |
| Depth | 22 mm |
| Height | 73 mm |
Packaging data | |
| Package width | 185 mm |
| Package depth | 55 mm |
| Package height | 140 mm |
| Package weight | 313 g |
