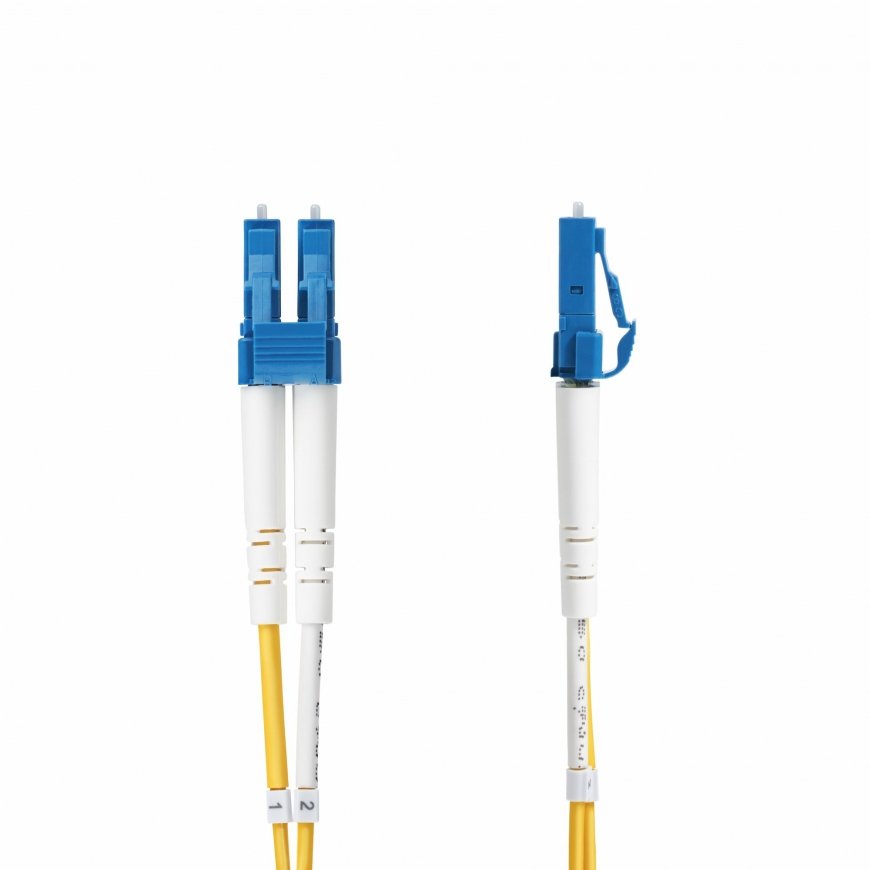

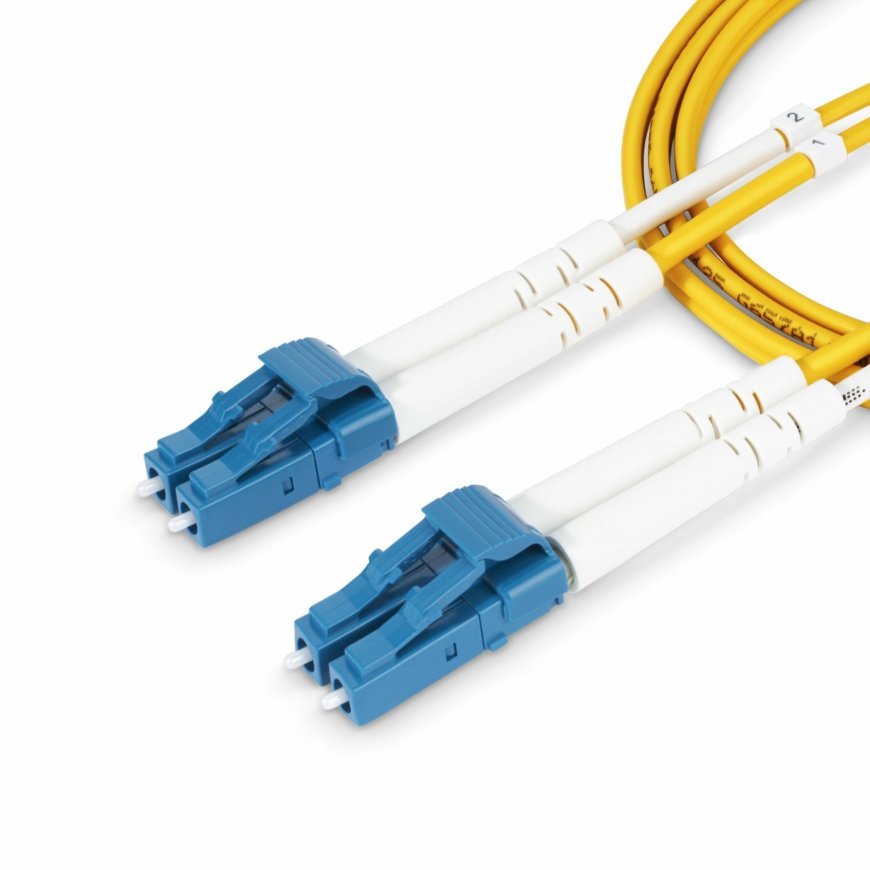

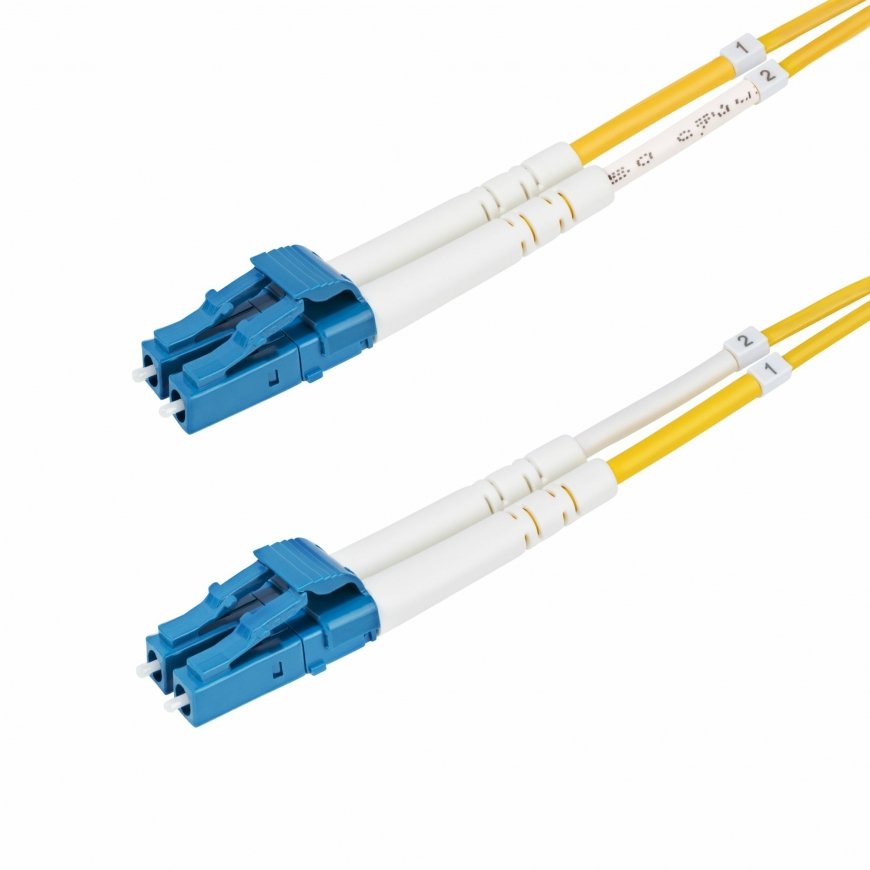

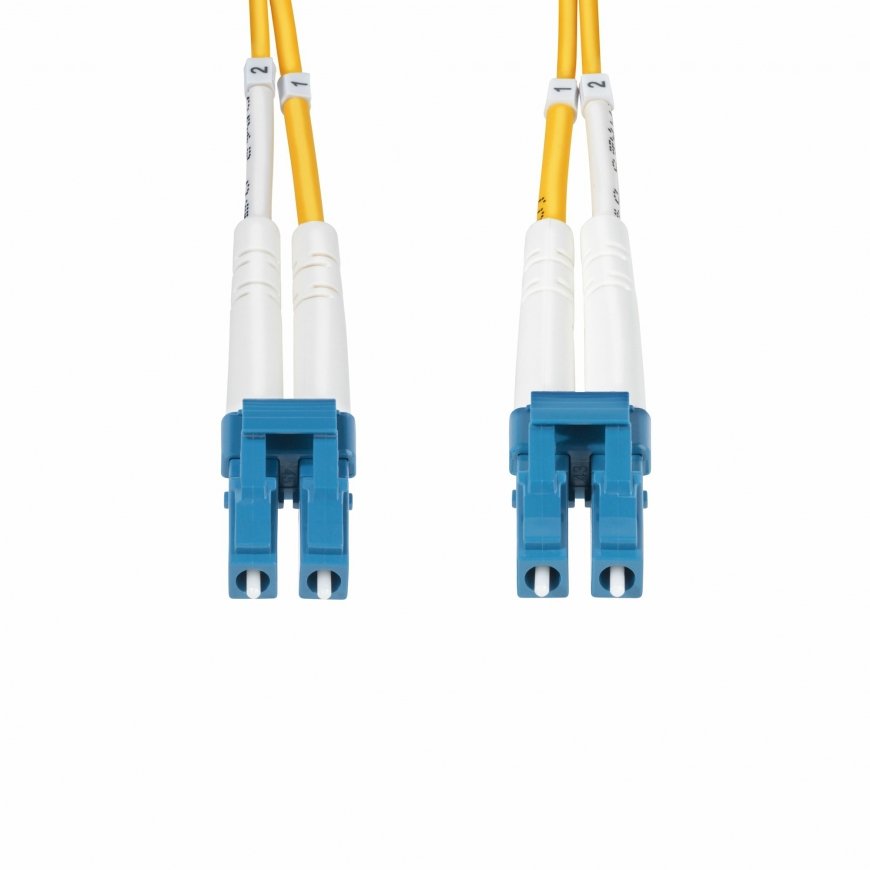

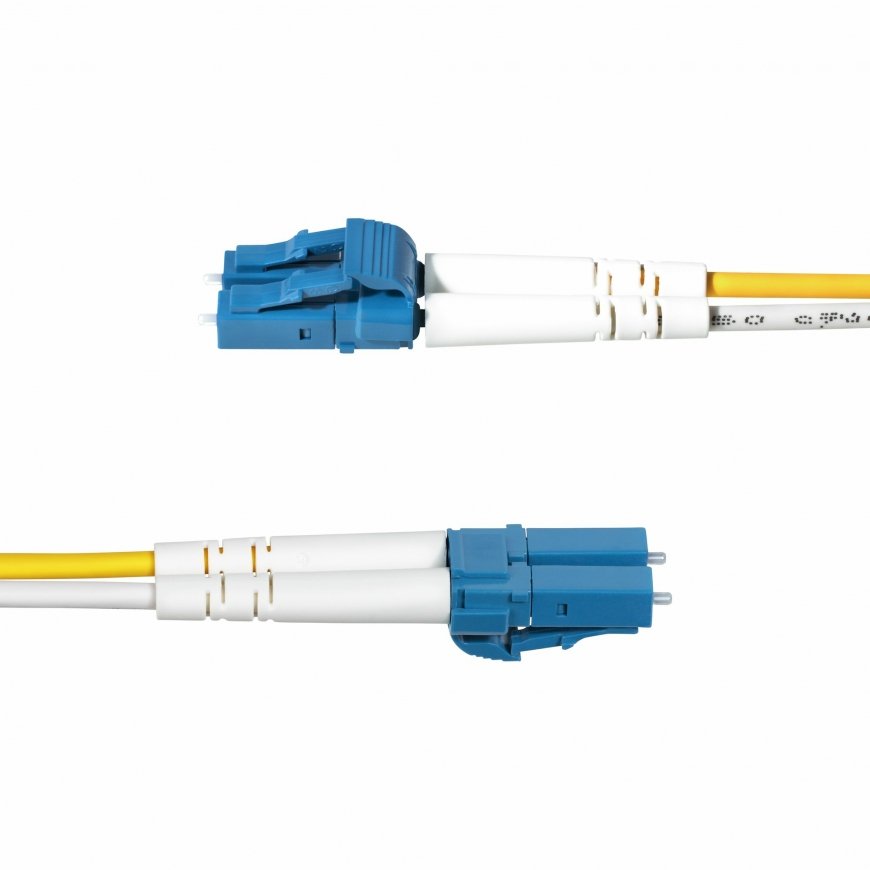

StarTech.com SMDOS2LCLC2M InfiniBand/fibre optic cable
39.00 €
Monthly payment from 1,90 €
2728878 SMDOS2LCLC2M
0065030902083
Shipping 15-16 b.d.
You are interested in this product?
All about the product
Enhance the performance capabilities of CWDM applications over an OS2 fiber networkOS2 LC to LC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Compatibility
This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
Features | |
| Cable type | LC/UPC |
| Cable length | 2 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Jacket material | Low smoke zero halogen (LSZH), Polypropylene |
| Product colour | Yellow |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Data transfer rate | 10 Gbit/s |
| Fiber mode structure | Single-mode |
| Fibre optic type | OS2 |
| Return loss | 55 dB |
| Wavelengths supported | 1300, 1310, 1550, 1260, 1280, 1490, 1590, 1600, 1625, 1383 |
| Connector polish type | UPC |
Packaging data | |
| Package height | 3 mm |
| Package width | 200 mm |
| Package weight | 20.4 g |
| Package depth | 220 mm |
| Quantity per pack | 1 pc(s) |
Sustainability | |
| Sustainability compliance | Yes |
Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Logistics data | |
| Products per master (outer) case | 300 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 280 mm |
Weight & dimensions | |
| Cable diameter | 2 mm |
| Bending radius | 1 cm |
Certificates | |
| Compliance certificates | CE |
Other features | |
| Attenuation (max) | 0.35 dB/km |
