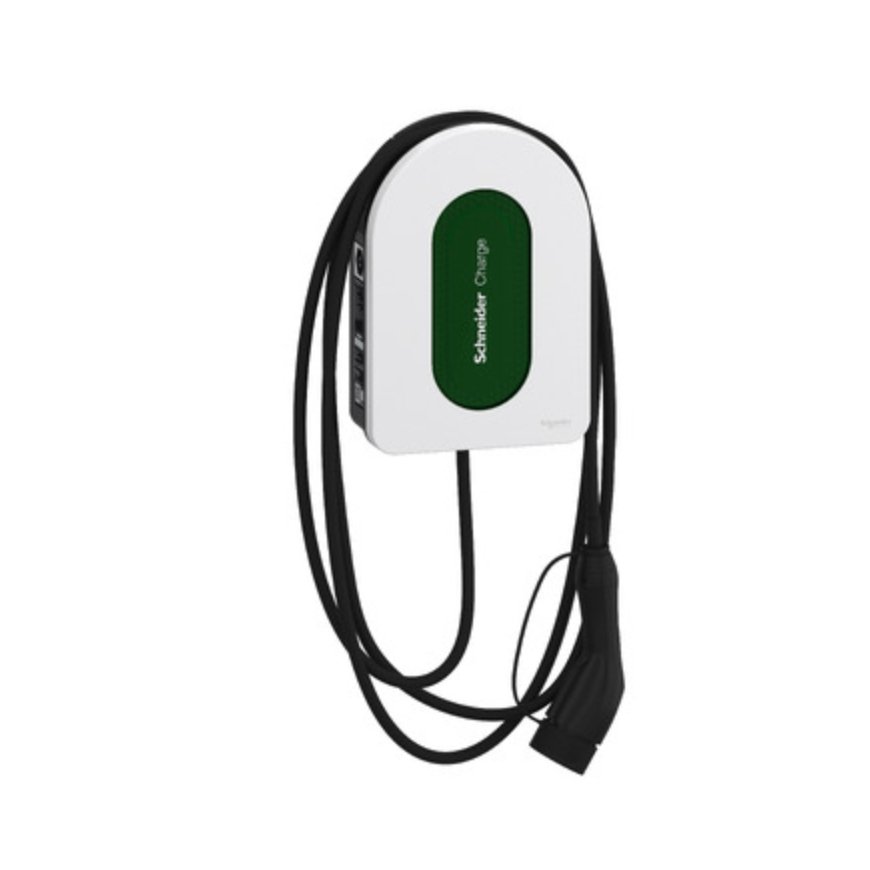

Schneider Electric EVH5A11N2C5 electric vehicle charging station Green, White Wall 1
829.00 €
Monthly payment from 22,25 €
2705388 EVH5A11N2C5
3606486961162
Shipping 3-7 b.d.
You are interested in this product?
All about the product
This Schneider Charge product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK1. The operating temperature is between -3°C and 55°C. The output type is a 5m attached cable with a T2 socket-outlet at the end, installed at the bottom and top centre of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N). The rated charging current is 16A under 4VAC at 5Hz/6Hz frequency. It can be used with a TN-S, TT or IT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage or on a wall externally. The dimensions are (W) 244mm x (H) 352mm x (D) 17mm. Its product weight is 4.4kg (without cable). Its color is white (RAL 93) and green. It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house and adapt the load according to Off Peak/Peak hours sent by TIC. The charging station is connected with Wiser by the Schneider ElectricTM mobile application for residential energy management. It easily starts, monitors, and controls the charging experience remotely. The OCPP 1.6 communication protocol can be used to connect to the supervision device/third party cloud. It can also be connected to Internet home router, either through Wi-Fi or RJ45 Ethernet cable.Features
| Wi-Fi | Yes |
| Product colour | White; Green |
| International Protection (IP) code | IP55 |
| Weight | 4.4 kg |
| Width | 244 mm |
| Depth | 117 mm |
| Height | 352 mm |
| Package width | 350 mm |
| Package depth | 500 mm |
| Package height | 300 mm |
| Package weight | 6.18 kg |
| Certification | IEC 61851-1; EN 61851 |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Ethernet LAN | Yes |
| LED indicators | Yes |
| Built-in display | No |
| Mounting type | Wall |
| Power source type | AC |
| Cable colour | Black |
| Operating altitude | 0 - 2000 m |
| Supported protocols | OCPP 1.6 |
| Number of phases | 1 |
| Socket type | Type 2 |
| Nominal frequency | 60 Hz |
| Maximum operating power (single-phase) | 11 kW |
| Maximum operating current per phase | 16 A |
| Integrated charging cable | Yes |
| Single-phase output voltage supported | 400 V |
| Mechanical impact protection code | IK10 |
| Maximum charging power | 11000 W |
