Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
88.99 €
Monthly payment from 3,19 €
2650961 MB230-4G
6957939001827, 6957939001834, 6957939002138
Goods will arrive at the Tallinn warehouse on 22.09.26
You are interested in this product?
All about the product
Faster and Smootherwith 4G+ Speed and
Dual Band WiFi
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

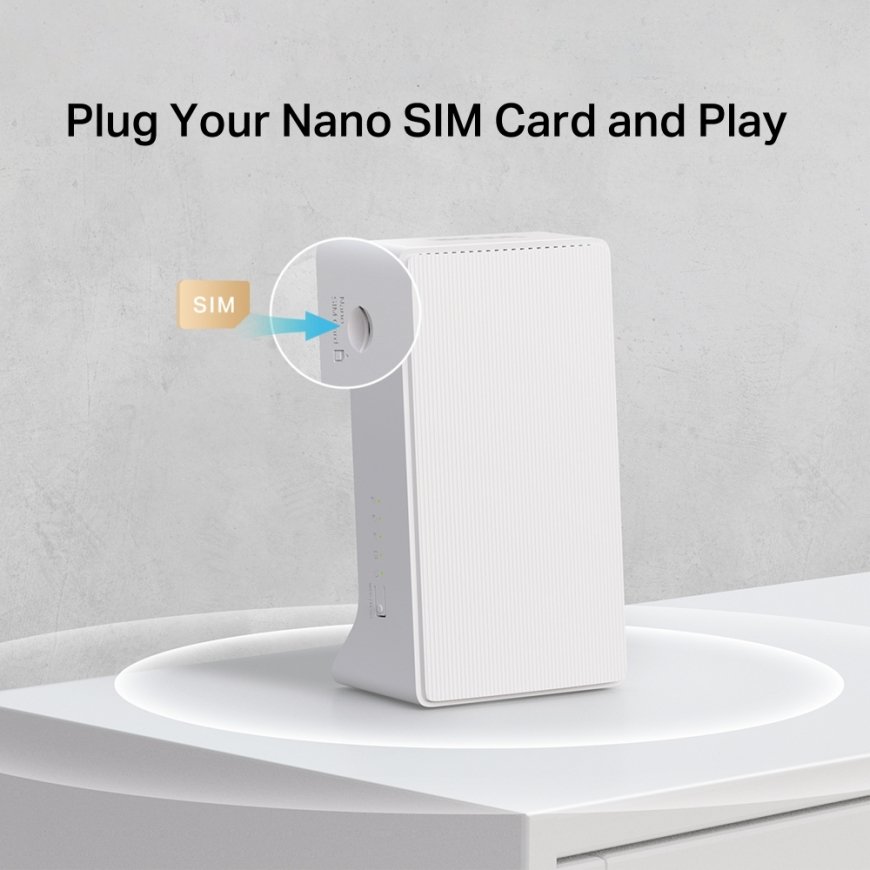

Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.

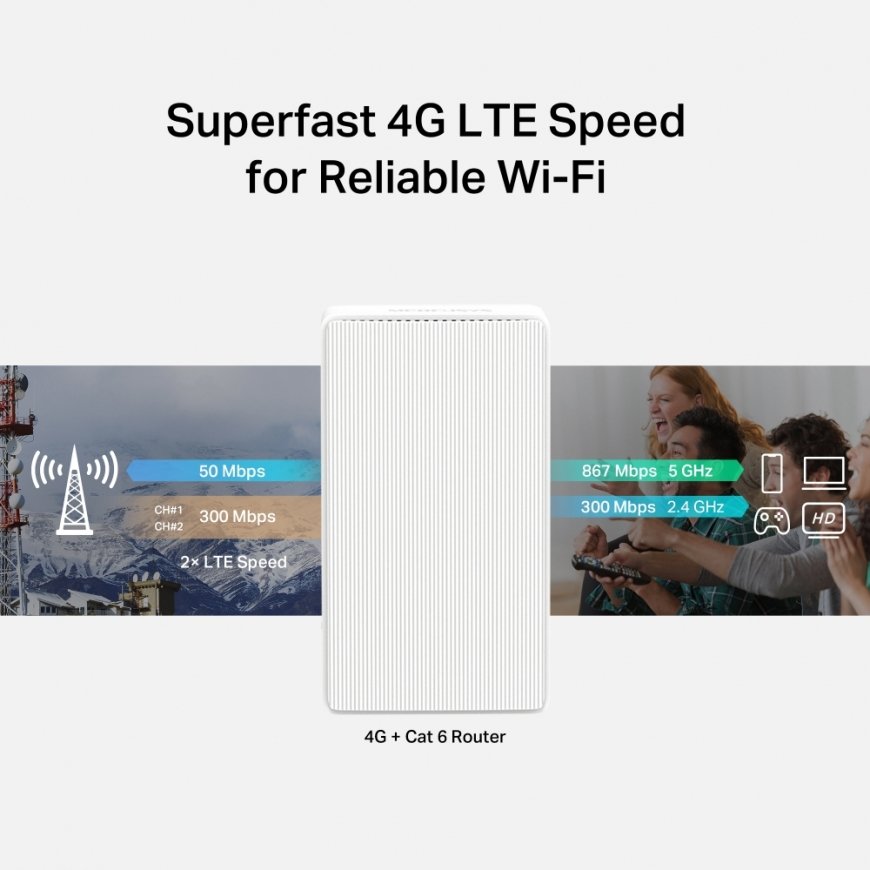

Extra Fast 4G+ Cat 6 Speed for Reliable Wi-Fi
MB230-4G supports the 4G+ Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.
Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.
Full with Strong and Stable Signal
Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.

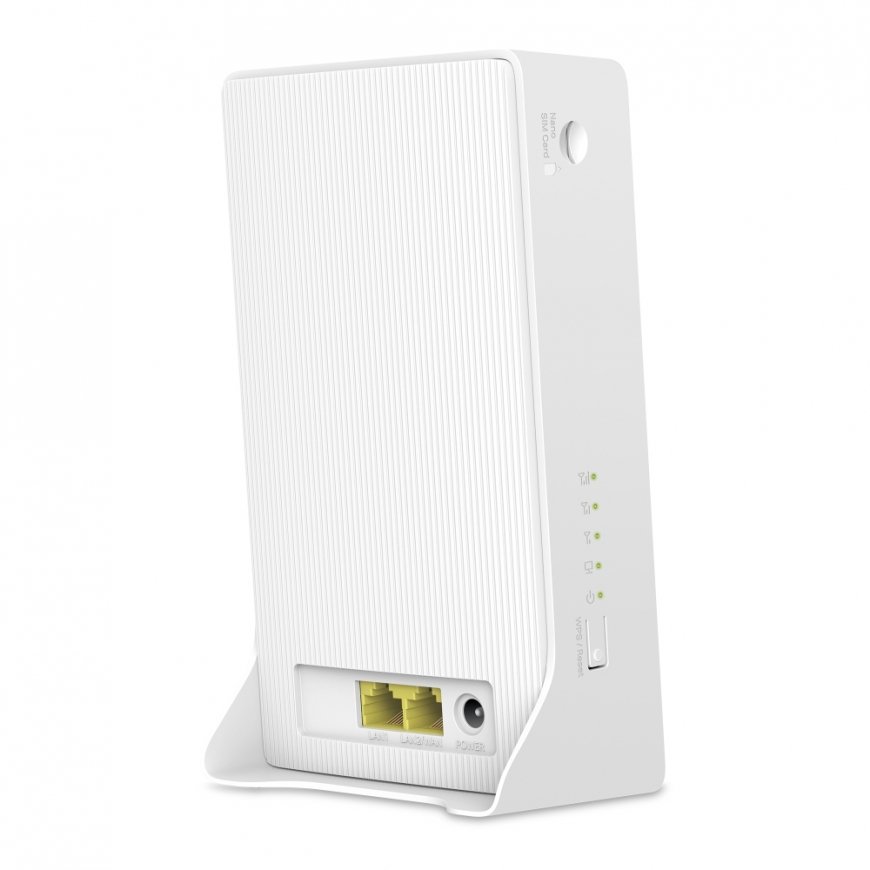

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
WAN connection | |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Port forwarding | Yes |
| Receiver sensitivity | 11g 6Mbps: -95dBm; 11g 54Mbps: -77dBm; 11n HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm; 11a 6Mbps: -92dBm; 11a 54Mbps: -75dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65dBm; 11ac VHT80 MCS9: -61dBm |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Dynamic DNS (DDNS) | Yes |
| Port triggering | Yes |
Mobile network | |
| 4G bands supported | 700, 850, 1800, 2100, 2600, 900, 2300, 800 |
| 3G standards | HSPA+, UMTS, HSPA |
| 4G standard | LTE-TDD & LTE-FDD |
| Dual SIM support | No |
| SIM card type | NanoSIM |
| Mobile network generation | 4G |
| 3G bands supported | 850, 900, 2100 |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| USB port | No |
Management features | |
| Reset button | Yes |
| WPS push button | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security | |
| DMZ support | Yes |
| Security algorithms | WPA-PSK, WPA2-PSK, 64-bit WEP, WPA3-SAE |
| Firewall | Yes |
| System event log | Yes |
| Port-based Network Access Control (PNAC) | Yes |
Protocols | |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| VoIP protocols | IPv4, IPv6 |
Design | |
| Product colour | White |
| Indication light | Yes |
| Product type | Desktop/pole router |
Antenna | |
| Antenna design | Internal |
Features | |
| Firmware upgradeable | Yes |
Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 95 mm |
| Depth | 61 mm |
| Height | 166 mm |
Packaging data | |
| Package type | Box |
| Number of products included | 1 pc(s) |
Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
