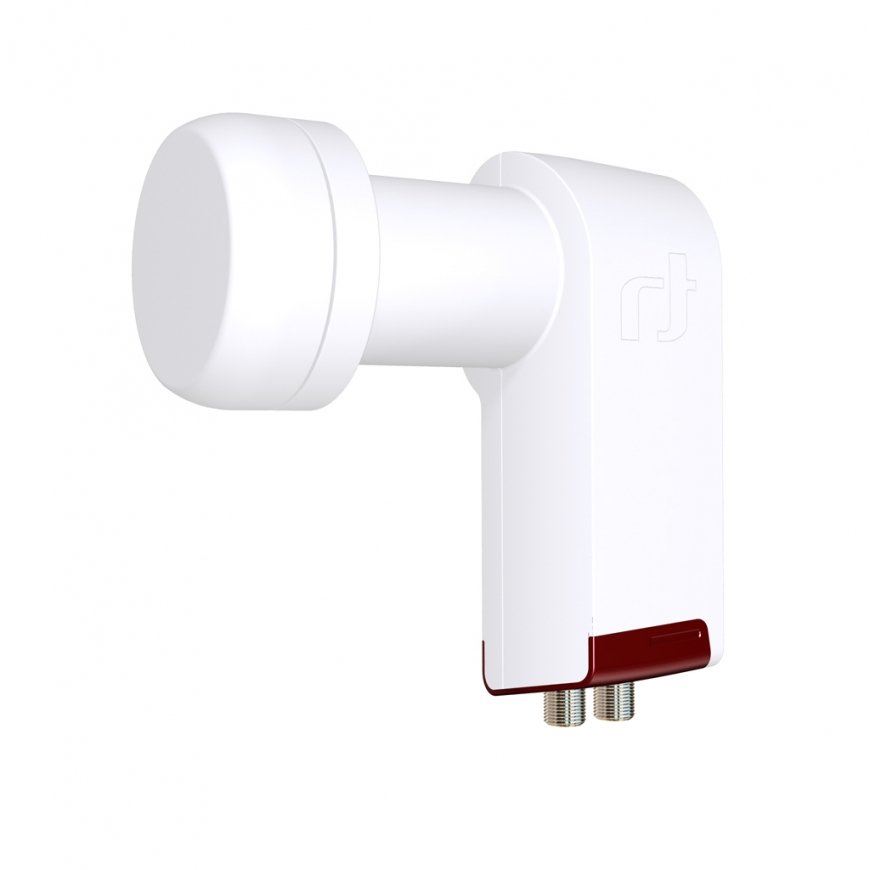

Inverto IDLR-TWNL40-EXTND-OPP Low Noise Block downconverter (LNB) 11.7 - 12.75 GHz Red, White
19.62 €
2640141 3207
5453001045597
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities.It is designed to address the need to support multiple LNBs installations (on a single dish antenna). With this LNB it is possible to place two 40mm brackets on its prolonged neck. This LNB enables the reception of signals from one satellite and its distribution to maximum two Set Top Boxes with Single Tuner (or one STB with Twin Tuner) and is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.Main Features
- Long Neck for Multi Satellite Reception Installations
- Low Phase Noise, DVB-S2 (HDTV) compliant
- Low Noise Figure
- Low Power Consumption
- High Cross Polarization Isolation
- High Frequency Stability
Features
| Product colour | Red; White |
| Weight | 181 g |
| Width | 59.5 mm |
| Depth | 118.5 mm |
| Height | 129 mm |
| Operating temperature (T-T) | -30 - 60 °C |
| RF ports quantity | 2 |
| Diameter | 5.95 cm |
| Power consumption | 180 mA |
| RF connector type | F |
| Output impedance | 75 Ω |
| Input frequency range | 11.7 - 12.75 GHz |
| High band output frequency range | 1100 - 2150 MHz |
| Low band output frequency range | 950 - 1950 MHz |
| Conversion gain | 55 dB |
| Noise figure | 0.7 dB |
| Feedhorn diameter | 4 cm |
| Output frequency range | 1100 - 2150 MHz |
| High band input frequency range | 11.7 - 12.75 GHz |
| Low band input frequency range | 10.7 - 11.7 GHz |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Image rejection | 40 dBmW |
| Temperature drift (±) | 3 MHz |
| Gain ripple (±) | 0.75 dB |
| Cross-polarization isolation | 22 dB |
| Local Oscillator (LO) phase noise (10 kHz) | -80 dBc/Hz |
| Initial accuracy (±) | 1 MHz |
| Control signal Cc (band switching) | 22 kHz |
| Supply voltage Ca (vertical polarization) | 11 - 14 V |
| Supply voltage Cb (horizontal polarization) | 16 - 20 V |
| Spurious emission | -60 dBmW |
| Compression point (1 dB) | 0 dBmW |
