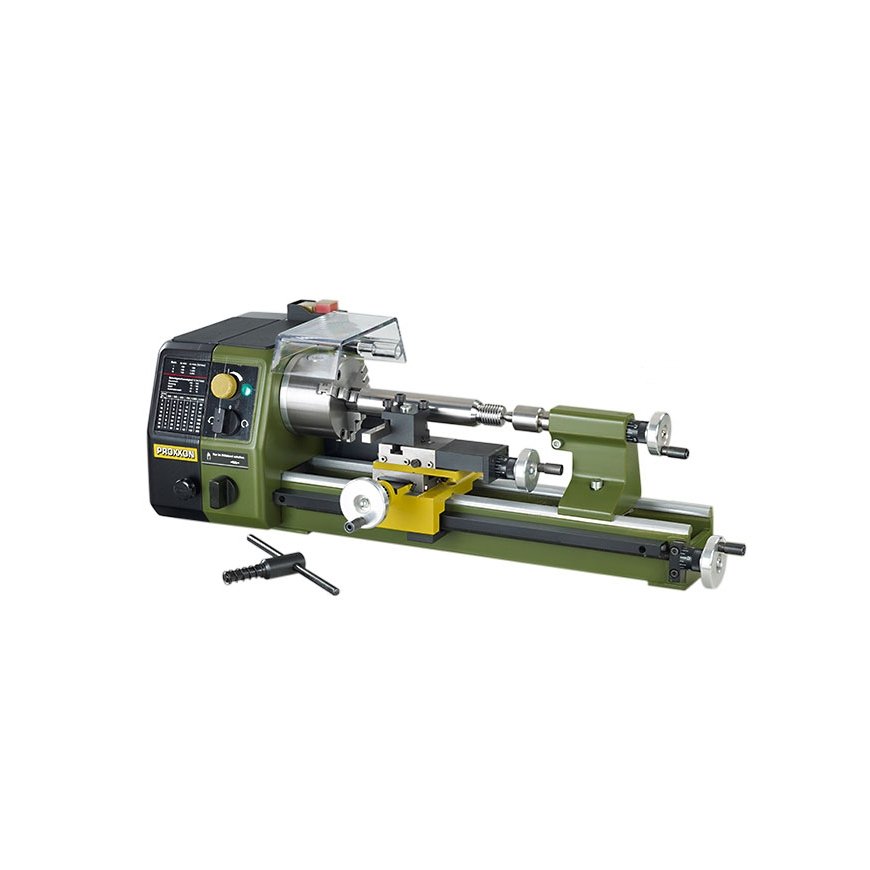

Proxxon PD 250/E lathe Metalworking
1 337.81 €
Monthly payment from 35,35 €
2624279 24002
4006274240025
Shipping 9-14 b.d.
You are interested in this product?
All about the product
For face, longitudinal and taper turning, thread-cutting. For machining steel, brass, aluminium and plastic. Mounting flange for fastening the mill/drill head PF 230.Centre distance 250mm. Swing 70mm. Height over cross slide 43mm.
Machine bed: Of cast iron, wide-legged shape and prism slides. For vibration-free work even at high loads. Rear flange for mounting the mill/drill head PF 230. Covered lead spindle.
Headstock: Of die-cast aluminium. Precision bearing mounted main spindle (run-out without chuck 1/100mm) with 10.5mm opening. Chuck side 70mm hollowed to 14mm. With MK 2 bore. Rotary switch for engaging the automatic feed via lead and feed spindle (optionally 0.05 or 0.1mm/rev.).
Tailstock: Of die-cast aluminium. Sleeve Ø 20mm, retractable up to 30mm. With millimetre scale, MK 1 bore and live centre.
Support: Bed carriage made of die-cast zinc. Cross slide and top slide of steel (adjustment 60 or 45mm). Turning tool post for cutting tools size 8 x 8mm.
Drive: Quiet DC special motor with 3-stage belt drive for 300 - 900 and 3,000rpm. With additional speed control (full-wave electronics) continuously adjustable to 100 - 300 or 1,000rpm, depending on belt ratio. Clockwise - anticlockwise rotation. Main switch with emergency stop function and restart protection.
Lathe chuck: High quality 3-jaw chuck as per DIN 8386 Class 1 (concentricity tolerance 0.04mm). Capacity through reversing jaws from 2 - 75mm. Including lathe chuck guard with safety shutdown.
Handwheels: Of aluminium, with adjustable scale ring (1 division = 0.05mm, 1 revolution = 1mm).
Thread cutting device: With change gears for left-hand and righthand threads of the most important metric pitches (0.5 - 0.625 - 0.7 - 0.75 - 0.8 - 1 - 1.25 - 1.5mm).
Other technical data: 220 - 240V. 50/60Hz. Size L 560, W 270, H 170mm. Weight approx. 12kg.
Features
| Product colour | Black; Yellow; Green |
| Weight | 12 kg |
| Width | 270 mm |
| Depth | 560 mm |
| Height | 170 mm |
| Purpose | Metalworking |
| AC input voltage | 220-240 V |
| AC input frequency | 50 - 60 Hz |
| Rotational speed (max) | 3000 RPM |
| Rotational speed (min) | 300 RPM |
| Distance between centers | 25 cm |
| Lathe bed material | Cast iron |
| Cross slide travel | 4.3 cm |
| Cutting thread (min) | 0.5 mm |
| Cutting thread (max) | 1.5 mm |
| Number of cutting thread steps | 7 |
| Run-out without chuck | 1/100 mm |
| Chuck number of jaws | 3 |
| Feed speed (min) | 0.05 mm/revolution |
| Feed speed (max) | 0.1 mm/revolution |
