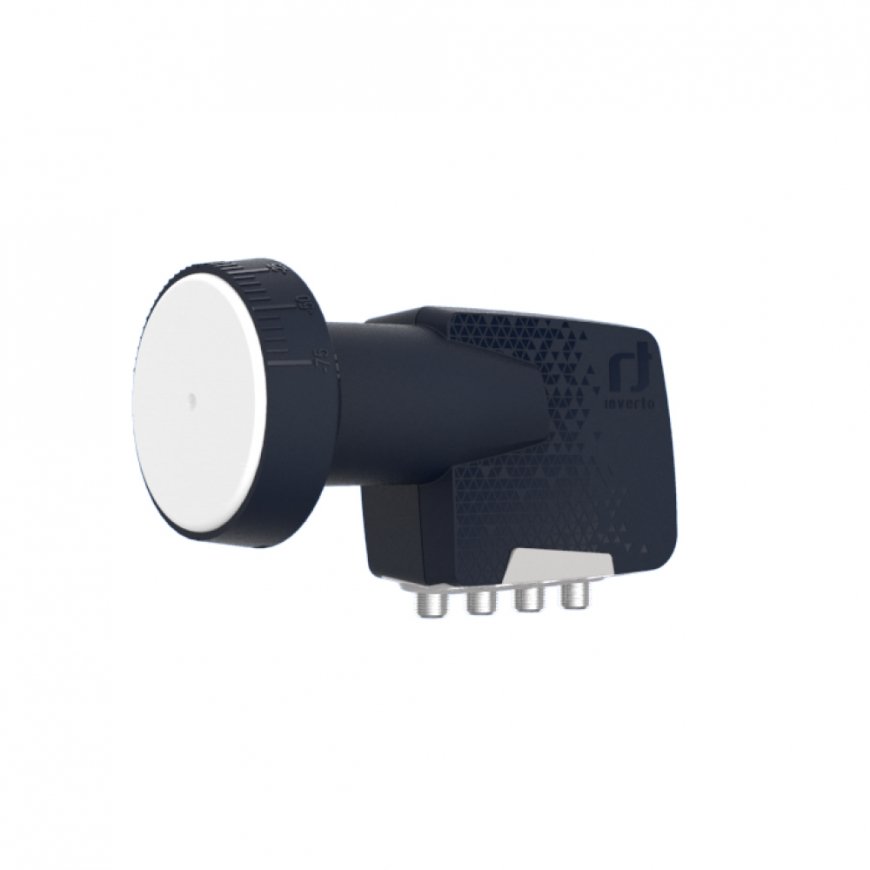

Inverto IDLB-QTL410-PREMU-OPN Low Noise Block downconverter (LNB) 10.7 - 12.75 GHz Black, White
49.00 €
Monthly payment from 2,16 €
2598849 5448
5453002613276
Shipping 4-6 b.d.
You are interested in this product?
All about the product
Specifically designed and selected to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. The LNB enables the reception of Satellite TV and radio from one satellite and its distribution via a Multiswitch to numerous Set-top boxes. The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.Features
| Product colour | Black; White |
| Weight | 221 g |
| Package width | 155 mm |
| Package depth | 91 mm |
| Package height | 76 mm |
| Package weight | 284 g |
| Operating temperature (T-T) | -35 - 60 °C |
| Quantity | 1 |
| Power consumption | 240 mA |
| Voltage Standing Wave Ratio (VSWR) | 2.5 : 1 |
| Output impedance | 75 Ω |
| Input frequency range | 10.7 - 12.75 GHz |
| Conversion gain | 55 dB |
| Noise figure | 0.2 dB |
| Output frequency range | 950 - 2150 MHz |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Image rejection | 40 dBmW |
| Temperature drift (±) | 1 MHz |
| Gain ripple (±) | 0.6 dB |
| Cross-polarization isolation | 22 dB |
