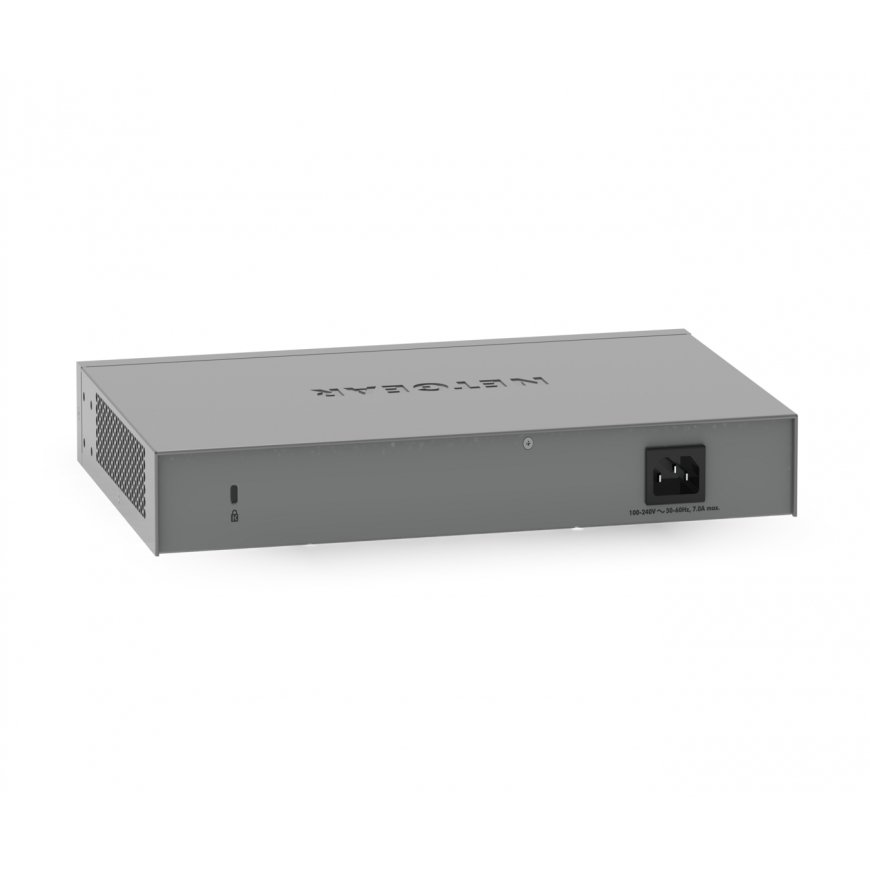

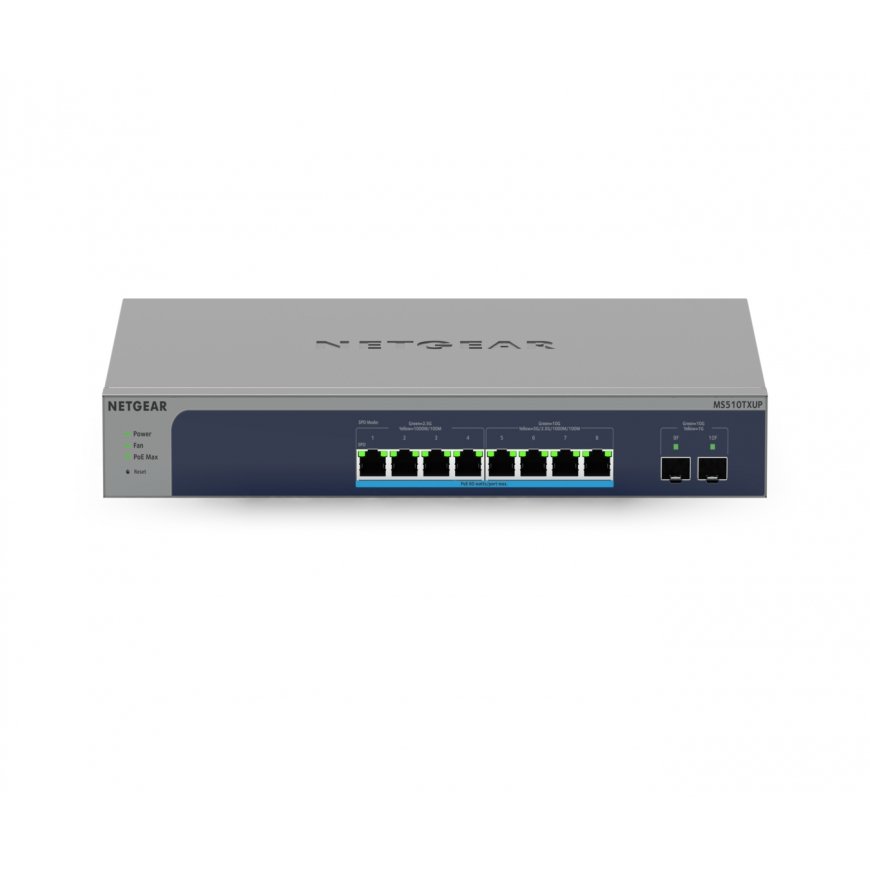

NETGEAR MS510TXUP network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey, Blue
768.16 €
Monthly payment from 20,68 €
2595819 MS510TXUP
0606449152395
Shipping 4-6 b.d.
You are interested in this product?
All about the product
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch comes with 2 fiber 10G uplinks. Organizations that buy infrastructure for the long term and want future proofing can now deploy denser PoE+ and even PoE++ devices with 295W power budget and 2.5G / 5G /10G speeds. The ideal companion to the MS510TXUP is the NETGEAR WAX610 WiFi 6 Access Point that features a 2.5G Ethernet port.MS510TXUP provides a total PoE budget of 295W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. The switch provides four auto-adapt multispeed Gigabit PoE+/PoE++ RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit PoE+/PoE++ RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
Network | |
| Networking standards | IEEE 802.1D, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1s, IEEE 802.1w |
| Flow control support | Yes |
| Ethernet LAN data rates | 100, 1000, 2500, 10000, 5000 |
| Full duplex | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Port mirroring | Yes |
| Number of VLANs | 256 |
Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
Security | |
| Security algorithms | SSL/TLS, HTTPS |
| MAC address table | 32000 entries |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Protocols | |
| Management protocols | SNMP v1/v2c,SNMP v3 |
Design | |
| LED indicators | Power, Activity, Speed |
| Product colour | Grey, Blue |
Features | |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
Power | |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions | |
| Width | 330 mm |
| Depth | 206 mm |
| Height | 43 mm |
Other features | |
| Rack mounting | Yes |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
