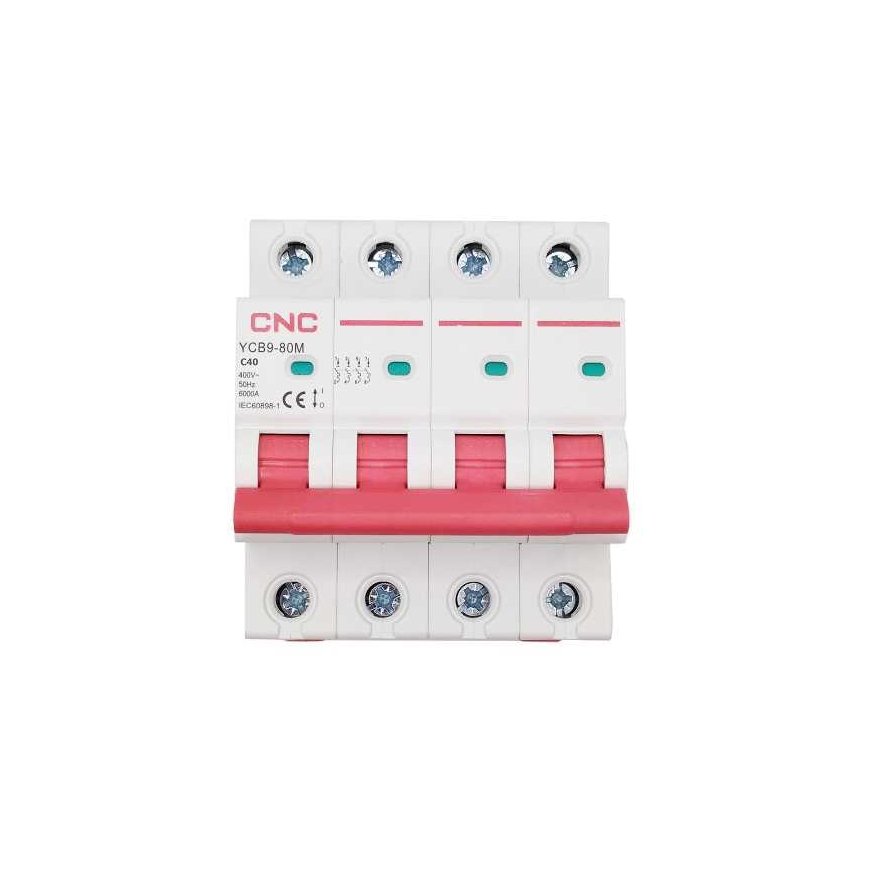

CNC Automatic switch, 4P, 40A, class C, 6kA
29,00 €
2595028 NV821631
6942034316167
Shipping 2-4 days
You are interested in this product?
Features:
Overload and short circuit protection.
Secure terminal block.
Resistance to flame, high temperature and shock.
Contact position indication (red color indicates that the contact is closed, green - that it is open).
Technical data:
Number of contacts: 4.
Nominal current (In): 40 A.
Class: C.
Rated voltage (Ue): AC 400 V.
Insulation voltage (Ui): 500 V.
Frequency: 50/60 Hz.
Rated short-circuit capacity (Icu): 6000 A.
Nominal impulse withstand voltage (Uimp): 6000 V.
Mechanical life: 20000 cycles.
Electrical life: 8000 cycles.
Safety class: IP20.
Connection type: cable / pin-type busbar.
Wire/busbar cross-sectional area: up to 25mm² / 18-3 AWG.
Connection: from above and from below.
Installation: on DIN rail EN 60715 (35mm).
Operating temperature: -5°C~+40°C (when average temperature <35°C).
Storage temperature: -25°C~+70°C.
Dimensions: 85.5 x 78.8 x 71.5 mm.
Standards: IEC 60898-1 / EN 60898-1.
Warranty: 24 months
