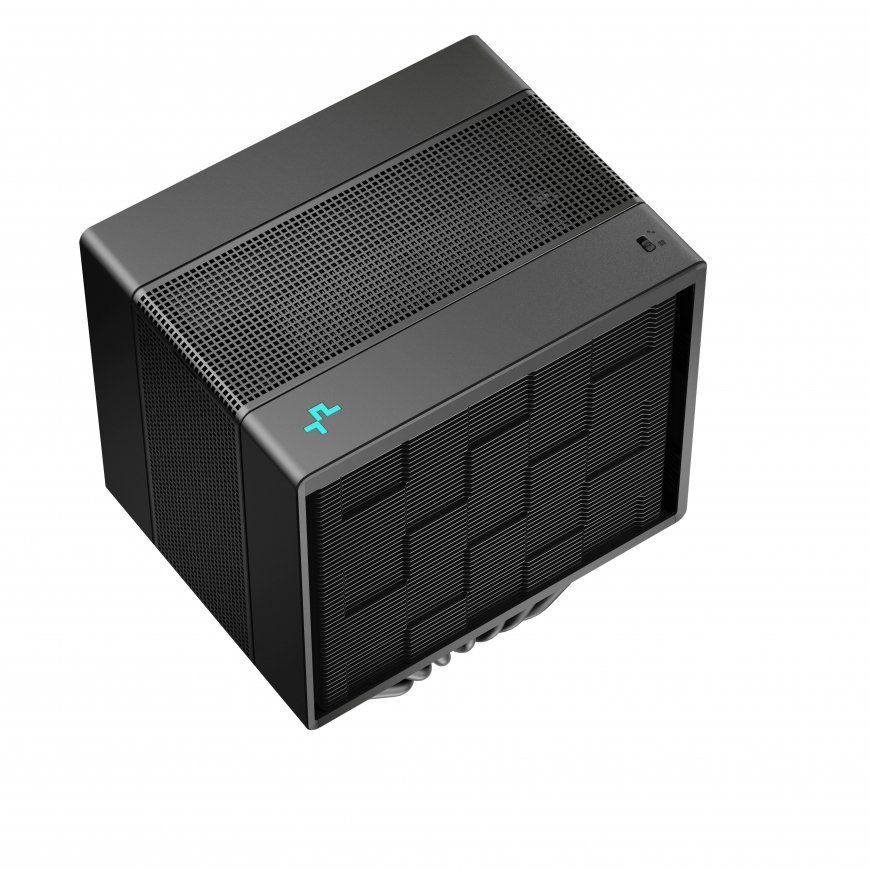

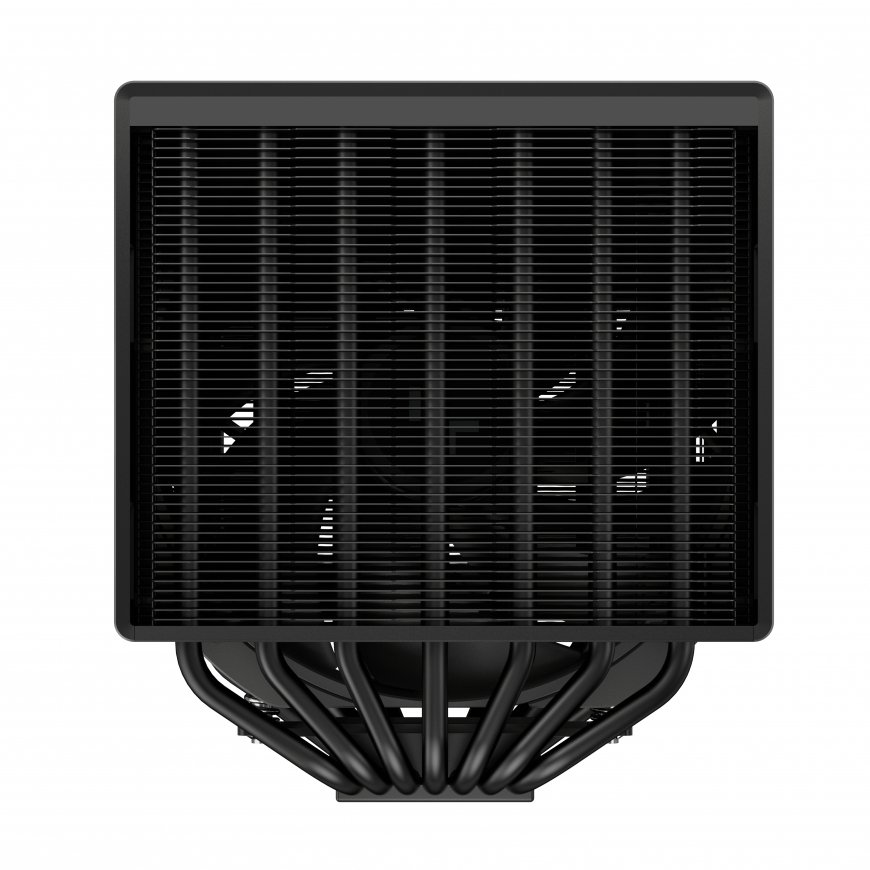

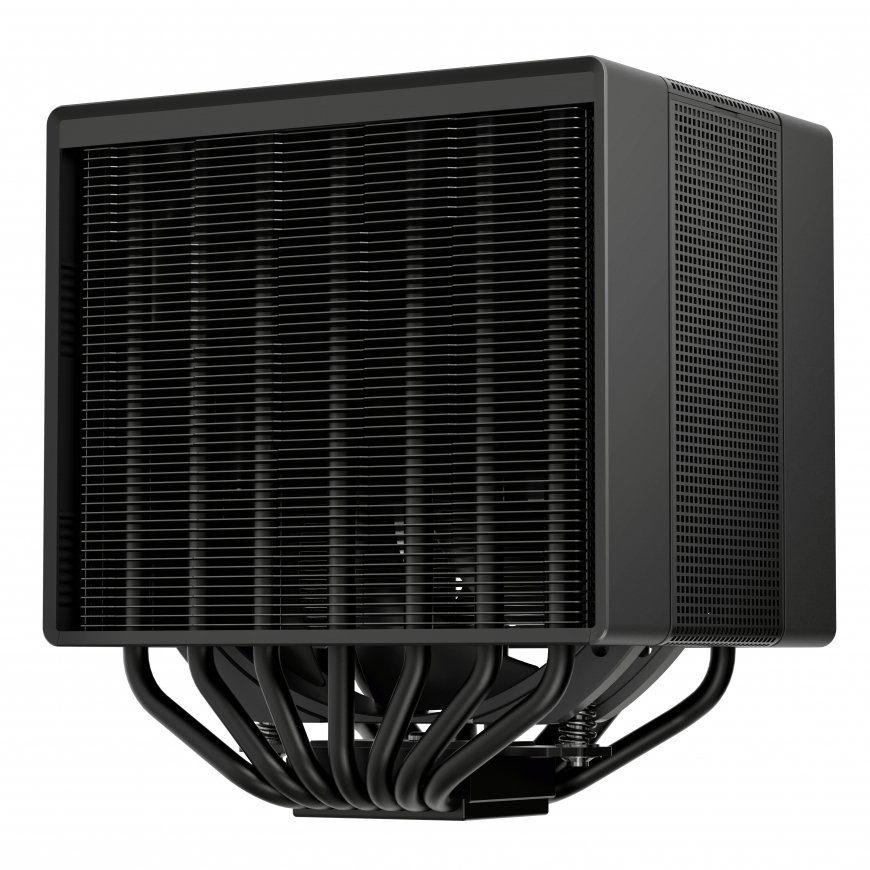

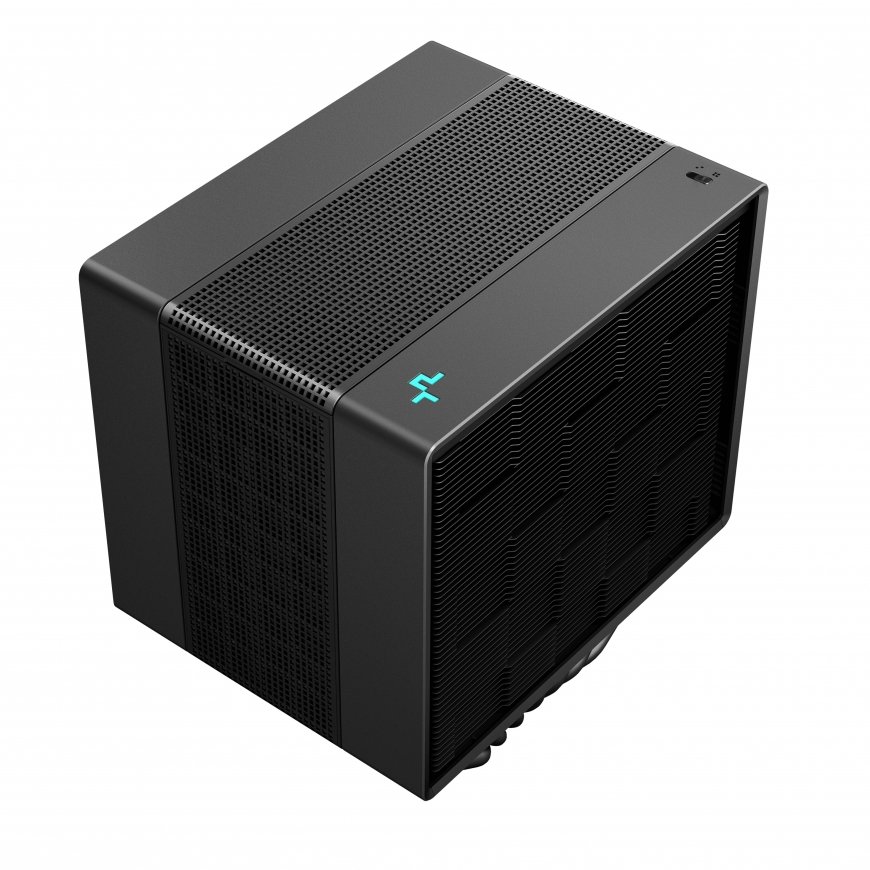

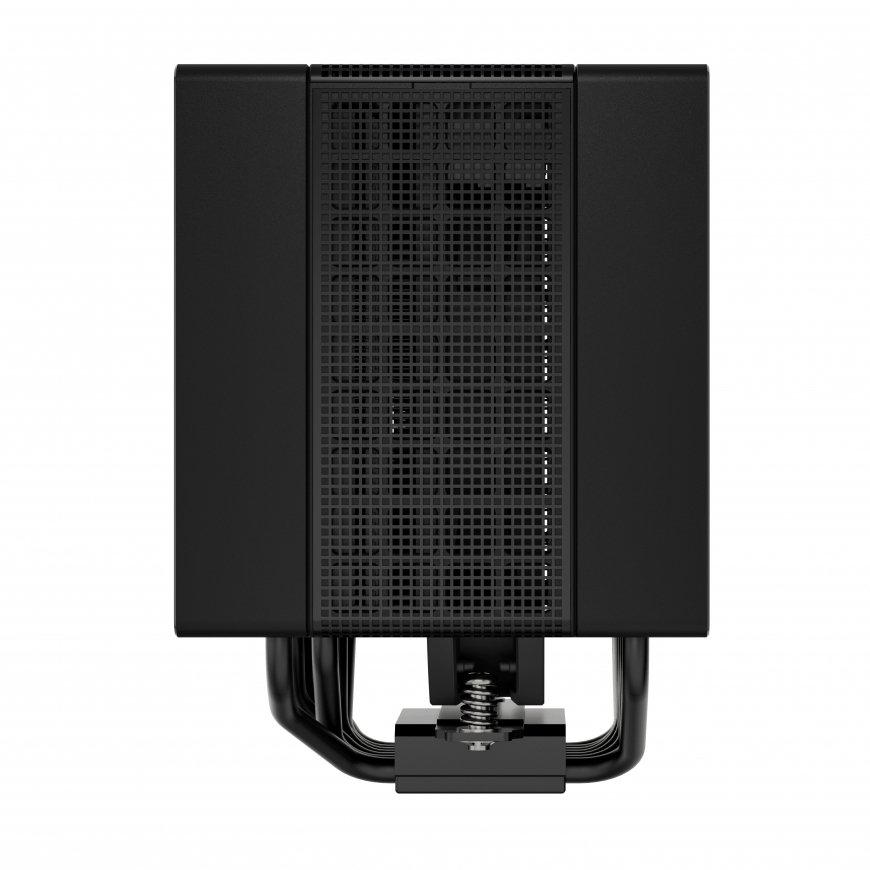

DeepCool ASSASSIN 4S Processor Air cooler 14 cm Black 1 pc(s)
102.14 €
Monthly payment from 3,53 €
2592612 R-ASN4S-BKGPMN-G
6933412728696
Shipping 3-7 b.d.
You are interested in this product?
All about the product
ASSASSIN 4SThe ASSASSIN 4S provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler.
ASSASSIN 4S
SOPHISTICATED ELEGANCE
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN 4S is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN 4S can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!
The shell of ASSASSIN 4S is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM
A key factor in the ASSASSIN 4S's extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN 4S, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Performance | |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), Socket AM4, LGA 2011-v3 (Socket R), LGA 2066, LGA 1200 (Socket H5), LGA 1700, Socket AM5 |
| Type | Air cooler |
| Fan diameter | 14 cm |
| Maximum airflow | 61.25 cfm |
| Minimum air pressure | 2.46 mmH2O |
| Maximum air pressure | 3.76 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Fan noise level (min) | 22.6 dB |
| Fan noise level (max) | 29.3 dB |
| Suitable location | Processor |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of heat pipes | 7 |
| Fan connector | 4-pin |
Power | |
| Power consumption (typical) | 3.6 W |
| Rated voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Fan power consumption | 2.4 W |
Weight & dimensions | |
| Weight | 1.38 kg |
| Height | 164 mm |
| Width | 147 mm |
| Depth | 116 mm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Radiator width | 11 cm |
| Radiator depth | 14 cm |
| Radiator height | 16 cm |
Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Adapter frame included | Yes |
