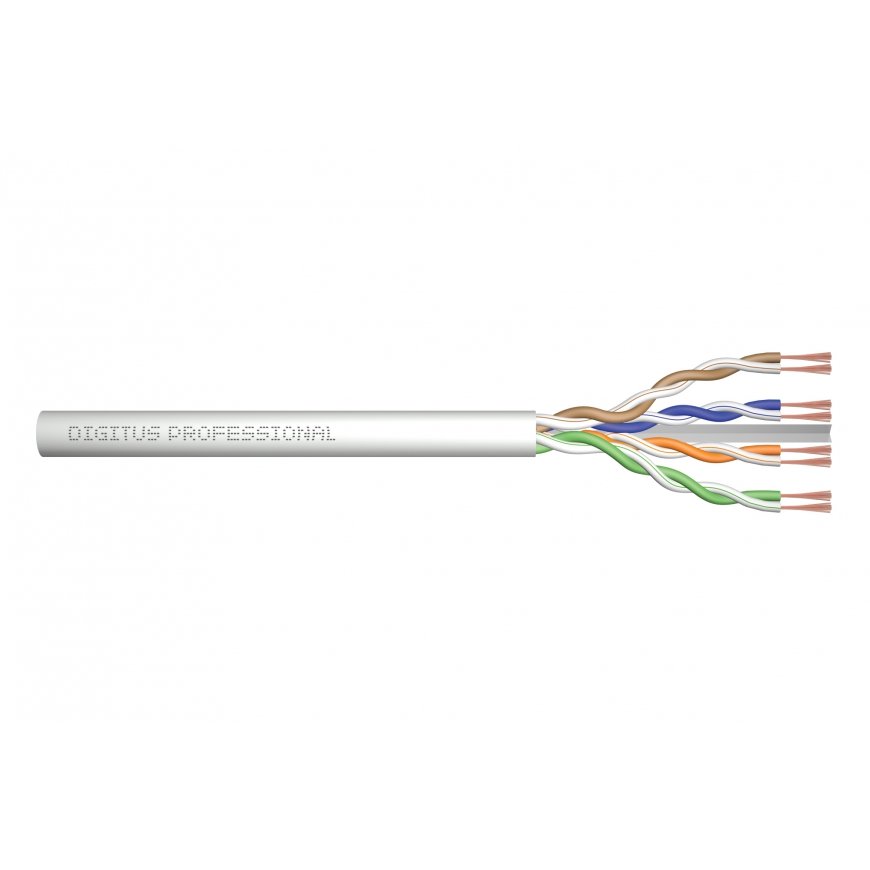

Digitus CAT 6 U/UTP twisted pair patch cord, raw
46,33 €
46,08 €
Monthly payment from 2.09 €
2586973 DK-1613-P-1
4016032425939
2026-07-22
You are interested in this product?
- Suitable for direct assembly of RJ45 connectors in order to produce patch cords
- Suitable for installations of class E cable lines, 250 MHz
- According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-6-1
- Conductor: Copper (Cu)
- PoE+ ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
Features | |
| Cable length | 100 m |
| Cabling technology | 10GBase-T |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Networking standards | IEEE 802.3, IEEE 802.5 |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 26/7 |
| Frequency | 250 MHz |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Product colour | Grey |
| Connector 1 gender | No |
| Connector 2 gender | No |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85444920 |
| Harmonized System (HS) code | 84733080 |
Packaging data | |
| Package height | 90 mm |
| Package width | 270 mm |
| Package weight | 3.17 kg |
| Package depth | 270 mm |
| Package type | Box |
| Package volume | 6561 cm³ |
Weight & dimensions | |
| Outer diameter | 5 mm |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 75 °C |
Other features | |
| Input impedance | 100 Ω |
| Category | 6 |
