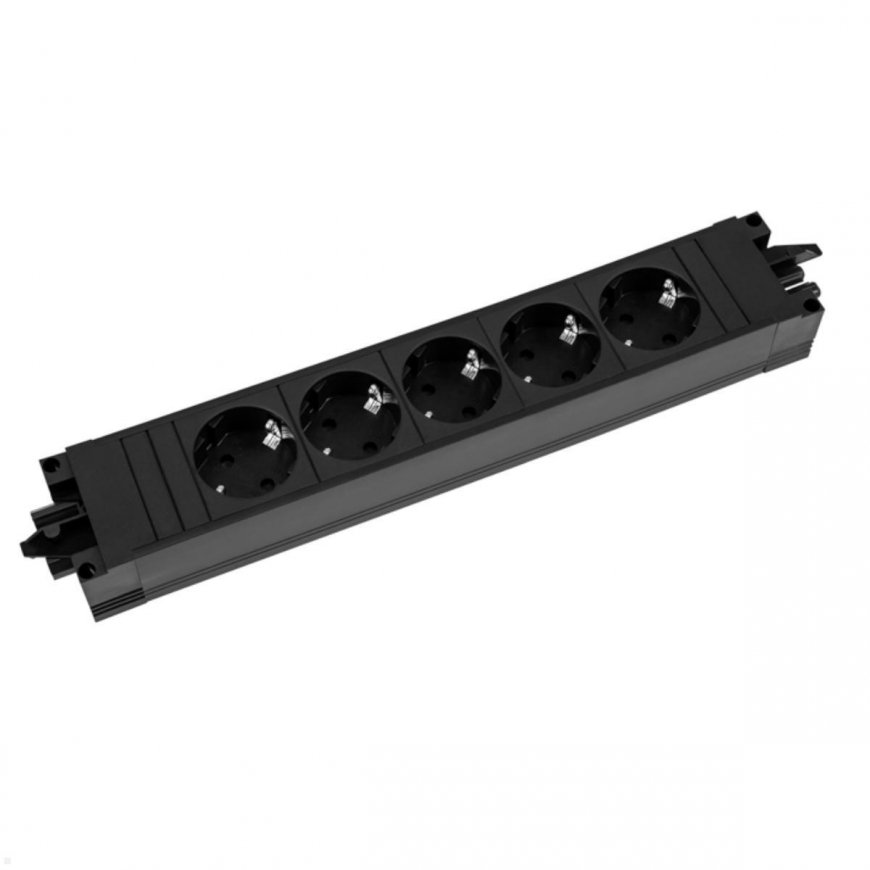

Bachmann 906.18821 socket-outlet Type F Black
29.00 €
2584326 906.18821
4057298150272
Shipping 13-14 b.d.
You are interested in this product?
All about the product

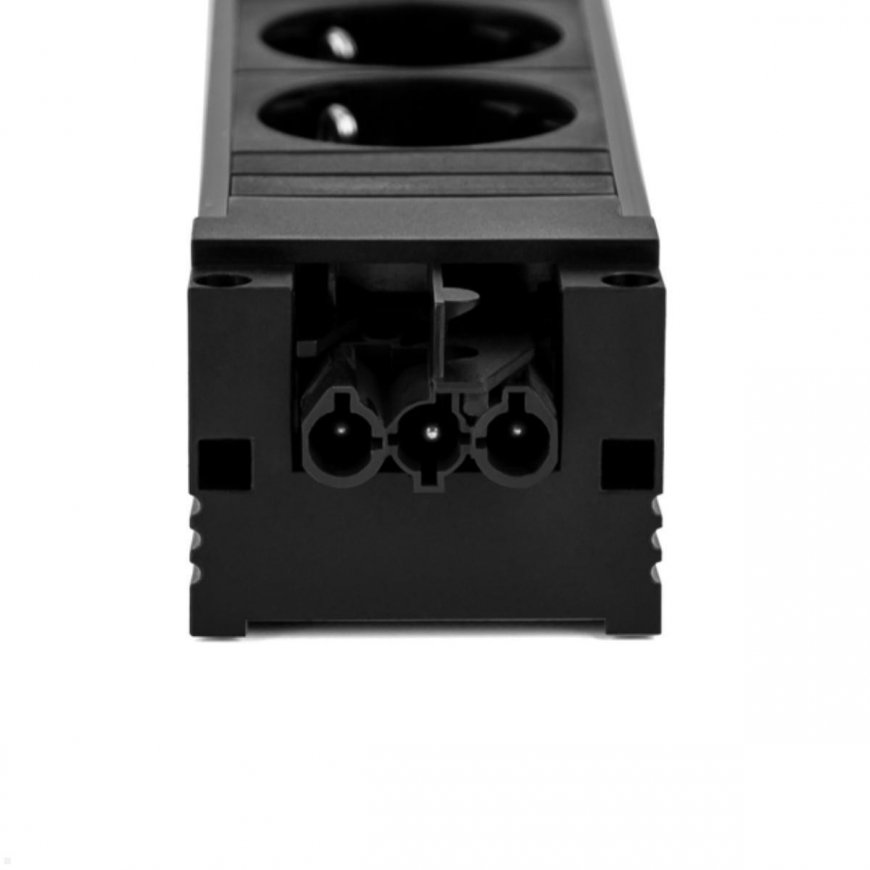

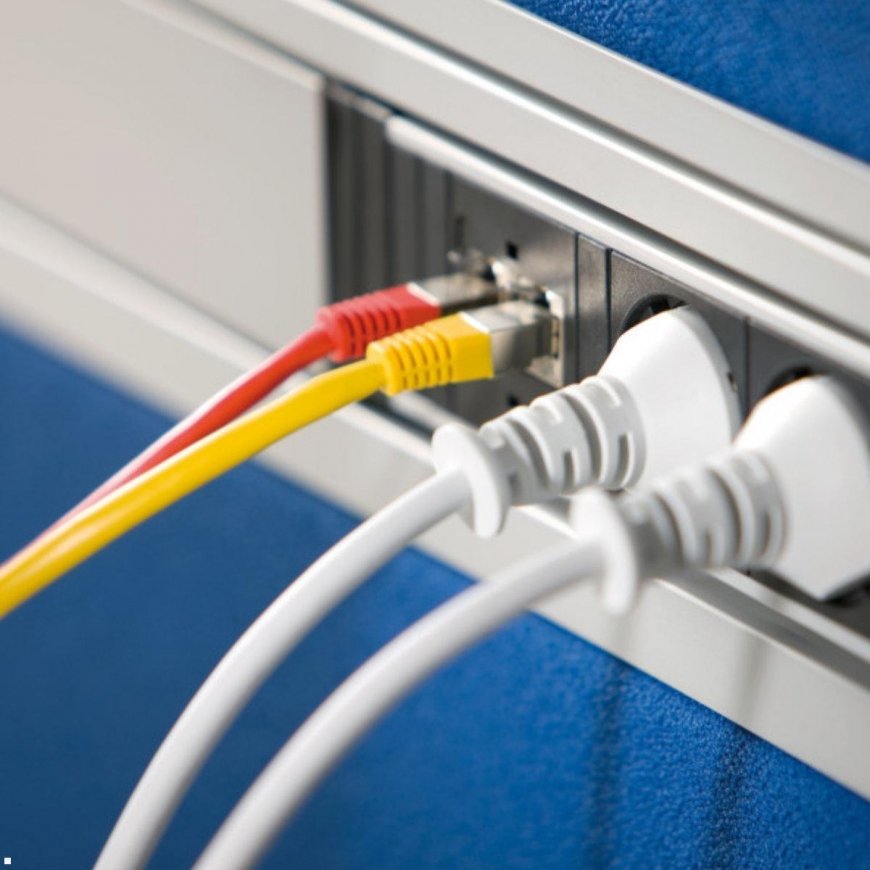

The modular multiple socket strip STEP BASE (906.18821) from the Bachmann STEP series implements the principle of adaptability with absolute consistency. The STEP system is ideal for flexible energy and data supply in partition wall systems, at workplaces, in double floors and other connection applications. Thanks to its modularity, the STEP socket strip offers almost limitless possibilities. It has a power input and a power output, which are each integrated into the end caps on the front. For the power supply, it is equipped with a Wieland GST18i3 plug and a GST18i3 coupling as standard. The device cable can be purchased separately to allow for different cable entries. The multiple sockethas 5 sockets with earthing contact and the central insert of the strip is rotated by 35 degrees to make it easier to insert wide plugs. Permanently installed devices such as a PC, monitor, printer, etc. can be connected to the socket bar.Features
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Width | 315 mm |
| Depth | 44 mm |
| Height | 52 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 350 mm |
| Package depth | 50 mm |
| Package height | 40 mm |
| Package weight | 446 g |
| Protection features | Dust resistant |
| Rated voltage | 250 V |
| Rated current | 16 A |
| Suitable location | Universal |
| Sustainability compliance | Yes |
| Surface finish | Matt |
| Frame | Yes |
| Socket type | Type F |
| Sockets quantity | 5 |
| Rated frequency | 50 Hz |
| Compliance certificates | RoHS; REACH |
