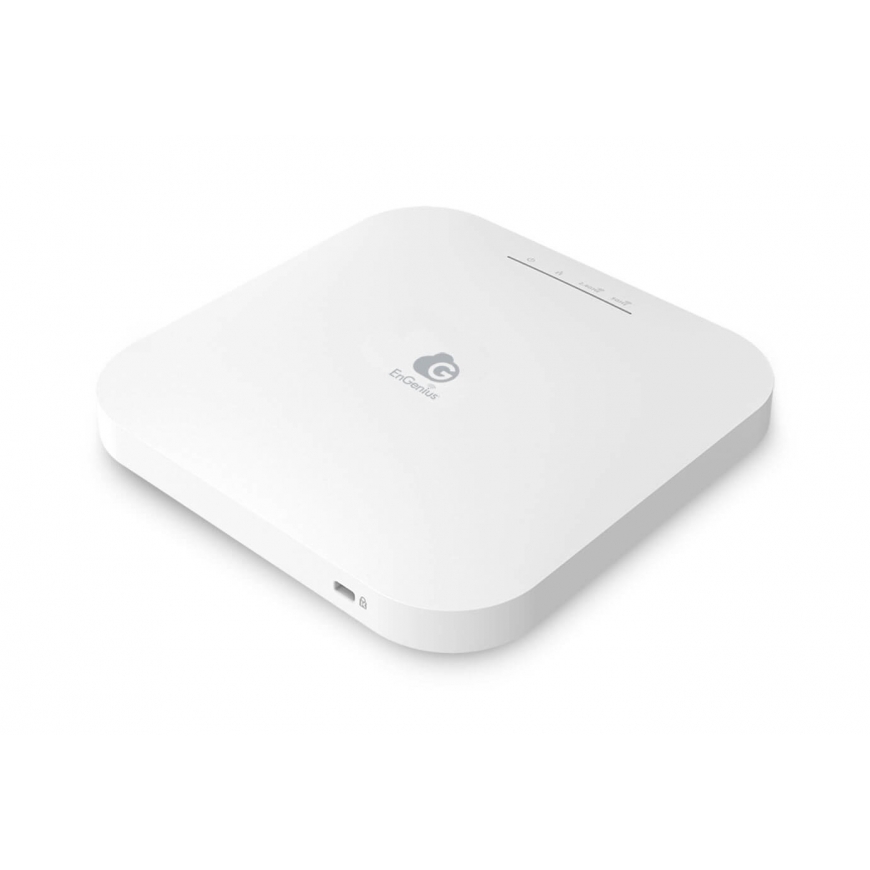

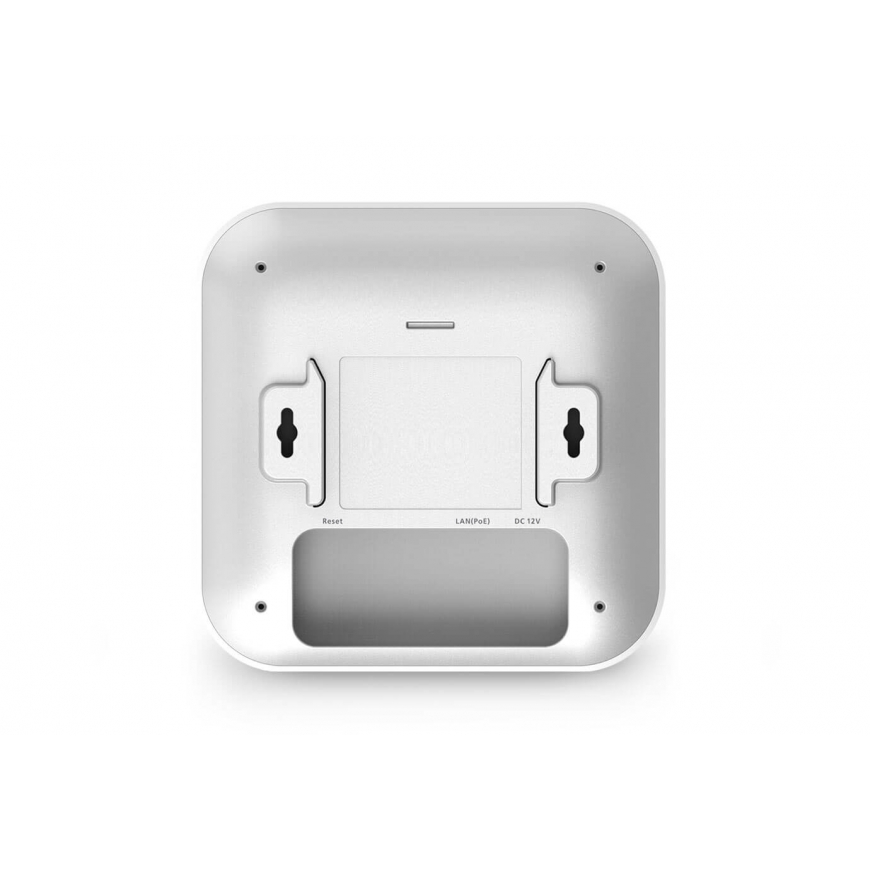

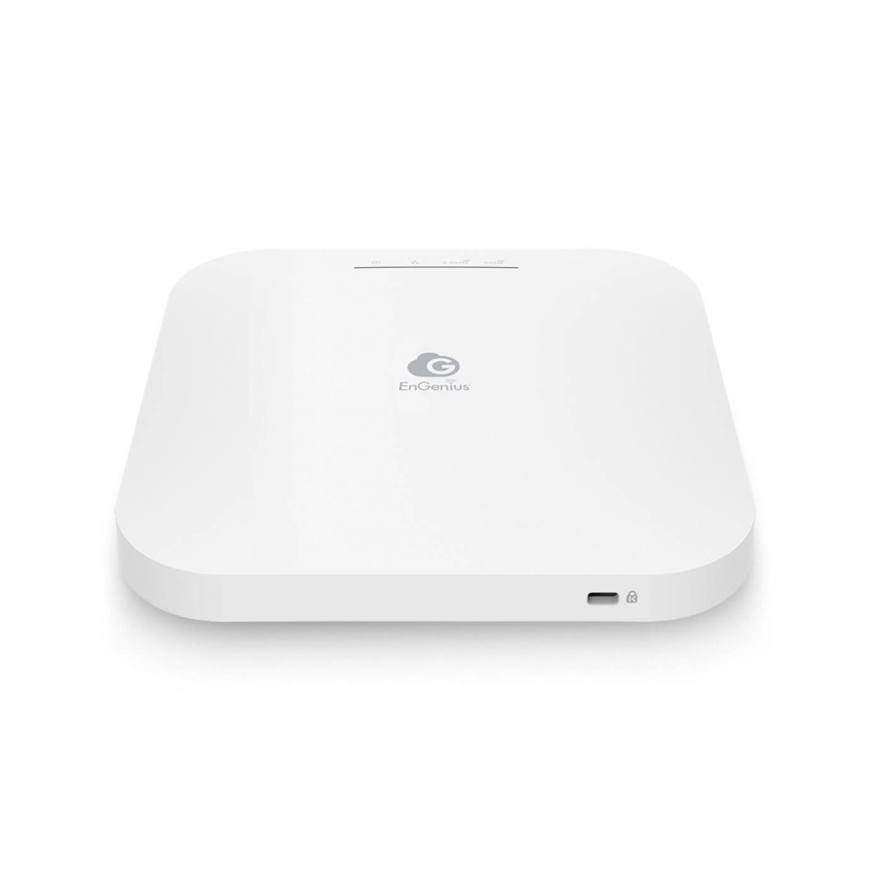

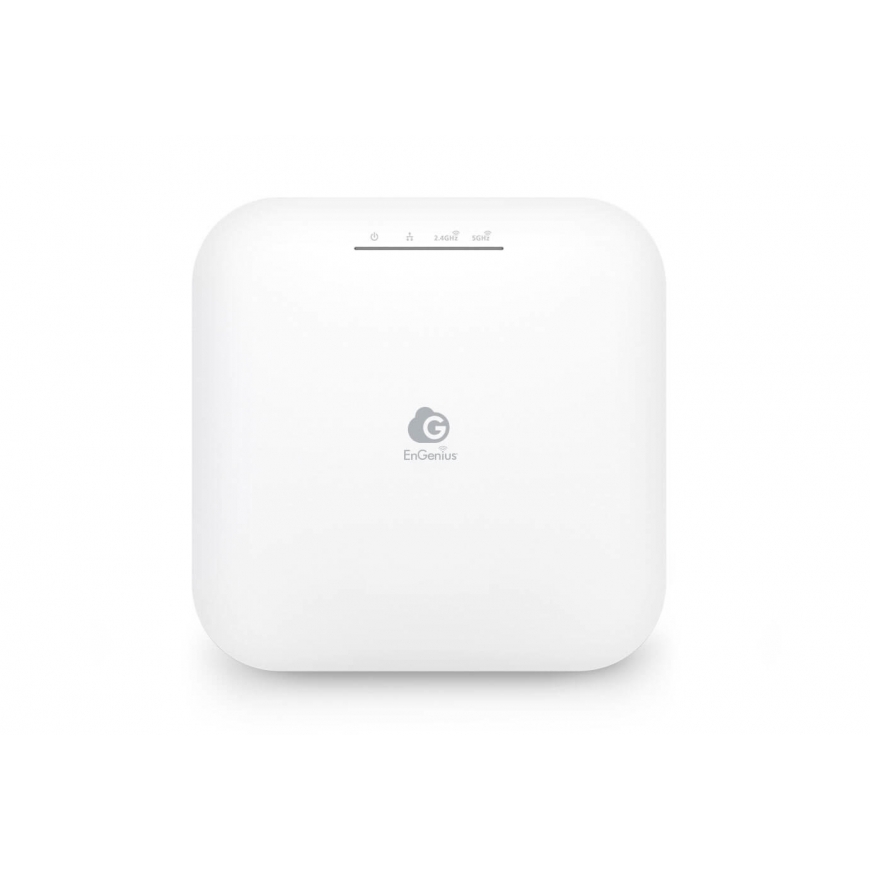

EnGenius Cloud Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.af 3dBi ia
267,88 €
267.02 €
Monthly payment from 7,78 €
2582623 ECW220
4711488350087, 0655216009608, 4713361934933
Shipping 11-16 b.d.
You are interested in this product?
All about the product
EnGenius Cloud Managed Wi-Fi 6 2×2 Indoor Access Point ECW220 supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 1,200 Mbps (5 GHz), and up to 574 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, CCK, BPSK, QPSK, 256-QAM, 1024-QAM |
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11e |
| Ethernet LAN data rates | 10, 100, 1000 |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Management features | |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO | Yes |
Security | |
| Security algorithms | WPA2-PSK, SSH, WPA3, WPA2-AES |
| MAC address filtering | Yes |
Protocols | |
| Management protocols | SNMP |
Design | |
| LED indicators | Yes |
| Product colour | White |
Antenna | |
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 4 |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
Power | |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.2 mm |
| Weight | 382 g |
Packaging data | |
| Package width | 205 mm |
| Package depth | 83 mm |
| Package height | 205 mm |
| Package weight | 603 g |
Other features | |
| Frequency band | 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Maximum data transfer rate | 1200 Mbit/s |
Certificates | |
| Certification | FCC, CE, IC |
Logistics data | |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 7.2 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
