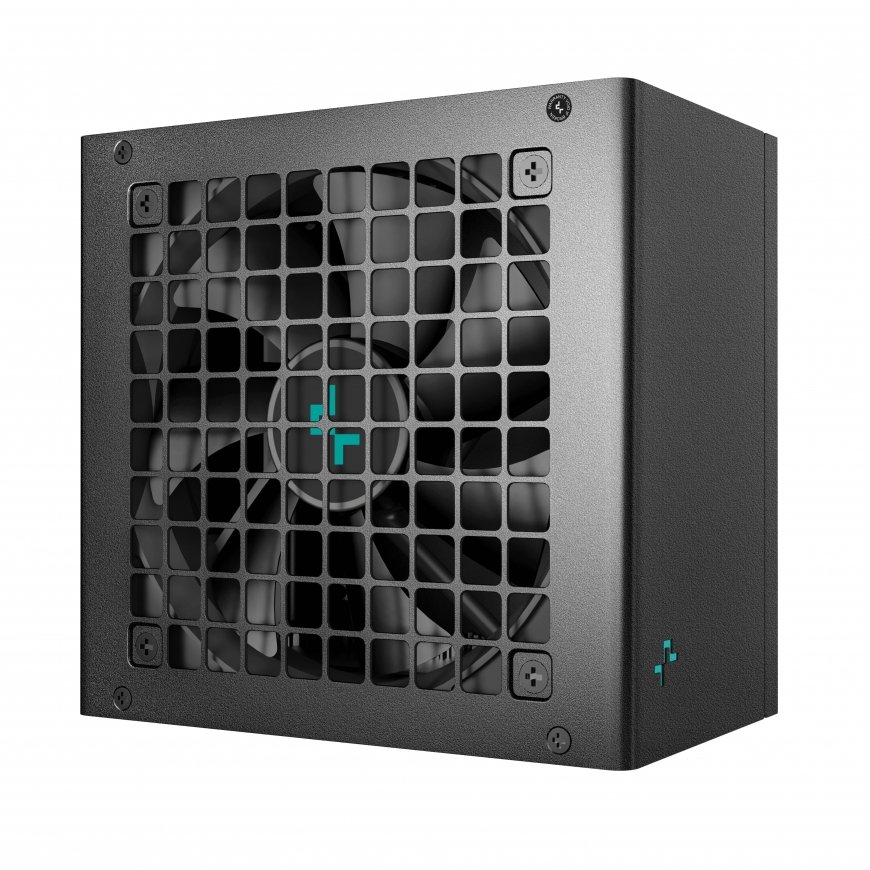

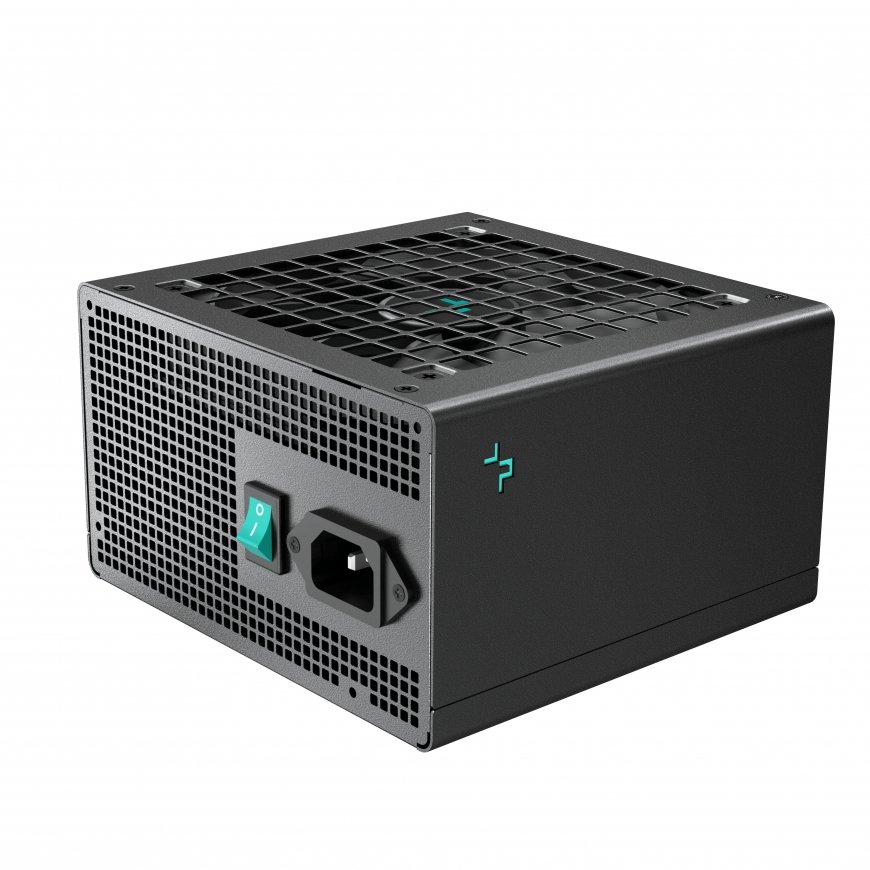

DeepCool PN850M power supply unit 850 W 20+4 pin ATX ATX Black
118,18 €
116.18 €
Monthly payment from 3,89 €
2569247 R-PN850M-FC0B-EU
6933412719564
Shipping 1-2 b.d.
You are interested in this product?
All about the product
PN850MThe DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.
PN850M
NATIVE ATX3.1
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850M provides up to 600W for modern GPUs.

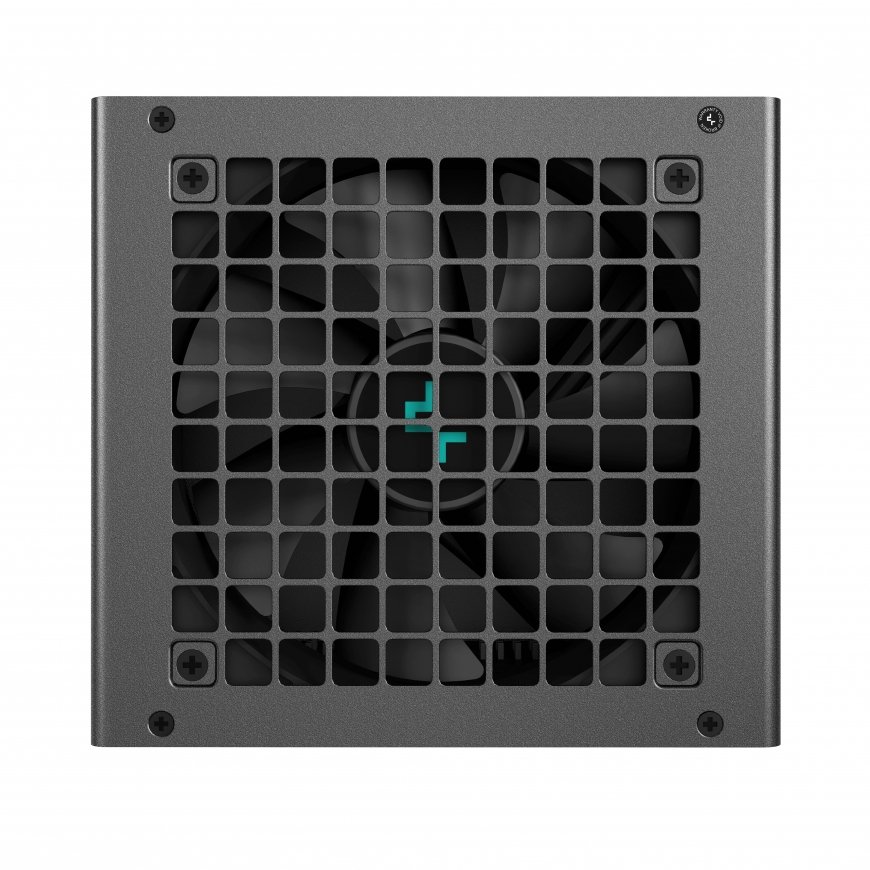

DYNAMIC FDB FAN
The PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850M will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN850M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

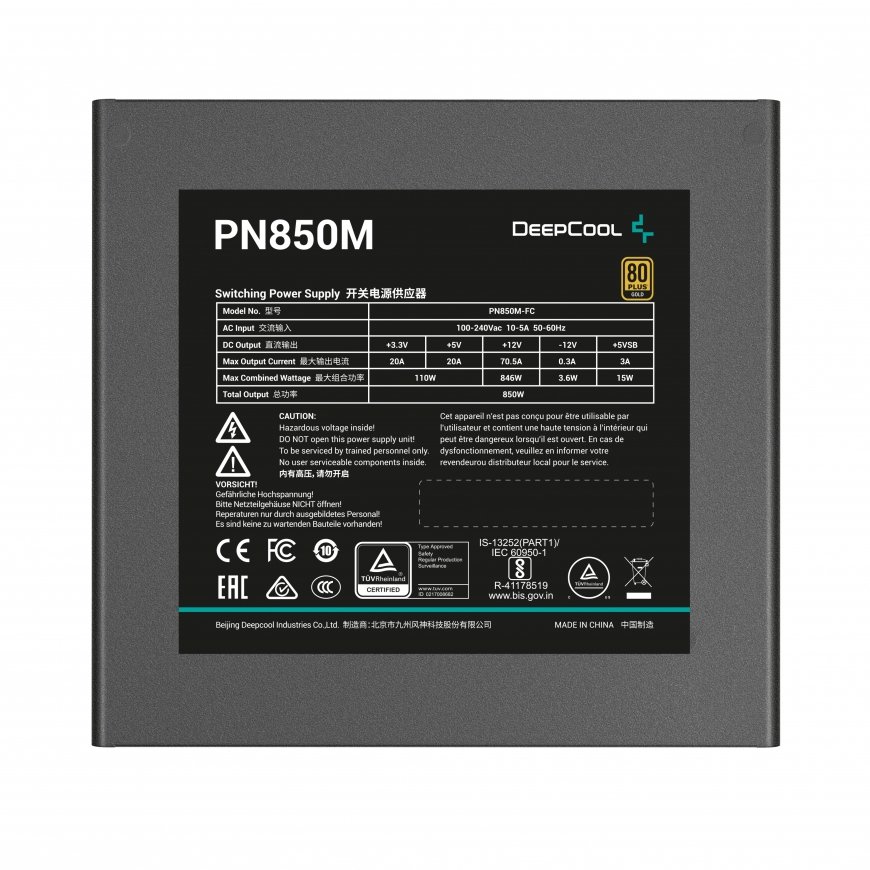

Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 10 - 5 A |
| Power protection features | Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge protection, No load operation, Surge & inrush protection (SIP) |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 850 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |

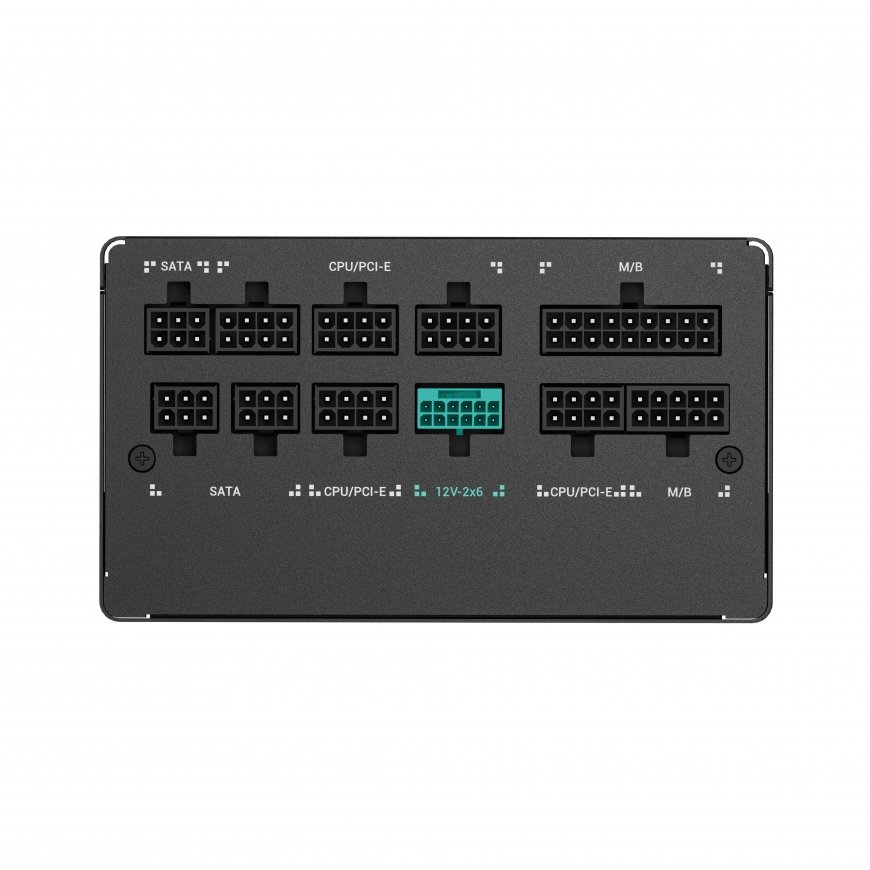

Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 450, 550, 750, 650 |
| Peripheral (Molex) power cable length | 850 mm |
| CPU power cable length | 70 cm |
| PCI Express power connectors (16-pin) | 1 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP, Triman |
Packaging data | |
| Package type | Box |
Packaging content | |
| Cables included | AC |
| Cable tie(s) included | Yes |
Certificates | |
| Compliance certificates | CE, RoHS, WEEE, Federal Communications Commission (FCC), EAC, RCM, CCC |
