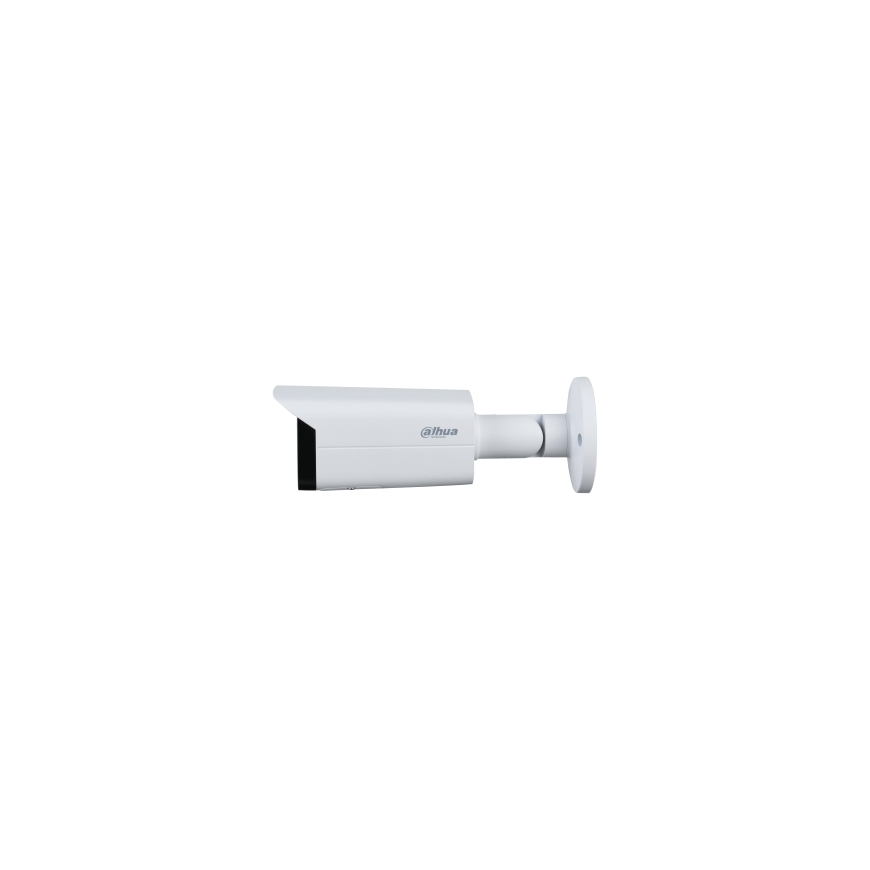

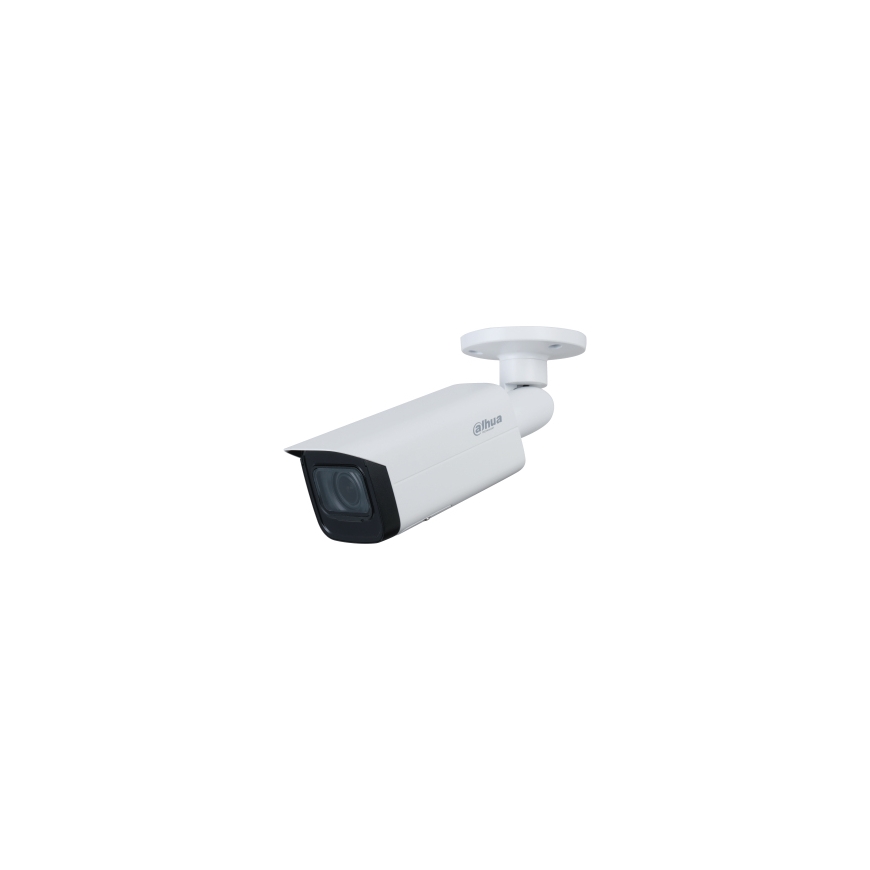

Dahua Technology Entry IPC-HFW1230T-ZS-S5 security camera
216,32 €
Monthly payment from 6.47 €
2558944 IPC-HFW1230T-ZS-S5
6923172524959
Shipping 2-3 b.d.
You are interested in this product?
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving target.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67,wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Performance | |
| Certification | CE-LVD: EN60950-1, FCC: 47 CFR FCC Part 15, Subpart B, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Maximum operating distance | 50 m |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Auto pan mode | Yes |
Design | |
| Mounting type | Ceiling/Wall/Pole |
| International Protection (IP) code | IP67 |
| Product colour | Black, White |
| Form factor | Bullet |
Camera | |
| Minimum illumination | 0.0005 lx |
| Camera shutter speed | 1/3 s–1/100,000 |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| White balance | Auto |
| Adjustment shutter speed | Auto/Manual |
| Camera pan control | Yes |
| Camera tilt control | Yes |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system | |
| Focal length range | 2.8 – 12 |
| Normal focusing range | 1.2 m |
| Detect distance (wide) | 48 m |
| Detect distance (tele) | 131 m |
| Observe distance (wide) | 19 m |
| Observe distance (tele) | 52 m |
| Recognize distance (wide) | 10 m |
| Recognize distance (tele) | 26 m |
| Identify distance (wide) | 5 m |
| Identify distance (tele) | 13 m |
| Closest focusing distance | 1.2 m |
| Identify distance | 13 m |
| Focus | Motorized/Manual |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Frame rate | 30 fps |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960 |
| Supported video modes | 720p, 1080p |
| Video compression formats | H.264, H.265, H.264+, H.265+ |
| Noise reduction | Yes |
| Video streaming | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate | H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Gain control type | Auto/Manual |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 2 MP |
Network | |
| Wi-Fi | No |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Number of users | 6 user(s) |
| Bluetooth | No |
Storage | |
| Internal memory | 128 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| ROM capacity | 16 MB |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Power | |
| Power consumption (typical) | 1.8 W |
| DC output voltage | 12 |
| Power consumption (max) | 4.3 W |
| Power consumption (Power over Ethernet (PoE)) | 5.5 W |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Weight | 860 g |
| Height | 244.1 mm |
| Diameter | 9.04 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 2 |
| Night vision | Yes |
| LED type | IR |
| Night vision distance | 50 m |
Packaging data | |
| Package weight | 1.12 kg |
